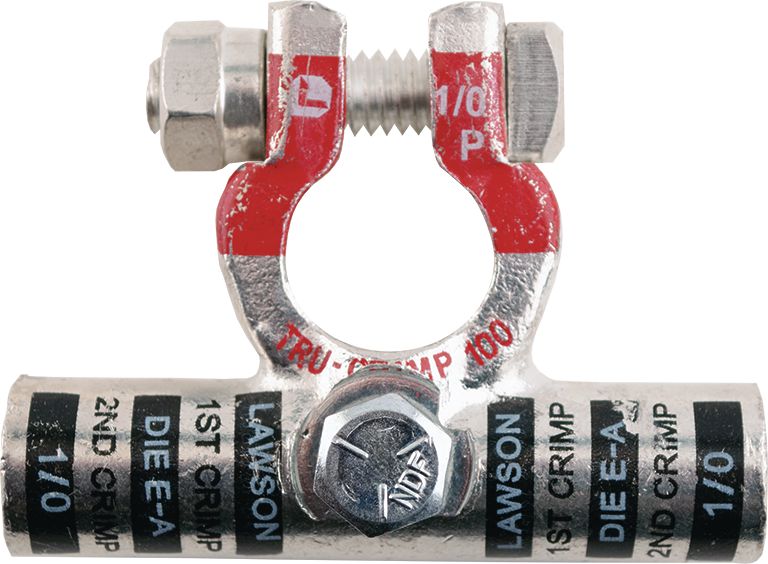

Battery Terminal 1/0 AWG Flag Positive
(Pack of
5.0)
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.
• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Frequently Bought Together
Heavy-Duty Battery Cable Butt Connector 1/0 AWG
Couldn't load pickup availability
Dual-Lok Battery Cable Lug 4/0 AWG Purple 1/4"
Couldn't load pickup availability
Dual-Lok Battery Cable Butt Connector 8 AWG
Couldn't load pickup availability
Insulform Heat Shrink Tubing 22 to 18 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
SuperNova® LED Cab Marker Lamp Yellow Small
Couldn't load pickup availability
Clearance/Marker LED Lamp Yellow
Couldn't load pickup availability
Stop/Tail/Turn Lamp Yellow
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/2" Body x 1/2" MNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/2" Body x 1/2" FNPT
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/2" Body x 3/8" FNPT
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Technical Specifications
| Item#: | 99923 |
|---|---|
| Style | Flag |
| Cable Gauge | 1/0 AWG |
| Color | Black |
| Polarity | Positive |
| Plating | Tinned |
| Type | Post-Top Battery Terminals |
| UNSPSC #: | 39121454 |
| TAA Compliant: | No |
| Weight: | 1.41 lb |
Product Restrictions
