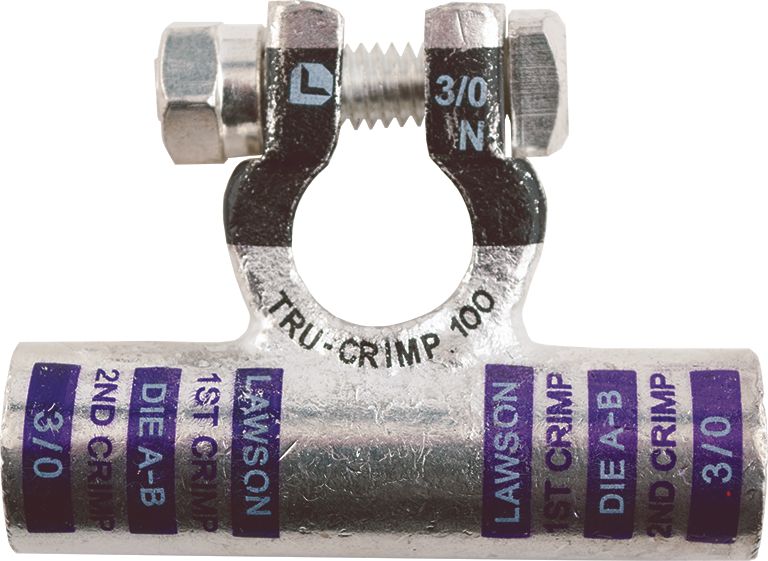

Battery Terminal 3/0 AWG Flag Negative
(Pack of
5.0)
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.
• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Frequently Bought Together
Battery Terminal Solder 1/0-2/0 AWG Universal
Couldn't load pickup availability
Battery Terminal 4-2/0 AWG 3/8" Stud Positive
Couldn't load pickup availability
Battery Terminal Solder 1-2 AWG Universal
Couldn't load pickup availability
Butt Connector 22 to 18 AWG
Couldn't load pickup availability
Energizer® AA Alkaline Battery 1.5V
Couldn't load pickup availability
H3 Halogen Miniature Bulb 70W 24V
Couldn't load pickup availability
SuperNova® LED Clearance/Marker Lamp Red
Couldn't load pickup availability
SuperNova® LED Stop/Tail/Turn Lamp Red
Couldn't load pickup availability
SuperNova® LED Stop/Tail/Turn Lamp Yellow
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/2" Body x 1/2" FNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 3/8" Body x 1/2" FNPT
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/2" MNPT
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
Lawson’s highest grade battery terminals are maintenance-engineered for greater conductivity and strength.• 100% copper battery terminals (lead-free)
• 31% thicker yoke, 22% higher yoke and 17% longer barrel than competitive brands
• Long barrel design yields greater amperage capacity and conductivity
• Tin-plated for maximum strength and corrosion resistance
• Color-coded for polarity and crimp die size
• Barrel marked for 1st and 2nd crimp locations
• 1" cable strip length for maximum contact
• Chamfered barrel for easy cable entry
• Furnished with tin-plated bolt and nut
• Cold forged for superior performance and durability compared to sand-cast and die-cast terminals
• Exceeds SAE J-1811 requirements
• RoHS compliant
Accessory tap on positive terminal. 1/4–20 thread size. Bolt included.
Positive Polarity
Negative Polarity
Technical Specifications
| Item#: | 99928 |
|---|---|
| Style | Flag |
| Cable Gauge | 3/0 AWG |
| Color | Purple |
| Polarity | Negative |
| Plating | Tinned |
| Type | Post-Top Battery Terminals |
| UNSPSC #: | 39121454 |
| TAA Compliant: | No |
| Weight: | 1.72 lb |
