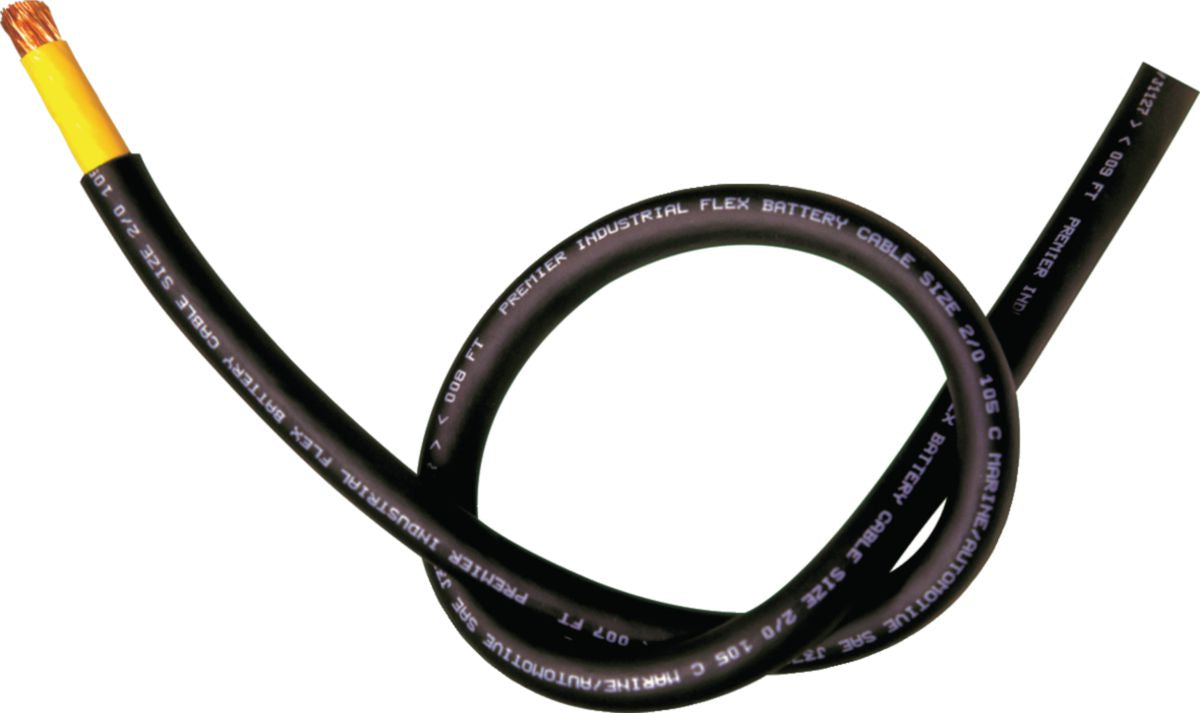

Flexible Battery Cable, 2/0 AWG, Total Strands 1273, 25' Length, Black, 600 Volts, Orange-Crimp Color Code, Copper Conductor
(Pack of
1)
SKU:P52667 Item#: P52667
• Contains up to three times the strand count of regular battery cables
• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Frequently Bought Together
Battery Cable 2 AWG Red Green-Crimp Code
Couldn't load pickup availability
Flexible Battery Cable 8 AWG Black 25'
Couldn't load pickup availability
Flexible Battery Cable 6 AWG Red 50'
Couldn't load pickup availability
Lithium Battery #2025 3V
Couldn't load pickup availability
Energizer® AAA Alkaline Battery 1.5V
Couldn't load pickup availability
Butt Connector 22 to 24 AWG Clear
Couldn't load pickup availability
Sealing Plug 16-12 AWG 13A Contact Size 16/12
Couldn't load pickup availability
Straight Barrel Battery Terminal 4/0 AWG Negative
Couldn't load pickup availability
Flexible Battery Cable 2 AWG Black 50'
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Product Description
• Contains up to three times the strand count of regular battery cables• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Technical Specifications
| Item#: | P52667 |
|---|---|
| Cable Gauge | 2/0 |
| Total Strands | 1,273 |
| Color | Black |
| Volts | 600 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 221 °F |
| Length | 25 ft |
| Crimp Color Code | Orange |
| Amperage Capacity at 140°F (60°C) | 225 A |
| Amperage Capacity at 167°F (75°C) | 265 A |
| Amperage Capacity at 194°F (90°C) | 300 A |
| Specifications | SAE J378C/J1127, UL 62-SJE,SE,SEO |
| Style | Premium Flexible |
| Type | Battery Cable |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 13.9 lb |
