FLSR Series Class RK5 Indicator Fuse, 90 Amps, 600 Volts AC, 300 Volts DC, Time Delay
(Pack of
1)
SKU:60112 Item#: 60112
• Fuses provide visual blown fuse indication at a glance
• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production

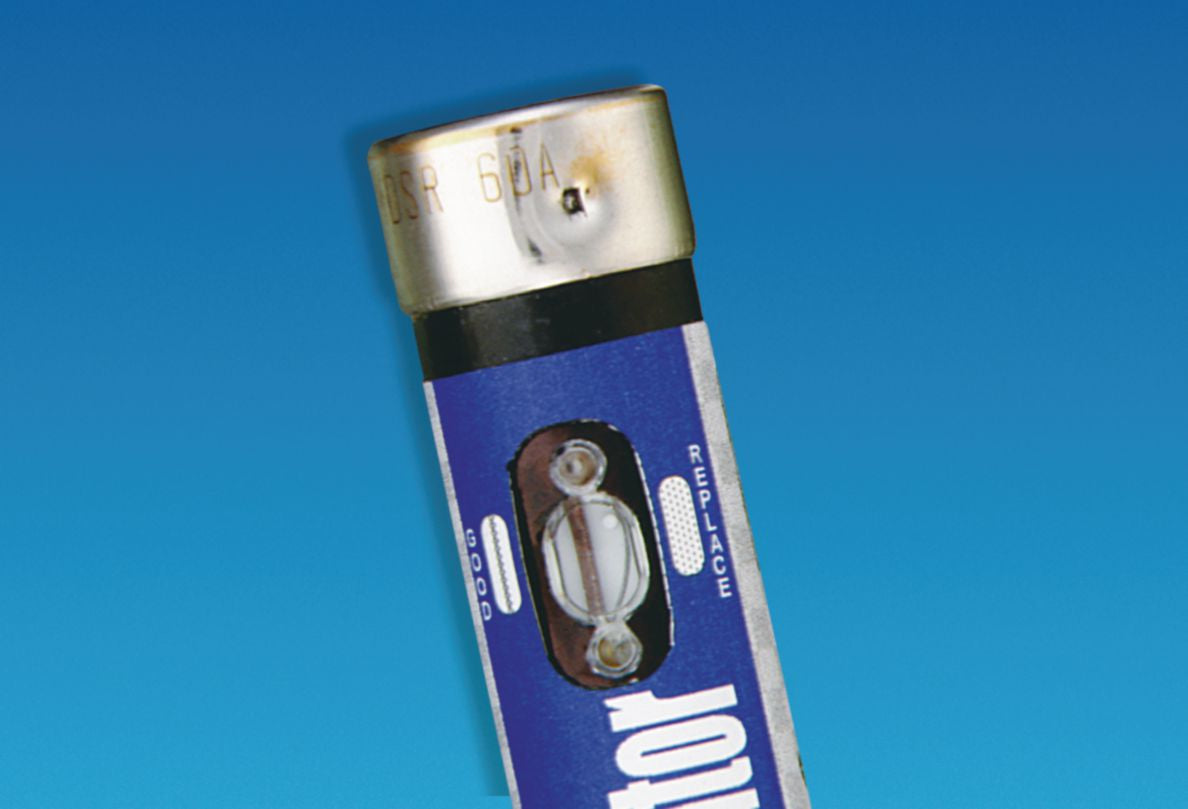

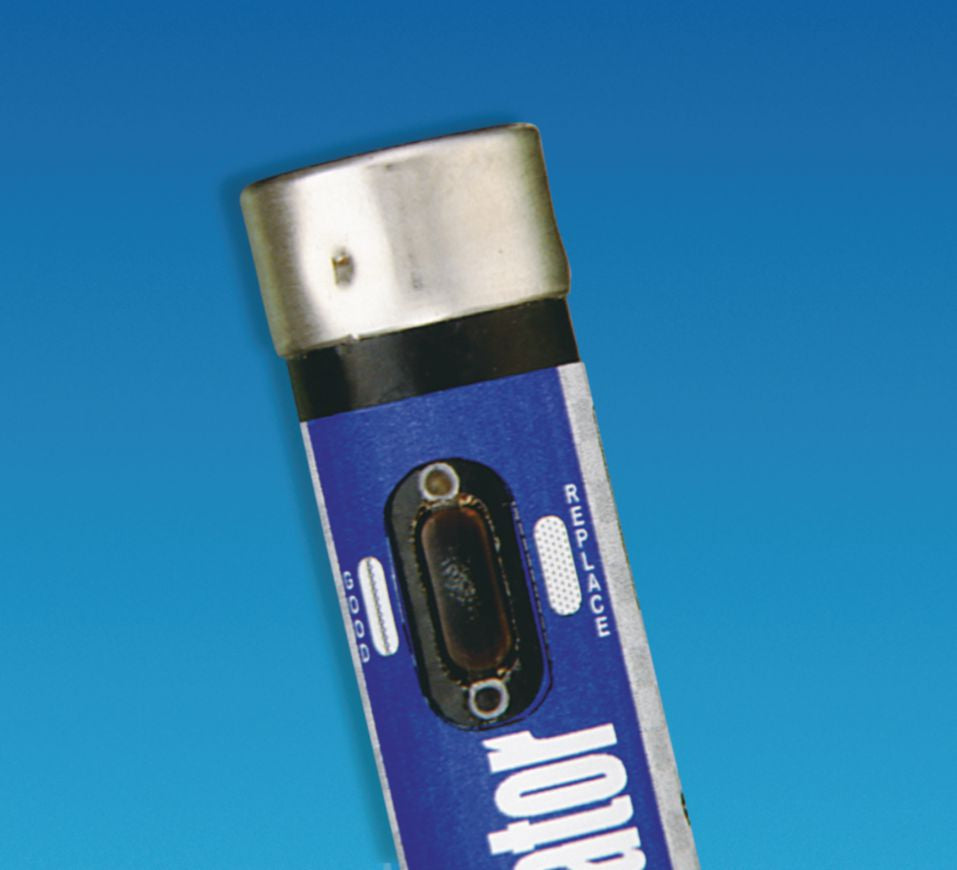

• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 600V AC, 300V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
• MSHA 300V DC listing
Fuses 70A and higher have blade ends.
Frequently Bought Together
Lithium Battery #2025 3V
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
Stylus Pro Reach® Flashlight LED 2x AAA
Couldn't load pickup availability
ATO/ATC Fuse 40A Orange
Couldn't load pickup availability
ATO/ATC Fuse Panel 6-Terminal Short Base
Couldn't load pickup availability
ATO/ATC Fuse 5A Tan
Couldn't load pickup availability
326 Series Ceramic Body Fuse 6-1/4A
Couldn't load pickup availability
A6DR Series Class RK1 Indicator Fuse 25A
Couldn't load pickup availability
A6DR Series Class RK1 Indicator Fuse 20A
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Product Description
• Fuses provide visual blown fuse indication at a glance• Patented state-of-the-art solid state design provides maximum reliability and superior performance in a true dual-element design
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an FLNR_ID or FLSR_ID Indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Rated at 600V AC, 300V DC maximum
• Interrupting ratings: AC 200,000A rms symmetrical, DC 20,000A
• MSHA 300V DC listing
Fuses 70A and higher have blade ends.
Technical Specifications
| Item#: | 60112 |
|---|---|
| Style | FLSR_ID Indicator Class RK5 Fuses |
| Amperage | 90 A |
| Rating | 600V AC, 300V DC maximum V |
| Type | Fuses |
| Replaces | competitors FRS-R and TRS-R non-indicating fusess |
| UNSPSC #: | 39121627 |
| TAA Compliant: | Yes |
| Weight: | 0.58 lb |
Product Restrictions
