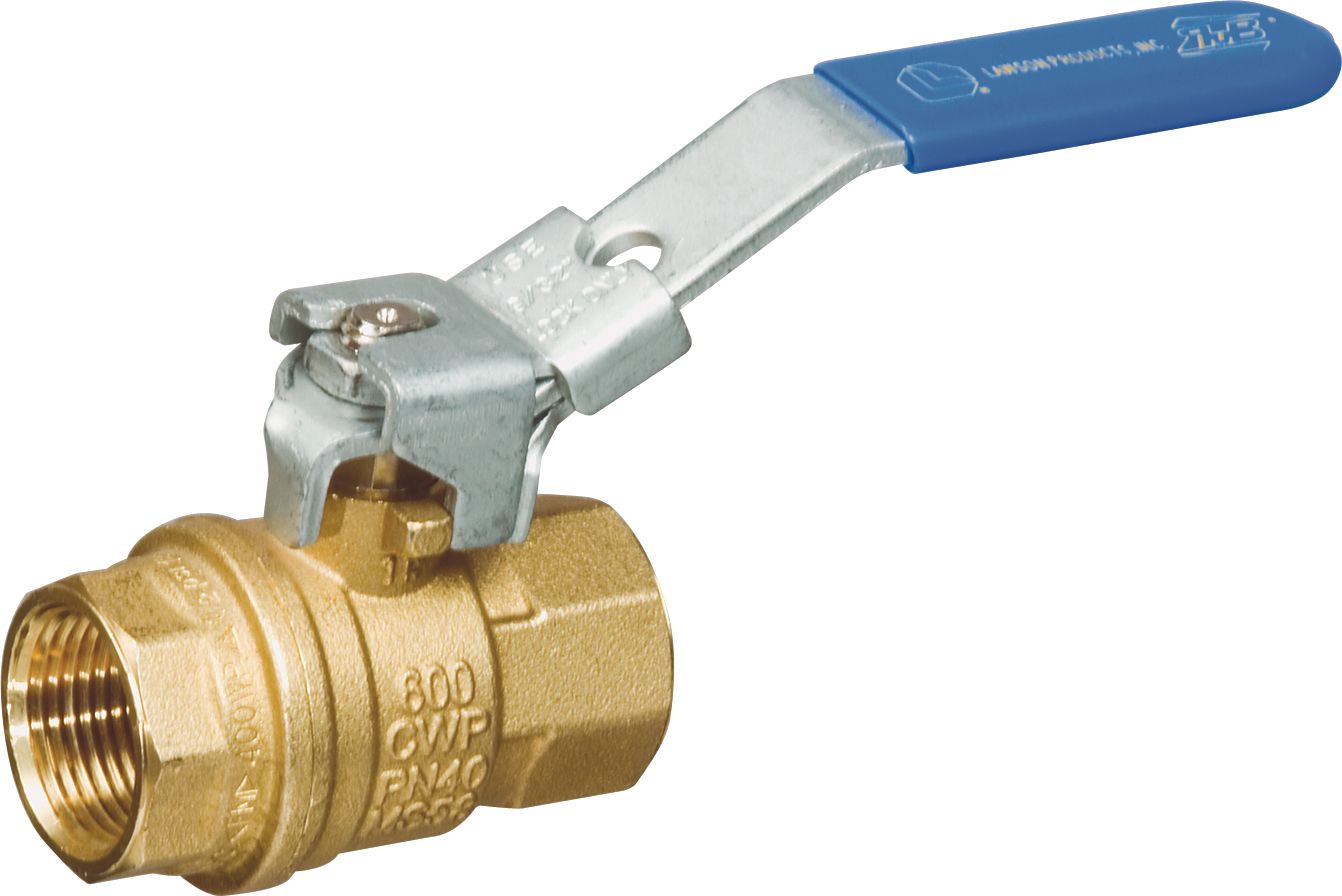

Forged Body Ball Valve with Lockout, Brass, 1/2-14 x 1/2-14, Female NPT x Female NPT, 600PSI
(Pack of
1)
SKU:51205 Item#: 51205
• 24-hour 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Pure virgin PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
• Geomet® carbon steel handle with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Glass-filled pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 600 PSI (150 PSI WSP stem rating)
• Operating temperature: –40°F to +366°F
• Approvals: CSA, FM, UL, CUL, Federal Specification WW-V-35C
Applications:
• Gas
• Drinking water
• Pneumatic lines
Frequently Bought Together
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Grooved Copper Adapter Coupling, 3" x 3"
Couldn't load pickup availability
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Product Description
• 24-hour 100% seal test guaranteed• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Pure virgin PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
• Geomet® carbon steel handle with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Glass-filled pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 600 PSI (150 PSI WSP stem rating)
• Operating temperature: –40°F to +366°F
• Approvals: CSA, FM, UL, CUL, Federal Specification WW-V-35C
Applications:
• Gas
• Drinking water
• Pneumatic lines
Technical Specifications
| Item#: | 51205 |
|---|---|
| Fitting Type | Ball Valve |
| Configuration | Forged Body with Lockout |
| Material | Brass |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 1/2-14 |
| Fitting Dimension B | 1/2-14 |
| Working Pressure | 600 (150 WSP Steam) PSI |
| Style | Lockout |
| Temperature Range | -40 to 366 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.61 lb |
