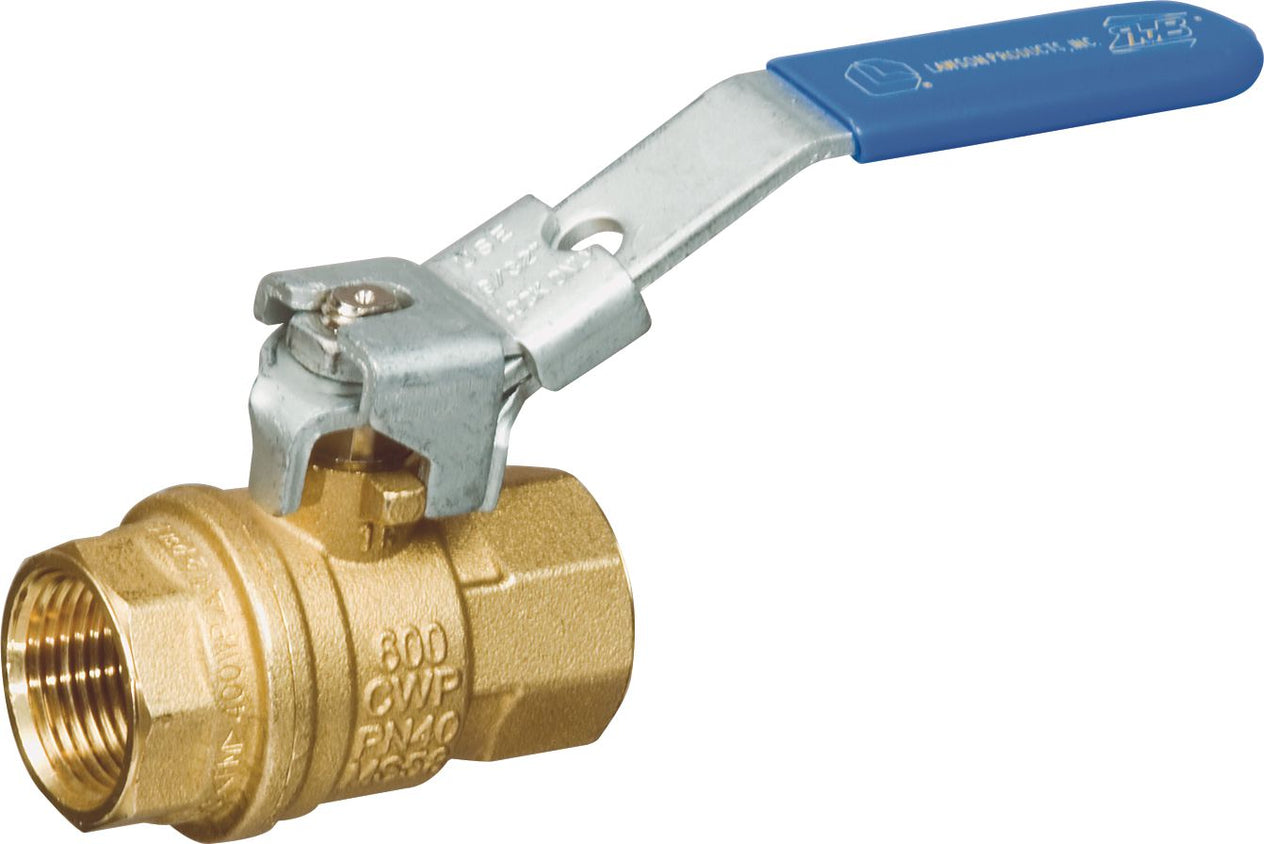

Forged Body Ball Valve with Lockout, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 600PSI
(Pack of
1)
SKU:51203 Item#: 51203
• 24-hour 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Pure virgin PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
• Geomet® carbon steel handle with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Glass-filled pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 600 PSI (150 PSI WSP stem rating)
• Operating temperature: –40°F to +366°F
• Approvals: CSA, FM, UL, CUL, Federal Specification WW-V-35C
Applications:
• Gas
• Drinking water
• Pneumatic lines
Frequently Bought Together
Compression Tube Support Brass 6 x 4mm
Couldn't load pickup availability
Compression Run Tee Brass 1/4 x 1/4-18 x 1/4"
Couldn't load pickup availability
Elbow Brass SAE 45° Flare 90° 3/8-18 x 3/8-18
Couldn't load pickup availability
Copper Reducing Coupling, 3" x 2"
Couldn't load pickup availability
Copper Reducing Adapter Tee, 2" x 2" x 3/4"
Couldn't load pickup availability
F1960 Copper Adapter Coupling, 1/2" x 1/2"
Couldn't load pickup availability
Vacuum Hose Connector Straight 3/16 x 3/16"
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 1/2 to 29/32"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
• 24-hour 100% seal test guaranteed• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Pure virgin PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
• Geomet® carbon steel handle with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Glass-filled pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 600 PSI (150 PSI WSP stem rating)
• Operating temperature: –40°F to +366°F
• Approvals: CSA, FM, UL, CUL, Federal Specification WW-V-35C
Applications:
• Gas
• Drinking water
• Pneumatic lines
Technical Specifications
| Item#: | 51203 |
|---|---|
| Fitting Type | Ball Valve |
| Configuration | Forged Body with Lockout |
| Material | Brass |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 1/4-18 |
| Fitting Dimension B | 1/4-18 |
| Working Pressure | 600 (150 WSP Steam) PSI |
| Style | Lockout |
| Temperature Range | -40 to 366 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.45 lb |
