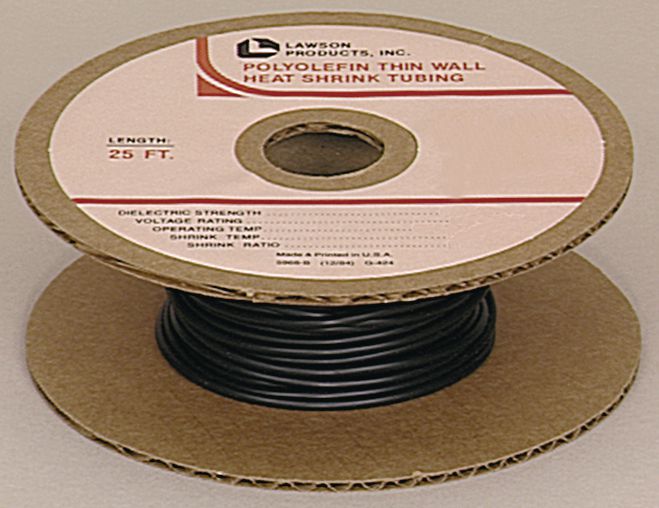

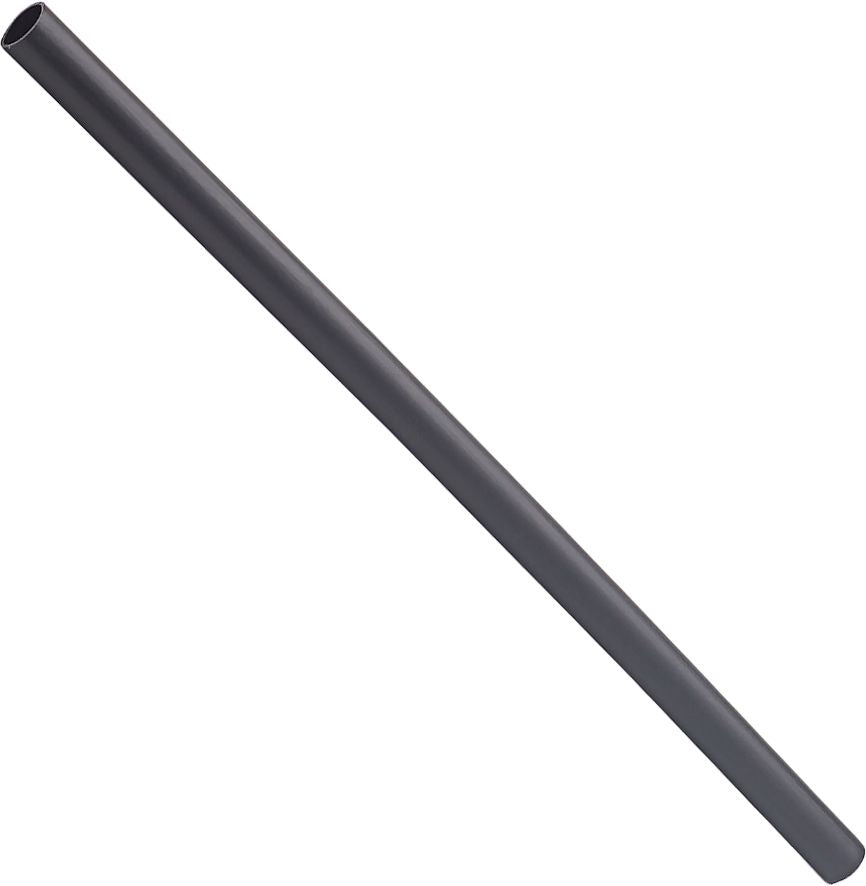

Heat Shrink Tubing, 18 to 16 AWG, 1/8" Diameter, 25' Length, 0.125" ID Before and 0.062" ID After Shrinkage, 2:1 Shrink Ratio
(Pack of
1)
SKU:88828 Item#: 88828
• 2:1 shrink ratio
• Irradiated
• Flame-retardant
• Black
• Supplied in 25-ft. rolls
• Tensile strength: 1,800 PSI
• Elongation: 400%
• Dielectric strength: 550V/mil
• Operating temperature: –67°F to +221°F (–55°C to +105°C)
• Rated at 300V
• Use for electrical and electro-mechanical insulation applications
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Frequently Bought Together

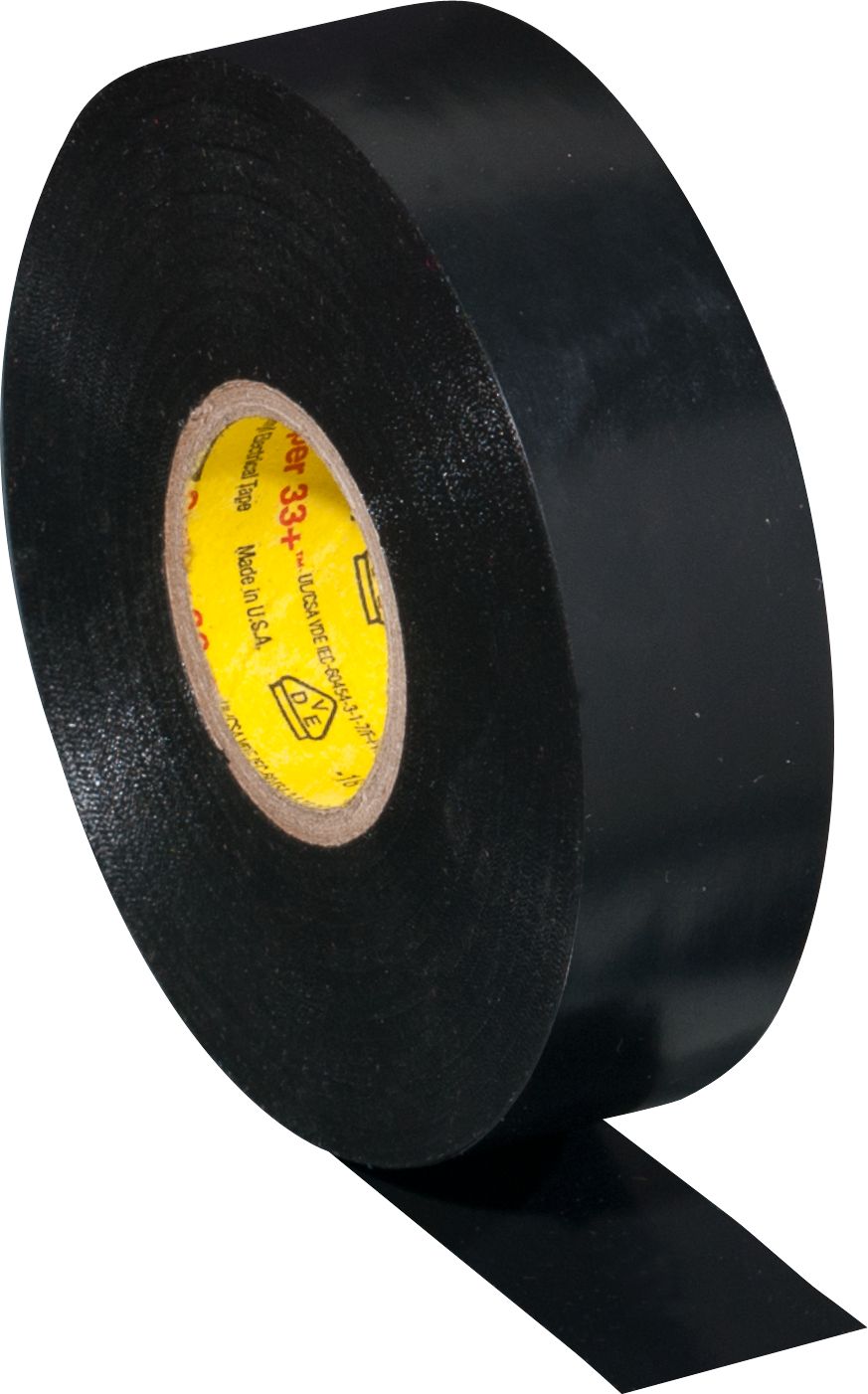

Super 33+ Series Vinyl Electrical Tape Black 3/4"
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 32CP
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
$0.00
Couldn't load pickup availability
1/8 x 3" Brown Thermapod Heat Shrink Tube
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Black
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Insulform Heat Shrink Tubing 12 to 8 AWG Black
$0.00
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.5" ID
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 22 to 20 AWG Black
$0.00
Couldn't load pickup availability
Product Description
• 2:1 shrink ratio• Irradiated
• Flame-retardant
• Black
• Supplied in 25-ft. rolls
• Tensile strength: 1,800 PSI
• Elongation: 400%
• Dielectric strength: 550V/mil
• Operating temperature: –67°F to +221°F (–55°C to +105°C)
• Rated at 300V
• Use for electrical and electro-mechanical insulation applications
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 88828 |
|---|---|
| Type | Roll |
| Style | Thin Wall |
| Wire Gauge Coverage | 18-16 AWG |
| Diameter | 1/8 " |
| Length | 25 ft |
| Color | Black |
| I.D. Before Shrinkage | .125 " |
| I.D. After Shrinkage | .062 " |
| Shrink Ratio | 2 to 1 |
| Wall Thickness After Shrinkage | 0.020 " |
| Dielectric Strength | 500 V/mm |
| Voltage Rating | 600 V |
| Temperature Rating | -67 to 221 °F |
| Elongation | 400 % |
| Tensile Strength | 1,800 PSI |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.11 lb |
