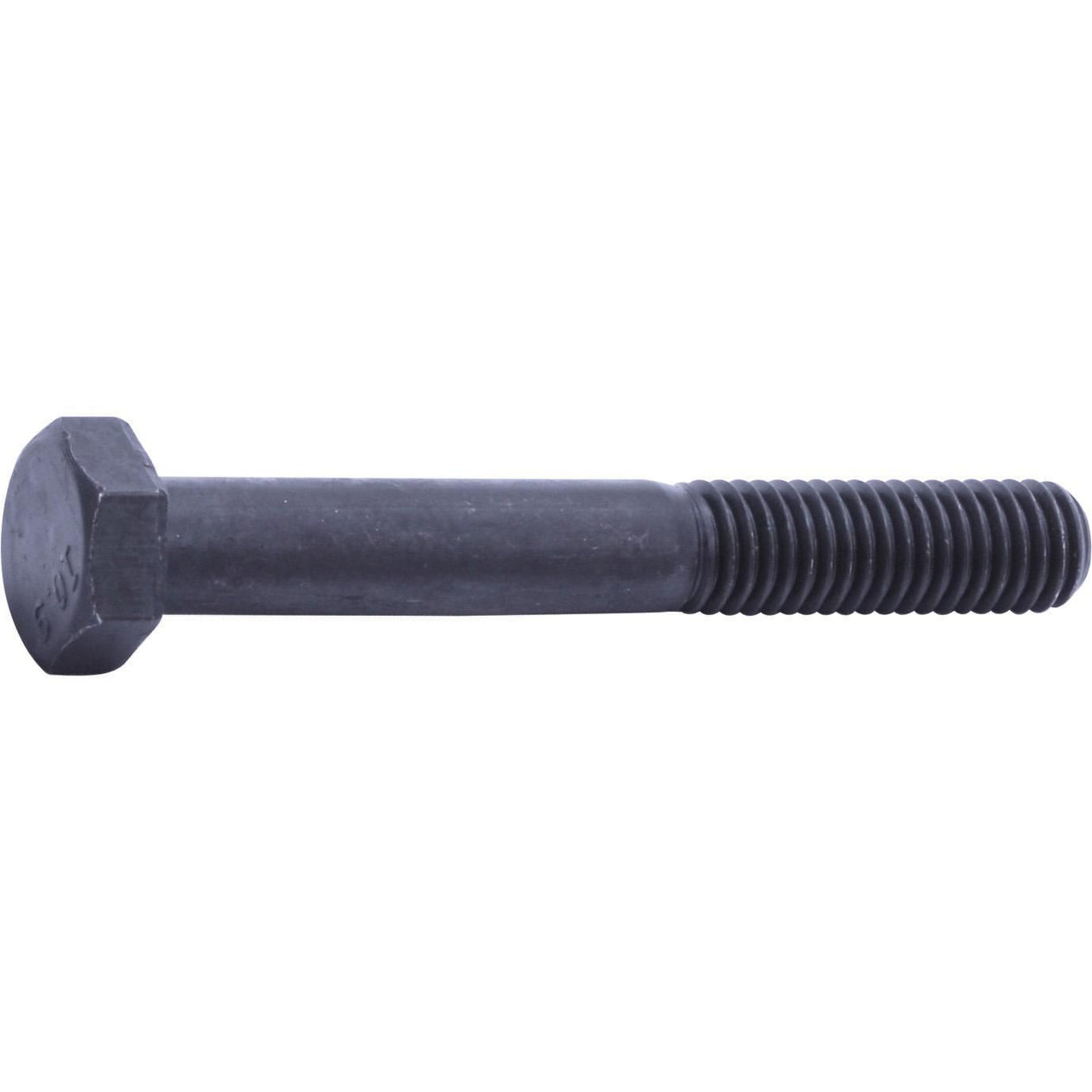

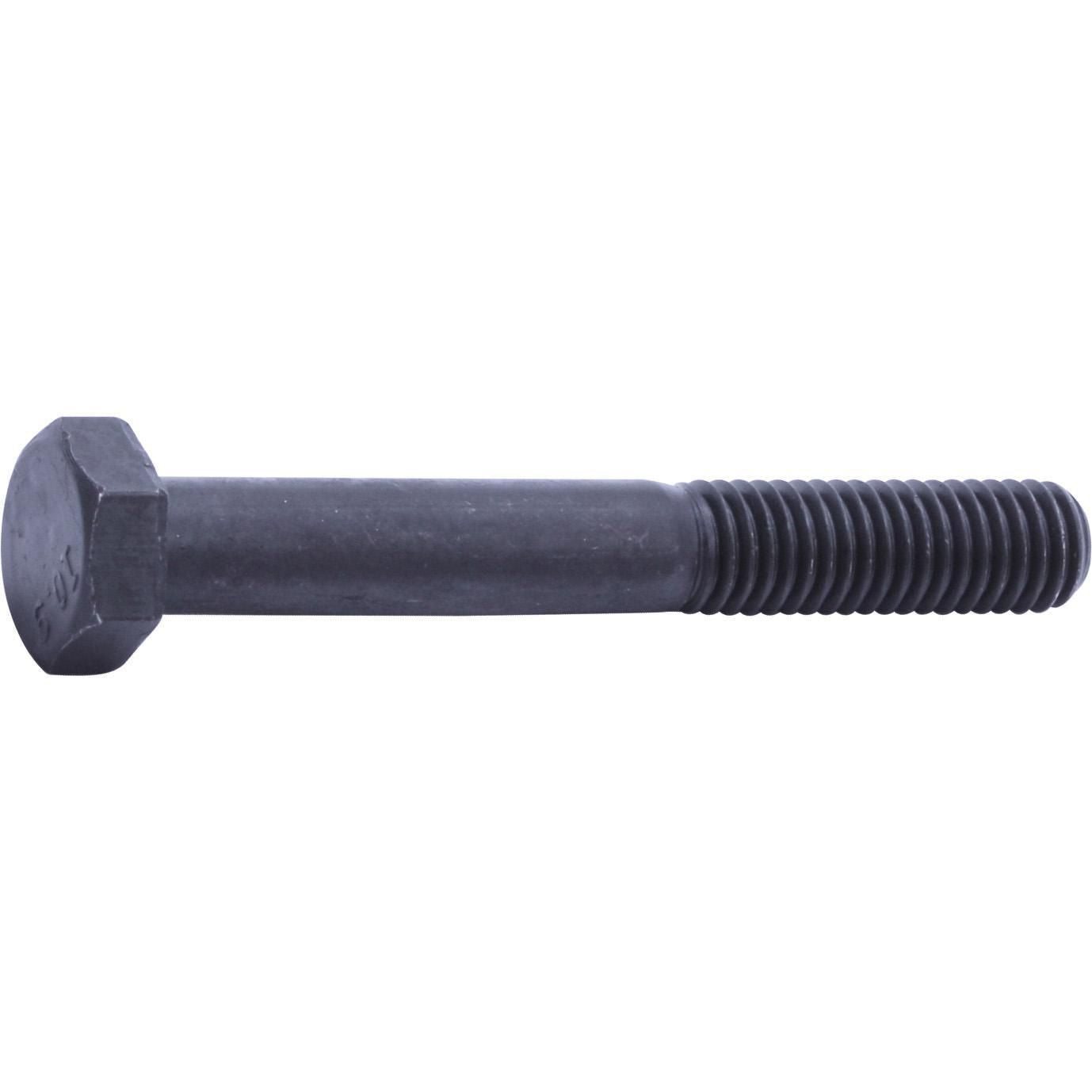

DIN 931 Hex Cap Screw, Property Class 10.9, Steel, Plain Finish, Coarse Thrd, 18.7mm Hd Height, 46mm Across Flats, M30-3.5 x 250mm
(Pack of
1)
SKU:1435945 Item#: 1435945
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength
• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Item#: 55607
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 35mm
Item#: 28694
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
Item#: 28680
Couldn't load pickup availability
Hex Cap Screw Grade 5 1/4-20 x 1/2"
Item#: FA65000
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M8-1.25 x 30mm
Item#: 27344
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M6-1 x 30mm
Item#: 27333
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
Item#: 28679
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
Item#: 28699
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Item#: 82353
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Item#: A100
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
Item#: 28687
Couldn't load pickup availability
Hex Nut Grade 8 Steel M6-1
Item#: 4302
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Item#: 1468633
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Item#: KT13747
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
Couldn't load pickup availability
Product Description
• 1,040 MPa (150,000 PSI) minimum ultimate tensile strength• Meets DIN Specifications 933 (full thread) and 931 (partial thread)
Technical Specifications
| Item#: | 1435945 |
|---|---|
| Style | Industry Standard |
| Diameter | M30 |
| Thread Pitch | 3.5 mm |
| Thread | Coarse |
| Length | 250 mm |
| Type | Hex Cap Screw |
| Across Flats | 46 mm |
| Material | Alloy Steel |
| Grade | 10.9 |
| Finish | Plain |
| Tensile Strength | 1,040 MPa |
| Specifications | DIN 931 |
| Head Style | Hex |
| Head Height | 18.7 mm |
| Thread Length | Partial |
| Thread Length Minimum | 85 mm |
| UNSPSC #: | 31161501 |
| TAA Compliant: | No |
