Hoist Ring, Safety Engineered, 10,000 lb Load Limit, 1-1/8-8 Thread Size, 2.29" Thread Length
(Pack of
1)
• Material: High strength 4140 alloy steel
• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Frequently Bought Together
Shoulder Eyebolt, With Nut, Galvanized, 3/8" x 5"
Couldn't load pickup availability
Eyebolt, With Nut, Galvanized, 1" x 9"
Couldn't load pickup availability
Eyebolt, Machinery, Self-Colored, 7/16" x 1-3/8"
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 1,000 lb Load Limit
Couldn't load pickup availability
Fast-Lok® Plate Lfting System
Couldn't load pickup availability
Hoist Ring, Flip-Flop, 5,000 lb Load Limit
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope Uncoated 1960 Safe Load 5/16" x 100'
Couldn't load pickup availability
20' Aluminum Plank & Stages
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Product Description
• Material: High strength 4140 alloy steel• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
• Each Individually Serial Numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423272 |
|---|---|
| Type | Safety Engineered |
| Thread Size | 1-1/8-8 |
| Thread Length | 2.29 " |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 10,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 230 ft·lbf |

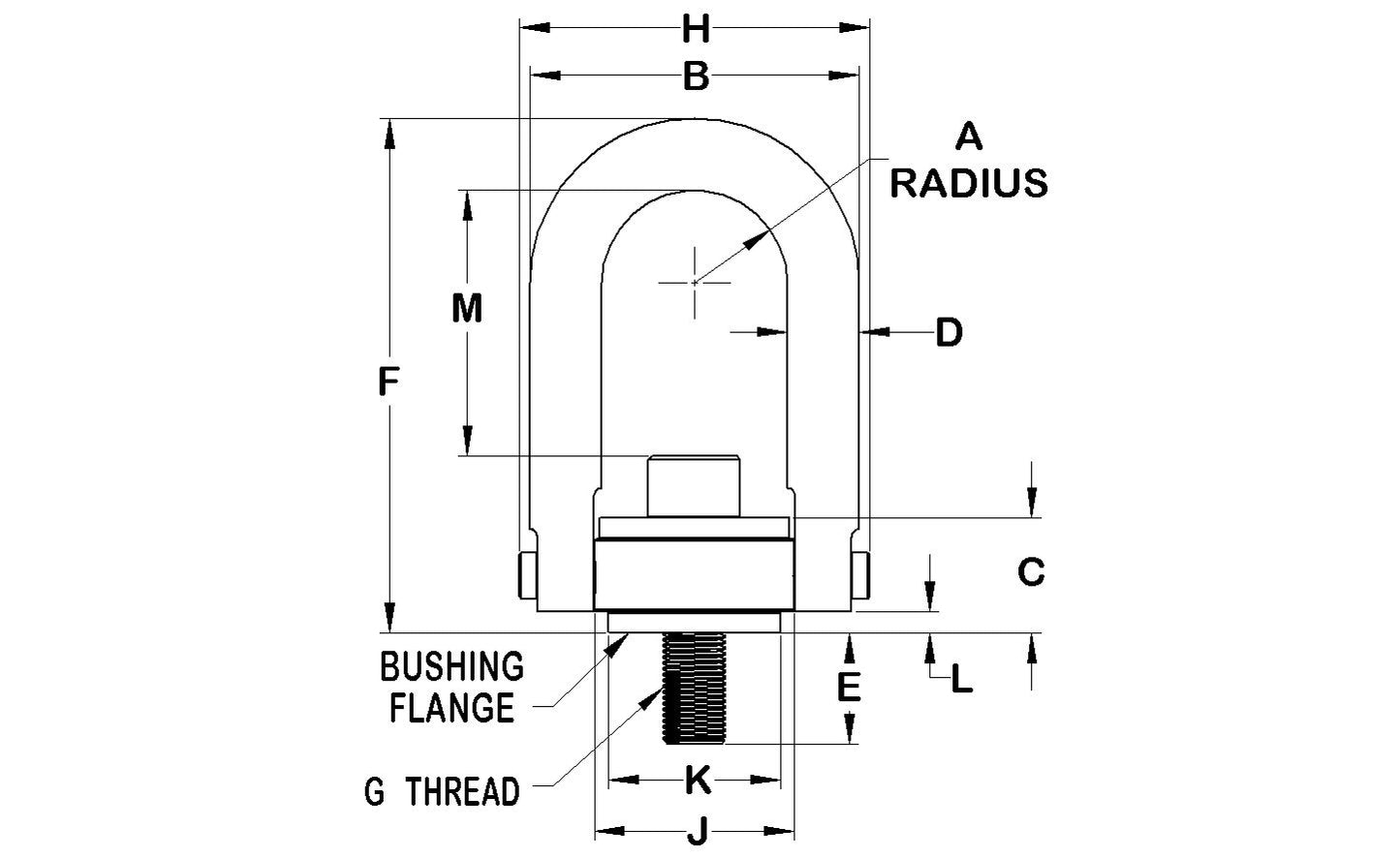

| Dimension A | 1.40 " |
| Dimension B | 4.80 " |
| Dimension C | 1.71 " |
| Dimension D | 1” " |
| Dimension E | 2.29 " |
| Dimension F | 6.52 " |
| Dimension G | 1-1/8-8 " |
| Dimension H | 5.14 " |
| Dimension J | 3.00 " |
| Dimension K | 2.37 " |
| Dimension L | .24 " |
| Dimension M | 2.81 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
