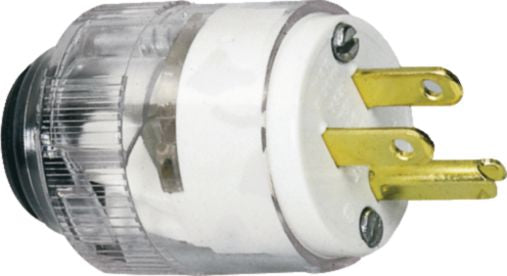

Hospital Grade Straight Plug, 2-Pole, 3-Wire, 20 Amps, 125 Volts, 0.3 to 0.655" Cord Diameter, NEMA 5-20P
(Pack of
1)
• Green dot signifies Hospital Grade
• 2 pole, 3 wire
• Assembly and cord-grip screws install from front to avoid accidental energizing of hand-held portion of plug
• Non-metallic cord grip firmly grips power cord assuring maximum strain relief – accepts three-conductor cords 0.300" – 0.655" dia.
• Clamp-type terminals for quick, solid connections; terminal screws are color-coded for easy identification
• Individual wire pockets allow maximum conductor separation to prevent flash-over between wires
• Strip gauge for accurate wiring
• No exposed metal parts on hand-held side
• Rugged all-nylon construction
• Transparent wiring chamber and cover for visual inspection
• Dead-front construction prevents accidental contact with live parts
• All Lawson Hospital Grade wiring devices conform to OSHA and NEMA specifications and all other safety regulations
• Meets or exceeds UL, CSA, NEMA/ANSI and Federal standards
Frequently Bought Together
Lithium Battery #2450 3V
Couldn't load pickup availability
ATO/ATC Fuse 15A Light Blue
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 60', 10 Rolls Per Pack
Couldn't load pickup availability
E-Z Wire Straight Blade Plug Light Duty Brown
Couldn't load pickup availability
Industrial Duty Locking Connector 20A 125V
Couldn't load pickup availability
Industrial Duty SAF-T Connect Plug 20A 125V
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 17mm Washer Steel
Couldn't load pickup availability
Toggle Switch AC Single Pole 20A 125/277V Ivory
Couldn't load pickup availability
Rocker Switch SPST, 14V DC 20A , 28V DC 10A, Black W/Leg Snap in Sqr,
Couldn't load pickup availability
Start Switch SPST 2x 5/16-24" Momentary On
Couldn't load pickup availability
Product Description
• Green dot signifies Hospital Grade• 2 pole, 3 wire
• Assembly and cord-grip screws install from front to avoid accidental energizing of hand-held portion of plug
• Non-metallic cord grip firmly grips power cord assuring maximum strain relief – accepts three-conductor cords 0.300" – 0.655" dia.
• Clamp-type terminals for quick, solid connections; terminal screws are color-coded for easy identification
• Individual wire pockets allow maximum conductor separation to prevent flash-over between wires
• Strip gauge for accurate wiring
• No exposed metal parts on hand-held side
• Rugged all-nylon construction
• Transparent wiring chamber and cover for visual inspection
• Dead-front construction prevents accidental contact with live parts
• All Lawson Hospital Grade wiring devices conform to OSHA and NEMA specifications and all other safety regulations
• Meets or exceeds UL, CSA, NEMA/ANSI and Federal standards
Technical Specifications
| Item#: | 83333 |
|---|---|
| Style | Hospital Grade Plugs and Connectors |
| Volts | 125 |
| Description | Straight Plug |
| NEMA Configuration | 5-20P |
| Cord Diameter | 0.300 - 0.655 " |
| Approvals | UL, CSA, NEMA, ANSI and Federal standards |
| Type | Bushings, Plugs, and Connectors |
| UNSPSC #: | 39121400 |
| TAA Compliant: | No |
| Weight: | 0.14 lb |
