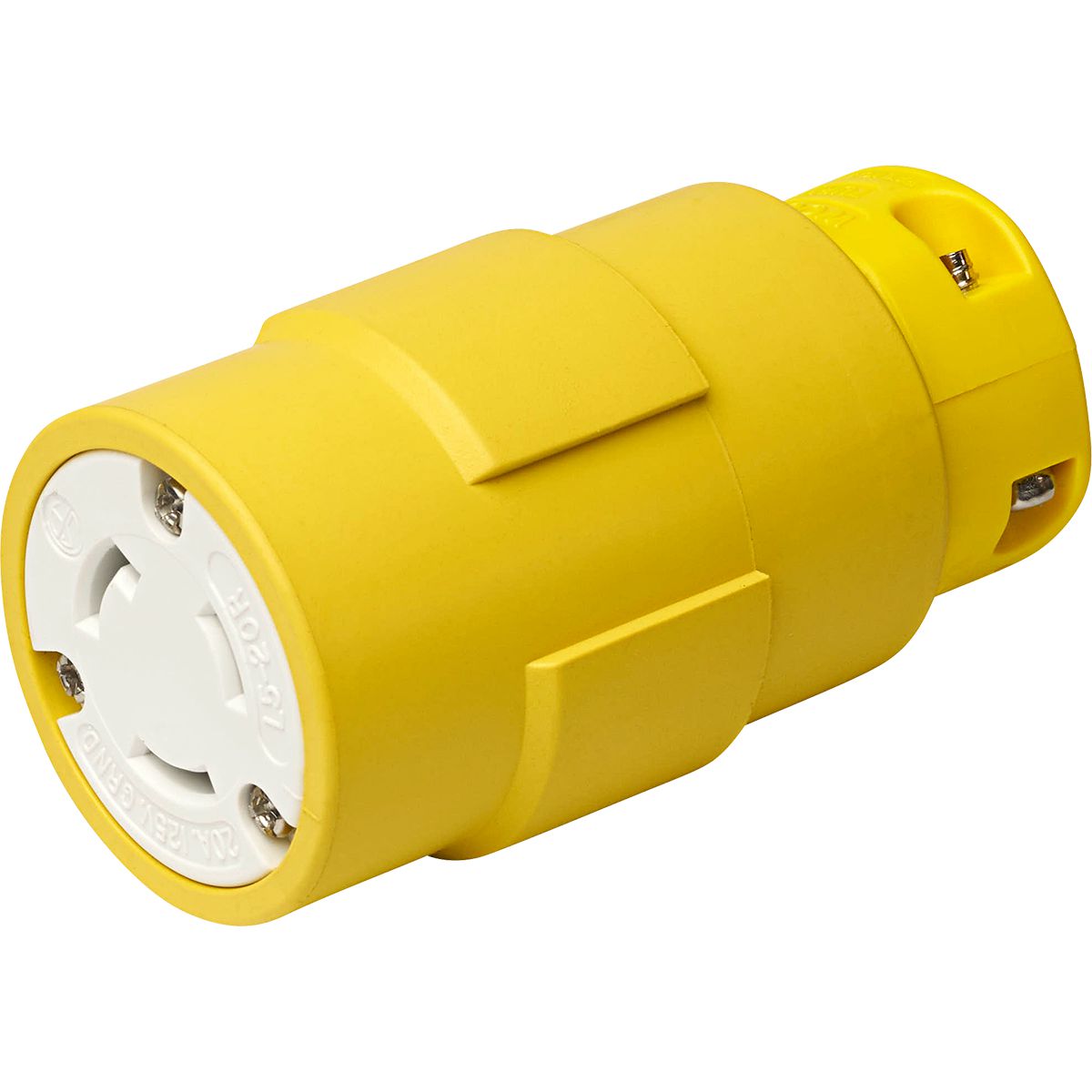

Industrial Duty Connector, 20 Amps, 125 Volts, 0.405 to 0.815" Cord Diameter, NEMA L5-20R
(Pack of
1)
SKU:87226 Item#: 87226
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.
• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Frequently Bought Together
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Cable Tie Hook and Loop Roll 15' Orange
Couldn't load pickup availability
Ground Fault Receptacle 15A 125V Ivory
Couldn't load pickup availability
Industrial Duty SAF-T Connect Plug 15A 125V
Couldn't load pickup availability
Hospital Grade Straight Plug 15A 125V
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 17mm Washer Steel
Couldn't load pickup availability
Sealed Toggle Switch SPST 18A 125V On-Off-On
Couldn't load pickup availability
Locking Connector 2 Pole 3 Wire 20A 250V
Couldn't load pickup availability
Industrial Duty Plug 20A 125V L5-20P
Couldn't load pickup availability
Product Description
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Technical Specifications
| Item#: | 87226 |
|---|---|
| Style | Industrial-Duty Plugs and Connectors |
| Volts | 125 |
| Description | Connector |
| NEMA Configuration | L5-20R |
| Cord Diameter | 0.405 - 0.815 " |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.53 lb |
