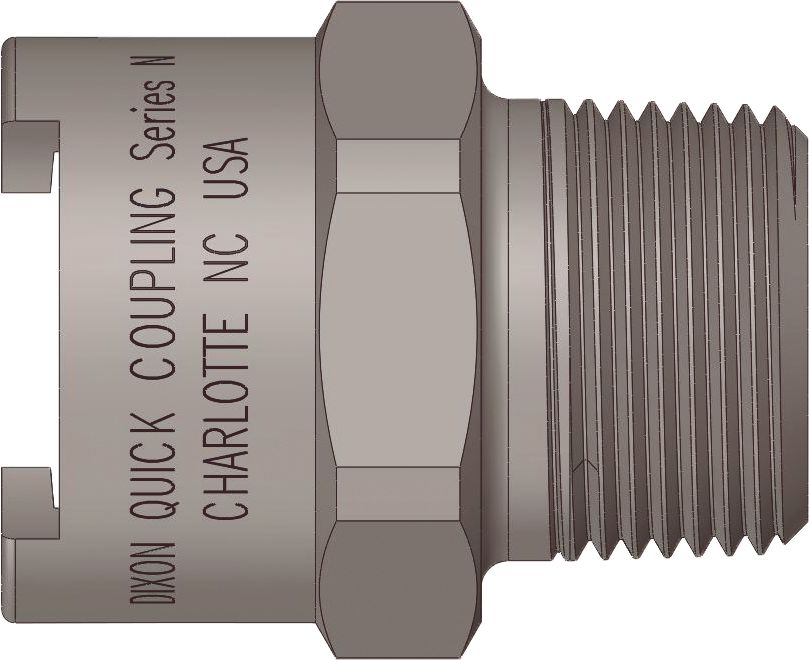

Industrial Quick Disconnect Coupler 303 Stainless Steel 1/2 Bowes Male NPTF 3/4-14
(Pack of
1)
SKU:20876 Item#: 20876
Dual-guide sleeve tabs ensure smooth collar action during connection and disconnection. “Push-Twist and Click” connection provides a positive lock when connected. Pneumatically-energized seal provides an airtight seal at all working pressures. Available safety-lock ring protects against accidental disconnection while coupling is in operation. Used for air hammers and large-bore air tools. Used in underground boring, power utilities and equipment rentals.
• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection
• Locking mechanism: Latch tabs
• Meets MIL-C-3486 for Military applications
• Operating pressure: 300 PSI
• Coupled burst pressure: 3,000 PSI
• Flow: 250 CFM
• Dixon: N-Series
• Bowes: 51000 Series
Frequently Bought Together
Product Description
Dual-guide sleeve tabs ensure smooth collar action during connection and disconnection. “Push-Twist and Click” connection provides a positive lock when connected. Pneumatically-energized seal provides an airtight seal at all working pressures. Available safety-lock ring protects against accidental disconnection while coupling is in operation. Used for air hammers and large-bore air tools. Used in underground boring, power utilities and equipment rentals.• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection
• Locking mechanism: Latch tabs
• Meets MIL-C-3486 for Military applications
• Operating pressure: 300 PSI
• Coupled burst pressure: 3,000 PSI
• Flow: 250 CFM
• Dixon: N-Series
• Bowes: 51000 Series
Technical Specifications
| Item#: | 20876 |
|---|---|
| Description | Industrial Quick Disconnect |
| Type | Coupler |
| Style | Bowes |
| Body Size | 1/2 " |
| Thread Style | Male NPTF |
| Thread Size | 3/4-14 |
| Working Pressure | 500 PSI |
| Material | 303 Stainless Steel |
| Length | 1.77 " |
| Seal Material | Nitrile (Buna-N) |
| Hex Size | 1-3/8 " |
| Standards | MIL-C-3486; A-A-50431A |
| Dixon Number | 4NM6-S |
| Locking Mechanism | Latch Tabs |
| Flow | 204 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.37 lb |
