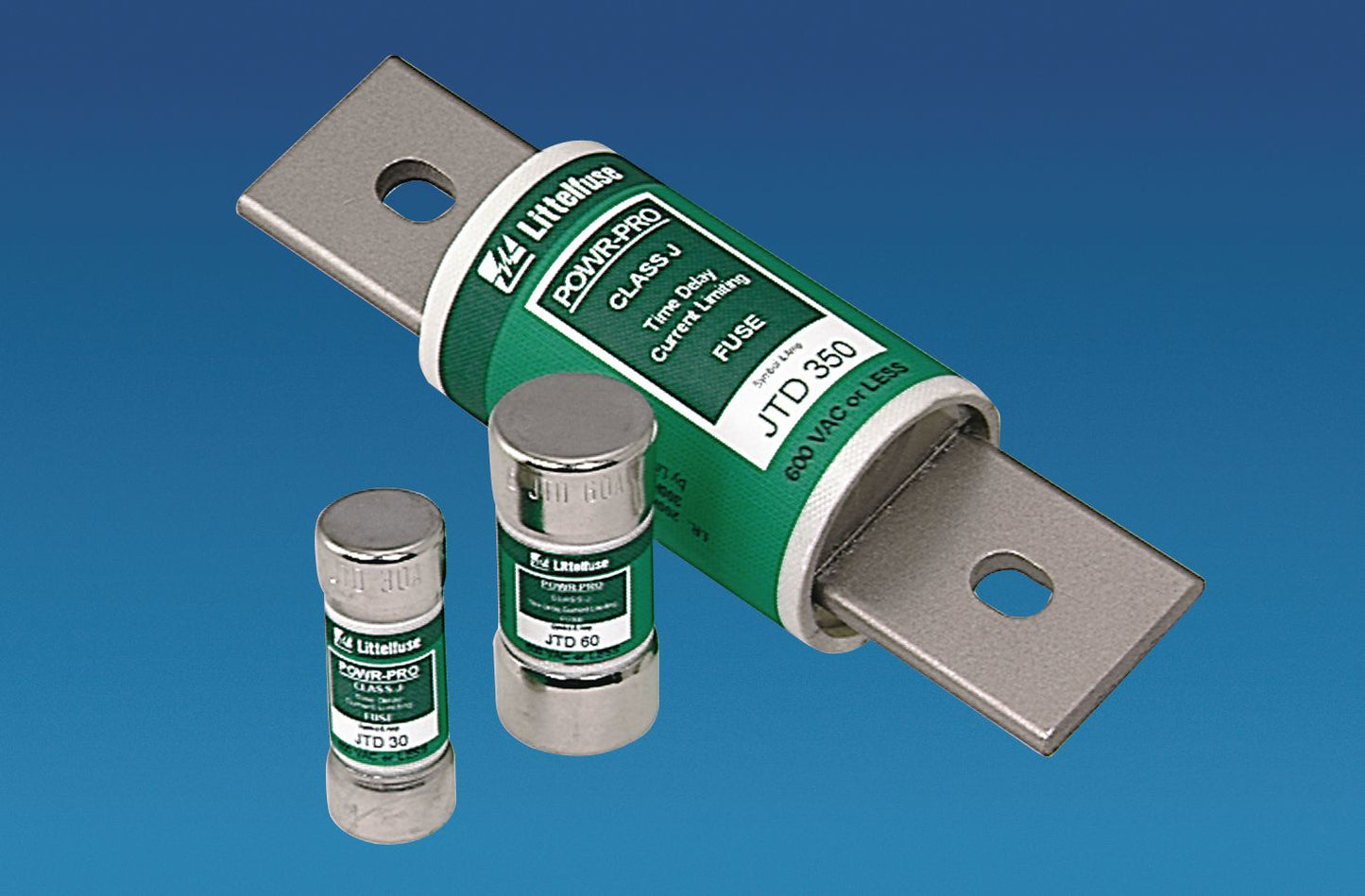

JTD Series Class J Indicator Fuse, 25 Amps, 600 Volts, Time Delay
(Pack of
1)
• Indicator fuses provide visual blown fuse indication at a glance
• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Interrupting rating: 200,000A rms symmetrical; 300,000A rms symmetrical (UL listed Special Purpose)• UL listed Class J Fuses per UL 198C• CSA certified HRCI-J per C22.2 #106• Meets Federal Specification WF1814 (QPL)
• Provide space-saving protection for service entrance, main, feeder and general-purpose branch circuits
• Time-delay characteristics and high current limitation mean the JTD fuse is also used in the protection of circuits with high-inrush currents such as motors, transformers and solenoids, including both IEC-rated and NEMA-rated devices
Fuses 100A and higher have blade ends
Frequently Bought Together
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Post-Style Circuit Breaker with Bracket 30A 12V
Couldn't load pickup availability
Post-Style Circuit Breaker with Bracket 25A 12V
Couldn't load pickup availability
MICRO2 Series Blade Fuse 25A Clear
Couldn't load pickup availability
FLSR Series Class RK5 Indicator Fuse 7-1/2A
Couldn't load pickup availability
A6DR Series Class RK1 Indicator Fuse 60A
Couldn't load pickup availability
KTK Series Midget Fuse 1/4A
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Product Description
• Indicator fuses provide visual blown fuse indication at a glance• Reduces downtime and nuisance opening, increases safety and can save thousands of dollars in lost production
• A glance at the indicating window of an indicator fuse pinpoints open fuses immediately – if the window is dark, the fuse has opened
• No fuse testing required
• Indicator fuses improve safety by minimizing exposure to live circuits; they provide built-in blown fuse indication with the power on or off
• Interrupting rating: 200,000A rms symmetrical; 300,000A rms symmetrical (UL listed Special Purpose)• UL listed Class J Fuses per UL 198C• CSA certified HRCI-J per C22.2 #106• Meets Federal Specification WF1814 (QPL)
• Provide space-saving protection for service entrance, main, feeder and general-purpose branch circuits
• Time-delay characteristics and high current limitation mean the JTD fuse is also used in the protection of circuits with high-inrush currents such as motors, transformers and solenoids, including both IEC-rated and NEMA-rated devices
Fuses 100A and higher have blade ends
Technical Specifications
| Item#: | 19888 |
|---|---|
| Style | JTD, Class J Fuses, Non-Indicator Series |
| Amperage | 25 A |
| Approvals | UL, CSA |
| Type | Fuses |
| Bussman Number | LPJ-25SP |
| UNSPSC #: | 39121627 |
| TAA Compliant: | Yes |
| Weight: | 0.09 lb |
Product Restrictions
