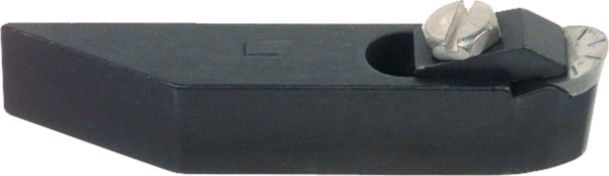

Left Hand Round Brake Lathe Bit Holder
(Pack of
1)
• Round left and right hand positive bit holders
• For All Tool, Ammco, Hunter, Performance and Rels lathes
• Use with Round Carbide Bit No. P14043
How to tell the difference between Positive and Negative Rake Lathe BitsPositive RakeThese brake bits have angled sides, and generally only have three cutting points. If you would set a positive rake brake bit on its side, it would not stand straight. This is because the rake (cutting angle) is built into the brake bit.Negative RakeThese brake bits have straight (no angle) sides, and generally have six cutting points. You have three cutting points on one side, and then turn the bit over for three more cutting points. If you set a negative rake bit on its side, the bit would stand straight. This is because the rake (cutting angle) is built into the brake bit tool holder.
Frequently Bought Together
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Carbide Brake Lathe Bit 6 Cutting Edges
Couldn't load pickup availability
Brake Lathe Carbide Insert 3/8 x 3/32"
Couldn't load pickup availability
Universal Round Carbide Brake Lathe Bit
Couldn't load pickup availability
Scotch-Brite™ Roloc™ Brake Hub Cleaning Holder
Couldn't load pickup availability
Right Hand Brake Bit Holder
Couldn't load pickup availability
Carbide Brake Lathe Bit Van Norman
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
• Round left and right hand positive bit holders• For All Tool, Ammco, Hunter, Performance and Rels lathes
• Use with Round Carbide Bit No. P14043
How to tell the difference between Positive and Negative Rake Lathe BitsPositive RakeThese brake bits have angled sides, and generally only have three cutting points. If you would set a positive rake brake bit on its side, it would not stand straight. This is because the rake (cutting angle) is built into the brake bit.Negative RakeThese brake bits have straight (no angle) sides, and generally have six cutting points. You have three cutting points on one side, and then turn the bit over for three more cutting points. If you set a negative rake bit on its side, the bit would stand straight. This is because the rake (cutting angle) is built into the brake bit tool holder.
Technical Specifications
| Item#: | P14047 |
|---|---|
| UNSPSC #: | 25171702 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
