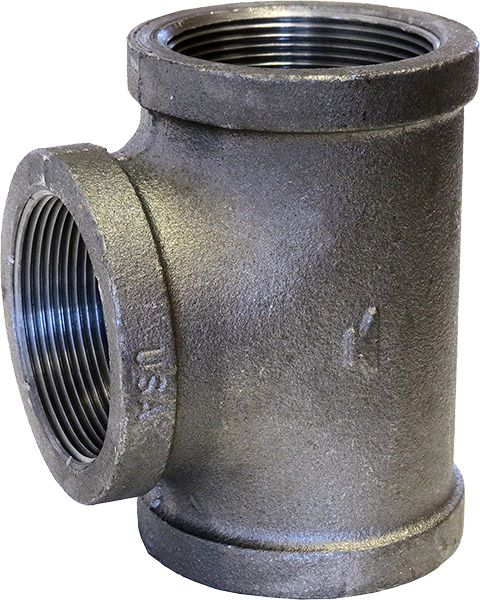

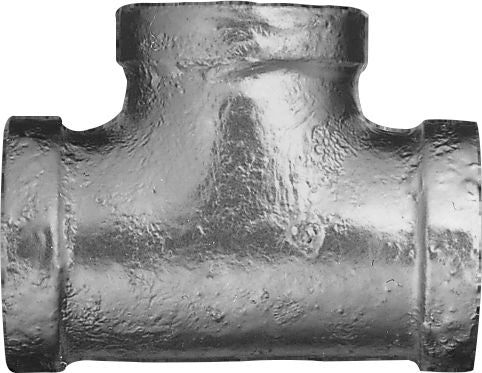

Pipe Tee, Malleable Iron, Black, 1-11-1/2 x 1-11-1/2 x 1-11-1/2, Female NPT x Female NPT x Female NPT, 300PSI
(Pack of
1)
SKU:1637901 Item#: 1637901
300 lb. Rated, Black and Galvanized
• Class 300
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved
Frequently Bought Together
Copper Reducing Tee, 3/4" x 3/4" x 1/2"
Couldn't load pickup availability
Copper Male Adapter Coupling, 3/4" x 3/4"
Couldn't load pickup availability
Copper Reducing Adapter Coupling, 1" x 3/4"
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 35' air hose
Couldn't load pickup availability
Air Hose Ferrule Brass 21/32"
Couldn't load pickup availability
Hex Bushing Malleable Iron 1-11-1/2 x 1/8-27
Couldn't load pickup availability
Pipe Cap Malleable Iron 1/2-14
Couldn't load pickup availability
Hex Bushing Steel 2-11-1/2 x 1-1/4-11-1/2
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Product Description
300 lb. Rated, Black and Galvanized• Class 300
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved
Technical Specifications
| Item#: | 1637901 |
|---|---|
| Fitting Type | Pipe |
| Material | Malleable Iron |
| Class | 300 lb. |
| Configuration | Tee |
| Angle | 90 ° |
| Connection Type A x B x C | Female NPT x Female NPT x Female NPT |
| Fitting Dimension A | 1-11-1/2 |
| Fitting Dimension B | 1-11-1/2 |
| Fitting Dimension C | 1-11-1/2 |
| Finish | Black |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 40174606 |
| TAA Compliant: | Yes |
| Weight: | 1.62 lb |
