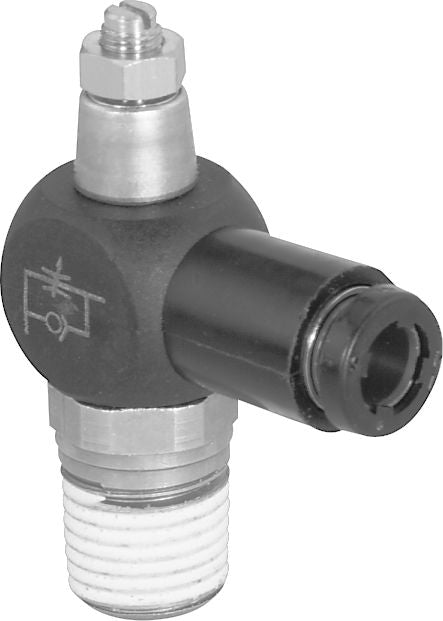

Compact Meter Out Flow Control Regulator, Nylon, 3/8 x 1/4", Tube x NPT, 15 to 145PSI
(Pack of 1)

SKU:62225P Item#: 62225P

Parker Fluid Connectors Group

Manufactured with robust materials, compact flow control regulators ensure excellent performance of flow and are perfectly suited for reduced spaces due to their small size. The sensitivity of the adjustment screw provides very precise air flow control and regulation. A locking nut guarantees stability of adjustment against vibration tampering of the flow setting. The adjustment screw and locking nut have been designed for easy manipulation, by hand. Adjustment can be made with a screwdriver and locking by use of a wrench.
• Working temperature: 30°F to +160°F
• Working pressure: 15 to 145 PSI
• Sutable fluids: Compressed air
• Construction:
– Body: Glass-reinforced nylon 6.6 or brass
– Gripping ring: Stainless steel
– Adjustment screw: Nickel-plated brass
– Locking nut: Nickel-plated brass
– Base: Nickel-plated brass with thread sealant on tapered components
Photos are representations of product.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Check Availability

Quantity

Frequently Bought Together

Pipe Street Tee Brass 1/4-18 x 1/4-18 x 1/4-18

No product placeholder

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"

Pipe Bushing Brass 3/4-14 x 1/2-14

Pipe Street Tee Brass 1/2-14 x 1/2-14 x 1/2-14

Pipe Bushing Brass 1/2-14 x 3/8-18

DOT Compression Connector Male Brass 3/8 x 3/8"

Push-to-Connect Run Tee Nylon 1/4 x 1/4 x 1/4"

Push-to-Connect Reducer Nylon 1/4 x 1/2"

Push-to-Connect Branch Tee Nylon 1/8 x 1/8 x 1/8"

Rocker Door and Exterior Molding Retainer

Molding Clip with Sealer Nylon White 11.5 x 21

Phillips Truss Head Sheet Metal Screw Steel 15mm

Product Description

Manufactured with robust materials, compact flow control regulators ensure excellent performance of flow and are perfectly suited for reduced spaces due to their small size. The sensitivity of the adjustment screw provides very precise air flow control and regulation. A locking nut guarantees stability of adjustment against vibration tampering of the flow setting. The adjustment screw and locking nut have been designed for easy manipulation, by hand. Adjustment can be made with a screwdriver and locking by use of a wrench.
• Working temperature: 30°F to +160°F
• Working pressure: 15 to 145 PSI
• Sutable fluids: Compressed air
• Construction:
– Body: Glass-reinforced nylon 6.6 or brass
– Gripping ring: Stainless steel
– Adjustment screw: Nickel-plated brass
– Locking nut: Nickel-plated brass
– Base: Nickel-plated brass with thread sealant on tapered components
Photos are representations of product.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#:	62225P
Manufacturer Model #:	7065 60 14
Style	Flow Control Regulator
Configuration	Compact Meter Out
Tube Size	3/8 "
Thread Size	1/4 "
Thread Style	NPT
Material	Nylon
Wrench Size	.91 "
Working Pressure	15 to 145 PSI
Temperature Range	30 to 160 °F
UNSPSC #:	40183100
TAA Compliant:	No
Weight:	0.17 lb
