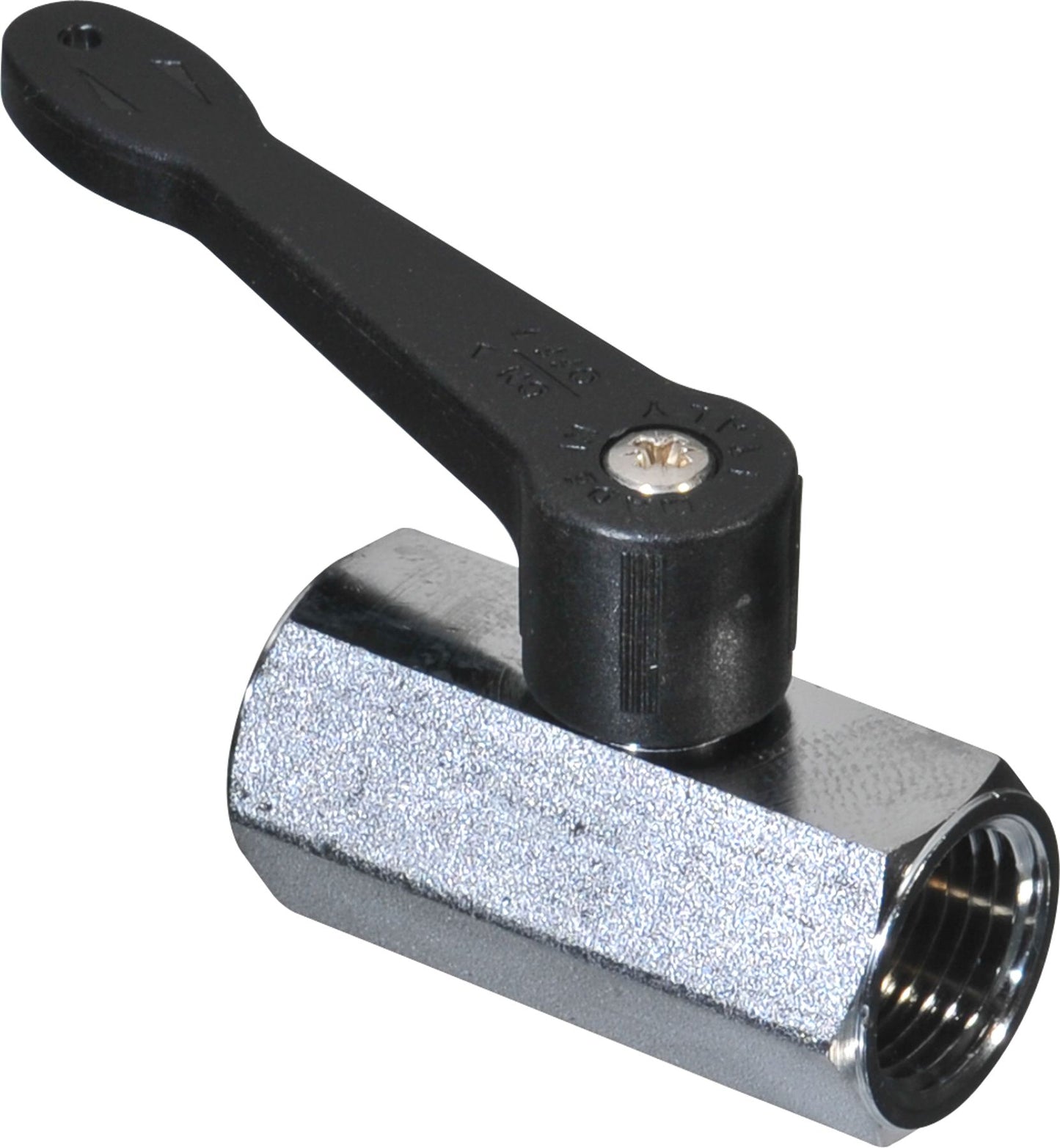

Mini Ball Valve, Brass, 1/2-14 x 1/2-14, Female NPT x Female NPT, 200 WOG PSI
(Pack of
1)
SKU:63157 Item#: 63157
• 24-hour 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• One-piece, drawn, sand blasted brass body incorporating stem neck which provides excellent guidance of the stem
• Finest brass according to EN 12164 specification
• NPT taper ANSI B.1.20.1 female by female threads
• Two FPM O-rings at the stem for maximum safety
• Reinforced nylon black lever or T-handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 200 PSI
• Operating temperature: –4°F to +200°F
Applications:
• Pneumatic
Frequently Bought Together
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
$0.00
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Product Description
• 24-hour 100% seal test guaranteed• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• One-piece, drawn, sand blasted brass body incorporating stem neck which provides excellent guidance of the stem
• Finest brass according to EN 12164 specification
• NPT taper ANSI B.1.20.1 female by female threads
• Two FPM O-rings at the stem for maximum safety
• Reinforced nylon black lever or T-handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 200 PSI
• Operating temperature: –4°F to +200°F
Applications:
• Pneumatic
Technical Specifications
| Item#: | 63157 |
|---|---|
| Fitting Type | Ball Valve |
| Configuration | Mini |
| Material | Brass |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 1/2-14 |
| Fitting Dimension B | 1/2-14 |
| Working Pressure | 200 WOG PSI |
| Temperature Range | -4 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.41 lb |
