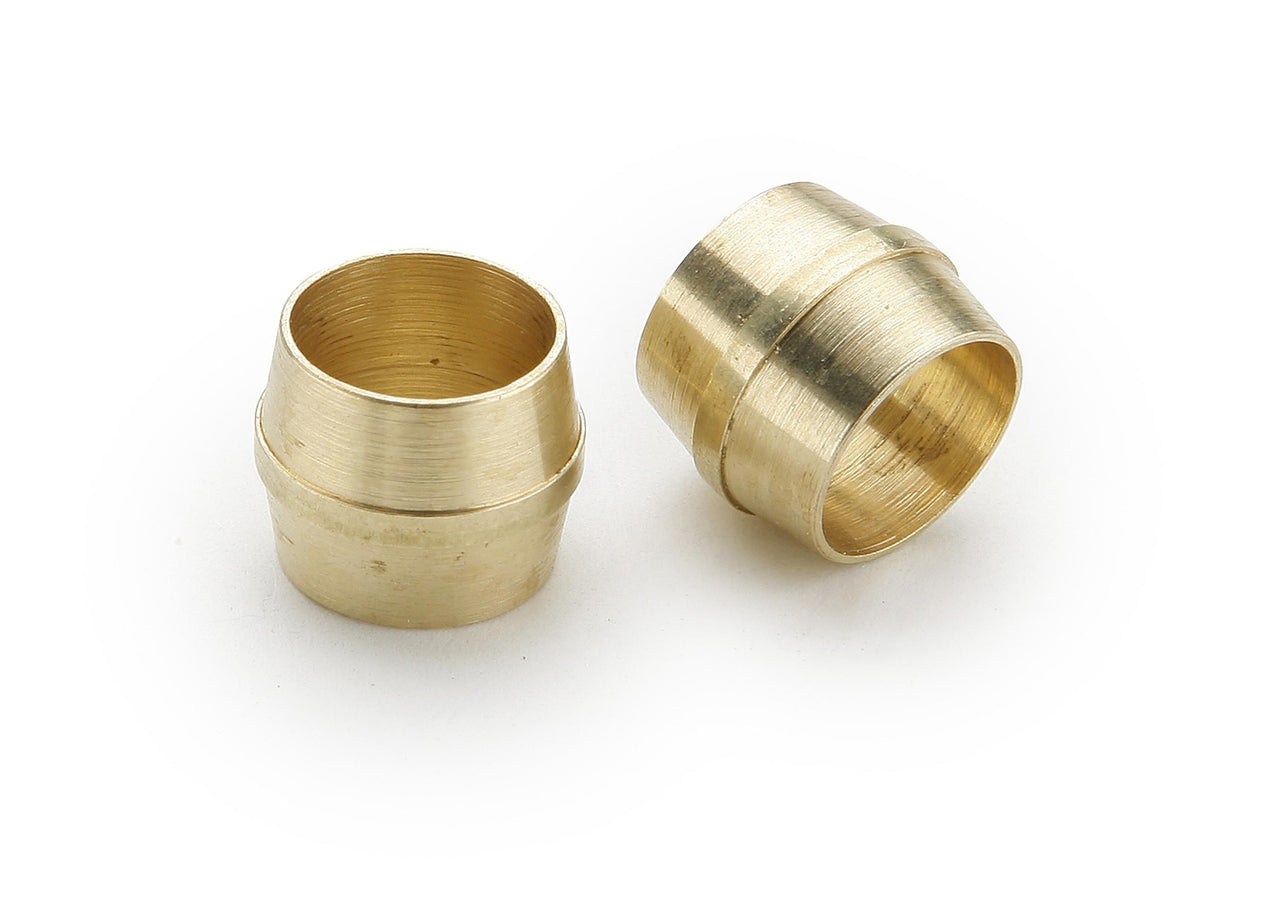

Parker DOT Brass Air Brake Compression - Nylon Compression Sleeve 3/8
(Pack of
100)
SKU:84322P Item#: 84322P
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Frequently Bought Together
Parker DOT Compression - Nylon Female Elbow 90 Degrees 3/8x1/4
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Connector 3/8x1/8
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Elbow 90 Degrees 5/8x3/8
Couldn't load pickup availability
Grease Filler Pump with Universal Loader Adaptors
Couldn't load pickup availability
Hand Operated Bearing Packer
Couldn't load pickup availability
Fluid Transfer Gun 16 oz
Couldn't load pickup availability
DOT Union Tee Nylon 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
DOT Elbow Male Nylon 1/4 x 1/4-18
Couldn't load pickup availability
DOT Compression Elbow Male 45° Brass 3/8 x 1/4"
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 84322P |
|---|---|
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Compression Sleeve |
| Connection Type A | Tube |
| Fitting Dimension A | 3/8 " |
| Parker Reference No. | 60NTA-6 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 0.4 lb |
Product Restrictions
