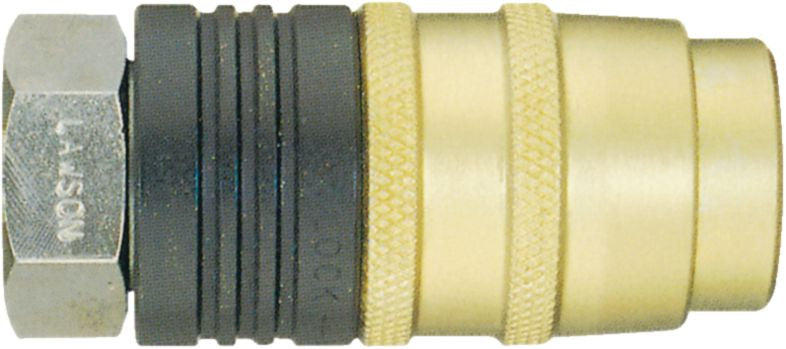

Quick Connect Coupler, Steel, Standard Industrial, 300PSI, Female NPTF, 1/2" Body Size, 1/2-14 Thread Size
(Pack of
1)
SKU:93848 Item#: 93848
Ideal when safe, easy operation is essential. Only eight pounds of force is needed for connection. Minimizes the possibility of hazardous hose whip from sudden release.
• Vent allows connections at zero air pressure
A. Latching Mechanism

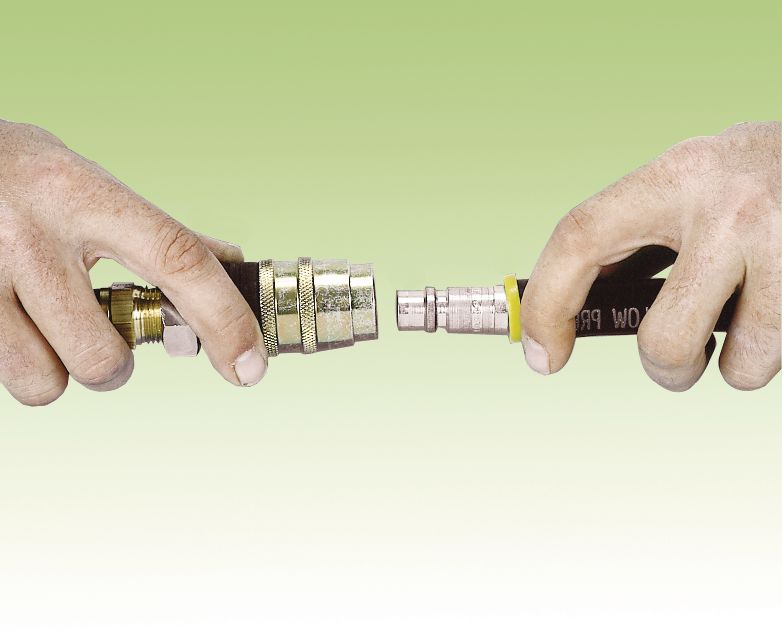

– Ball locking between coupler and nipple, combined with “push to connect” capability, makes Quickonnects simple to operate.
B. Valve Sleeve
– Allows air to be turned on and off with fingertips.
C. Vent Lock
– Bayonet-type sleeve lock reduces the possibility of unintentional disconnect. Recommended for couplings installed in hose lines.
D. Mating Seal
– O-ring seal on the nipple nose. No butt-type seals.
E. Socket
– Accepts Industrial Interchange nipples.
F. Porting
– Multiple air passages to reduce air pressure loss through the coupling.
Industrial Interchange
• For use with Standard or Industrial Interchange design nipples
Frequently Bought Together
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Product Description
Ideal when safe, easy operation is essential. Only eight pounds of force is needed for connection. Minimizes the possibility of hazardous hose whip from sudden release.• Vent allows connections at zero air pressure
A. Latching Mechanism
– Ball locking between coupler and nipple, combined with “push to connect” capability, makes Quickonnects simple to operate.
B. Valve Sleeve
– Allows air to be turned on and off with fingertips.
C. Vent Lock
– Bayonet-type sleeve lock reduces the possibility of unintentional disconnect. Recommended for couplings installed in hose lines.
D. Mating Seal
– O-ring seal on the nipple nose. No butt-type seals.
E. Socket
– Accepts Industrial Interchange nipples.
F. Porting
– Multiple air passages to reduce air pressure loss through the coupling.
Industrial Interchange
• For use with Standard or Industrial Interchange design nipples
Technical Specifications
| Item#: | 93848 |
|---|---|
| Description | Quickonnect |
| Type | Coupler |
| Style | Standard Industrial |
| Body Size | 1/2 " |
| Thread Style | Female NPT |
| Thread Size | 1/2-14 |
| Working Pressure | 300 PSI |
| Material | Steel |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
| Weight: | 0.69 lb |
