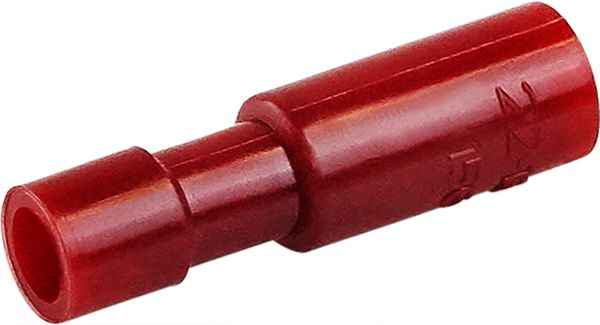

Snap Plug Terminal, Nylon Insulated, 22 to 18 AWG, 5/32" Snap Diameter, 0.157" Bullet Diameter, Red
(Pack of
25)
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
Frequently Bought Together
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 36CP
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
16-14 AWG, Visa Seal™ Female Snap .157 Dia, Blue
Couldn't load pickup availability
Snap Plug Terminal 22 to 18 AWG Red
Couldn't load pickup availability
12-10 AWG, Visa Seal™ Female Snap .157 Dia, Yellow
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Female Disconnect Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
Technical Specifications
| Item#: | 82913 |
|---|---|
| Type | Crimp |
| Style | Nylon Insulated |
| Wire Gauge | 22-18 AWG |
| Receptacle Diameter | 5/32 " |
| Bullet Diameter | 0.157 " |
| Color | Red |
| Description | Male Plug |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
