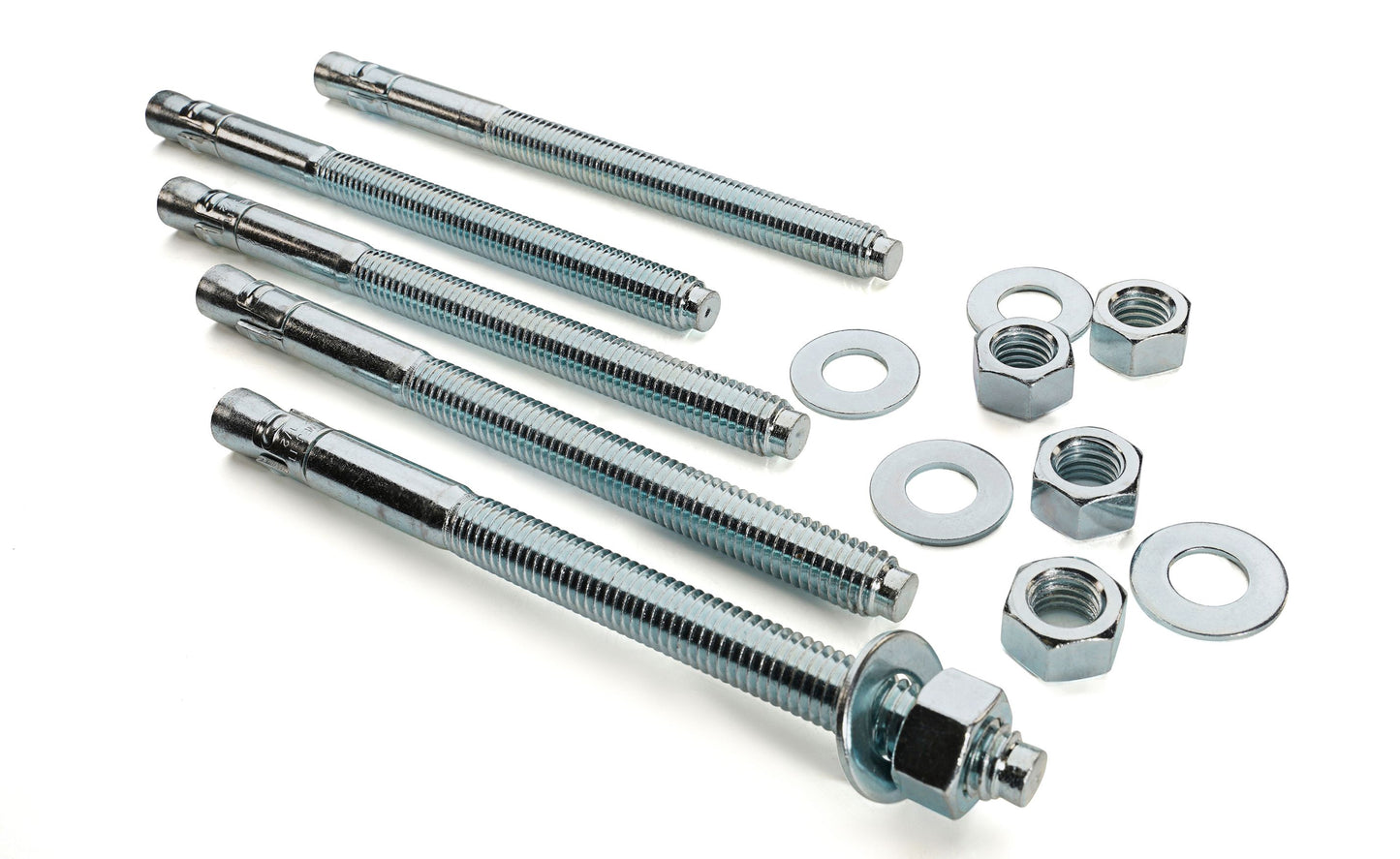

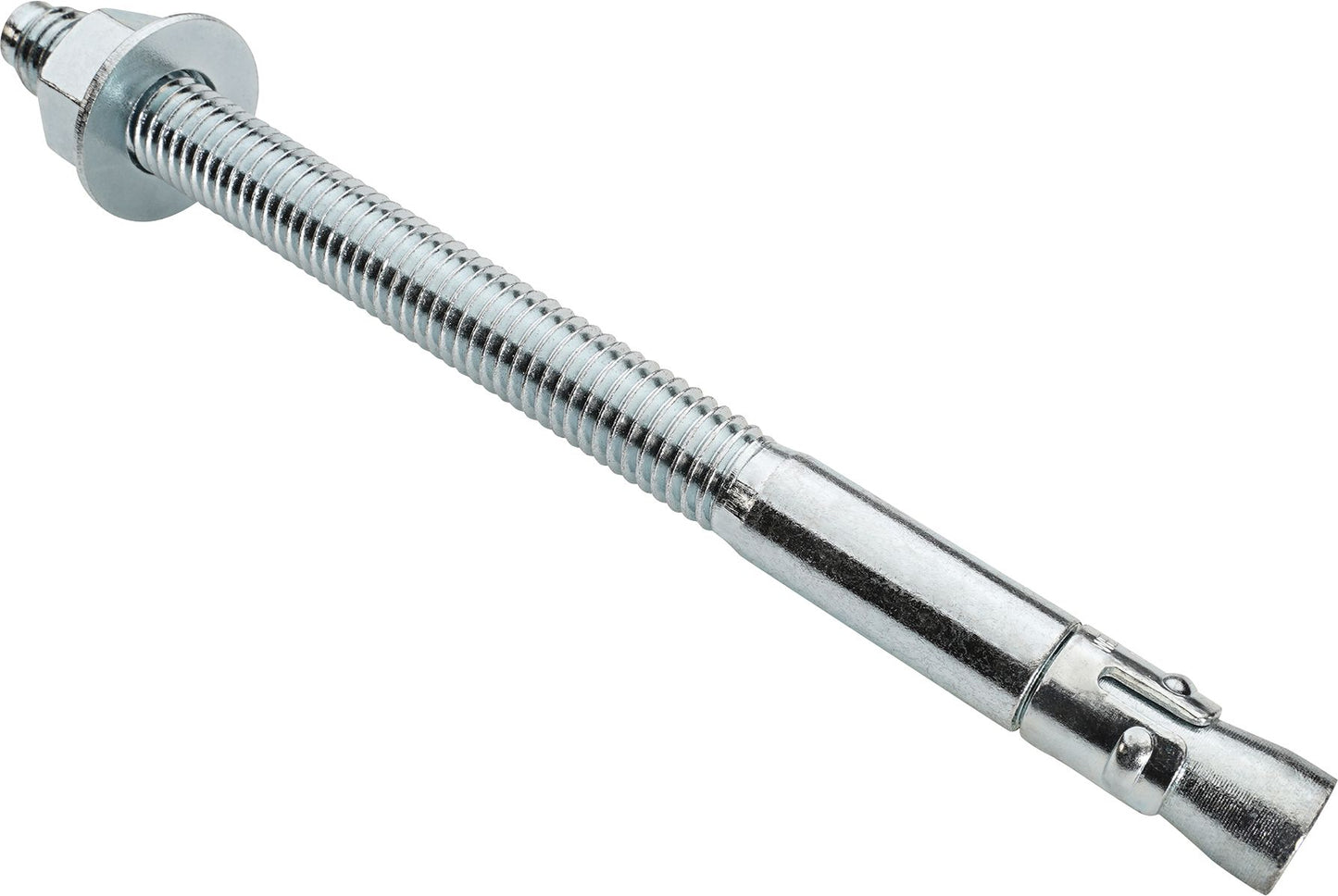

Wedge Type Stud Bolt Anchor Steel 1/2 x 7"
(Pack of
5.0)
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Frequently Bought Together
Masonry Anchor Assortment 700Pcs
Couldn't load pickup availability
Conical Screw Anchor Kit Plastic 101Pcs
Couldn't load pickup availability
E-Z Anchor Kit Steel 41Pcs
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 35mm
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 1/2 x 5-1/2"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor Steel 3/8 x 3-3/4"
Couldn't load pickup availability
Wedge Type Anchor Bolt Steel 3/4 x 5"
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91606 |
|---|---|
| Diameter | 1/2 " |
| Length | 7 " |
| Thread Length | 4-1/2 " |
| Drill Size | 1/2 " |
| Material | Carbon Steel |
| Finish | Bright Zinc |
| Type | Wedge Anchor |
| Proof Test Load | 3,400 lb |

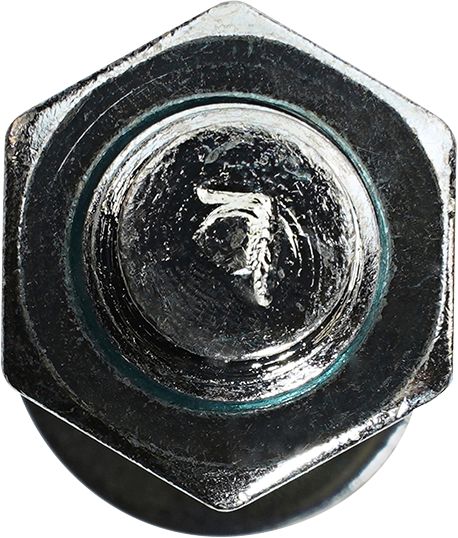

| Length Identification Code | K |
| Size | 1/2X7 " |
| Minimum Embedment | 2-1/8 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 1.78 lb |
Product Restrictions
