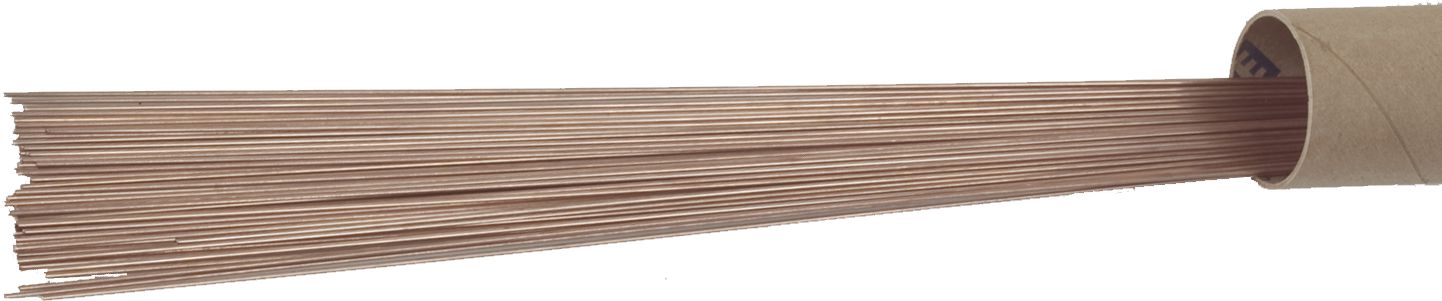

44 Bare Brazing Rod, Copper/Silver, 36"Length, 1/16" Diameter
(Pack of
2)
SKU:CW1838 Item#: CW1838
For a variety of copper and brass applications.
Superior Advantages
• High strength
• Lower cost compared to silver alloys
• Good color match
Silver Solder Substitute
Brazing Range: 1,350°F to 1,550°F (732°C to 843°C)
Recommended Flux: F40 (if needed)
Typical Applications
• Electrical contacts
• Copper wire splicing
• Brass and bronze fittings
• Copper pipes
• Copper to steel
Usage ProcedureUse a slightly carburizing flame to obtain a free-flowing bead. Cronabraze™ 44 does not require fusion of the base metal. For joining copper to copper, no flux is required, but with brass or bronze, F40 flux is needed for a strong, sure bond. It is recommended that 2" to 3" of distance be maintained between the flame cone and the base metal for best results.
Frequently Bought Together
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 3/64X18
$0.00
Couldn't load pickup availability
23 Copper and Steel Flux Coated Brazing Rod 3/32"
$0.00
Couldn't load pickup availability
261 Blue Flux Coated General Purpose Silver Brazing Alloy 1/16X18
$0.00
Couldn't load pickup availability
201 The Elite Bare Brazing Alloy 1/16X18
$0.00
Couldn't load pickup availability
44 Silver Bare Brazing Rod 3/32"
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
11-35 MIG Welding Contact Tip 0.035"
$0.00
Couldn't load pickup availability
Heavy Duty Welding Cart
$0.00
Couldn't load pickup availability
Spool Gun 15ft 150A MIG Welding
$0.00
Couldn't load pickup availability
Product Description
For a variety of copper and brass applications.Superior Advantages
• High strength
• Lower cost compared to silver alloys
• Good color match
Silver Solder Substitute
Brazing Range: 1,350°F to 1,550°F (732°C to 843°C)
Recommended Flux: F40 (if needed)
Typical Applications
• Electrical contacts
• Copper wire splicing
• Brass and bronze fittings
• Copper pipes
• Copper to steel
Usage ProcedureUse a slightly carburizing flame to obtain a free-flowing bead. Cronabraze™ 44 does not require fusion of the base metal. For joining copper to copper, no flux is required, but with brass or bronze, F40 flux is needed for a strong, sure bond. It is recommended that 2" to 3" of distance be maintained between the flame cone and the base metal for best results.
Technical Specifications
| Item#: | CW1838 |
|---|---|
| Welding Process | Brazing |
| Type | Bare |
| Diameter | 1/16 " |
| Length | 36 " |
| Melting Temperature | 1350-1550 °F |
| Color | Copper |
| Base Metal | Silver |
| Recommended Flux | F40 |
| Description | Copper/Brass |
| UNSPSC #: | 23271804 |
| TAA Compliant: | No |
| Weight: | 2.0 lb |
