520N Hydraulic Hose, Urethane, 1-Steel Braided, 3/16" ID, 0.43" OD, 50' Length, 5000PSI, SAE 100R8
(Pack of
50)
SKU:88643 Item#: 88643
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.

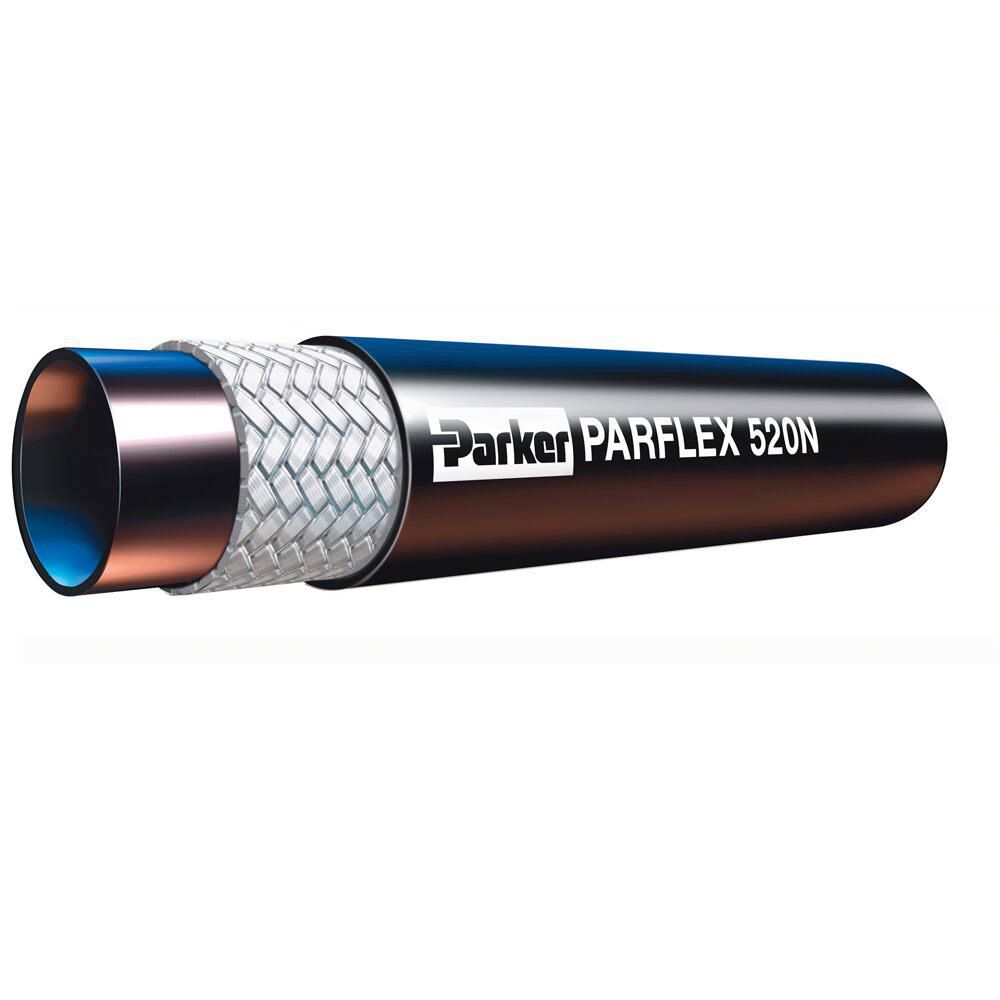

• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Frequently Bought Together
Product Description
Lighter weight and smaller O.D. than 100R2 rubber hose, this hose is well-suited for hydraulic and pneumatic circuits and systems; replaces 100R2 hose whenever greater flexibility, fluid compatibility and cover durability are required.• Polymeric core tube, aramid reinforcement, abrasion-resistant black perforated urethane cover• Not recommended for over-sheave (pulley) applications
SAE 100R8
• Temperature range: –40°F to +250°F (–40°C to +121°C)• Vacuum service: 28 in. Hg• Meets or exceeds SAE 100R8 Specifications
Supplied in one continuous length totaling between 45 and 55 feet.
Technical Specifications
| Item#: | 88643 |
|---|---|
| Type | Thermoplastic Hose |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R8 |
| Manufacturer Series Number | 520N |
| Manufacturer Series Name | Parflex |
| Dash Size | -3 |
| Working Pressure | 5,000 PSI |
| Burst Pressure | 20,000 PSI |
| Minimum Bend Radius | 1-1/2 " |
| Inner Tube Material | Nylon |
| Hose Reinforcement | Aramid Fiber |
| Hose Cover Material | Perforated Urethane |
| Fitting Series | 55 |
| Temperature | -40F to +212F |
| Color | Black |
| Size | 3/16 (-3) |
| Parker Crimp Fitting Series | 55 |
| Swage Die Selection | 88802 |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 3.4 lb |
