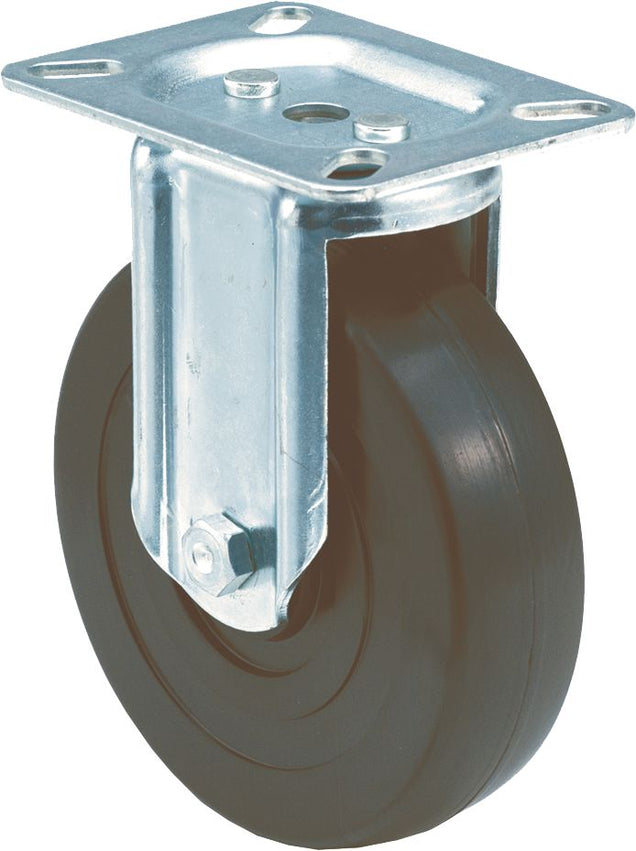

Caster, Rigid, Medium-Duty, Institutional, 5" Diameter, 1-3/8" Width, 6-3/8" Overall Height, 450 Lb Safe Load, Poly Wheel
(Pack of
1)
SKU:10829 Item#: 10829
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.
• Nickel-plated for better corrosion resistance
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, general purpose industrial and commercial applications
Frequently Bought Together
Caster Swivel with Brake Soft Rubber Wheel
$0.00
Couldn't load pickup availability
Caster Rigid Polyurethane Wheel
$0.00
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
$0.00
Couldn't load pickup availability
2ft Fiberglass Step Stand SSF02
$0.00
Couldn't load pickup availability
6ft Fiberglass Leaning Lader L7306
$0.00
Couldn't load pickup availability
Cable Hook and V-Rung Assembly 92-88
$0.00
Couldn't load pickup availability
Caster Rigid Polyurethane Wheel
$0.00
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
$0.00
Couldn't load pickup availability
Caster Swivel Heavy-Duty 5 x 2" Wheel
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
PolypropyleneThese wheels are made of a polypropylene compound that is an excellent, multi-application performer. These wheels exhibit superior resistance to abrasion, compression set, acids, oils, grease and impact. They provide easy rolling and good floor protection. Tread hardness: 75 to 85 Shore D.• Nickel-plated for better corrosion resistance
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, general purpose industrial and commercial applications
Technical Specifications
| Item#: | 10829 |
|---|---|
| Type | Rigid |
| Style | Medium Duty |
| Wheel Type | Polypropylene |
| Wheel Diameter | 5 " |
| Wheel Width | 1-3/8 " |
| Load Rating | 450 lb |
| Top Plate Overall Size | 3-1/8 x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4 x 3 to 2-3/8 x 3-3/8 " |
| Top Plate Hole Diameter | 3/8 x 3/4 slots " |
| Finish | Nickel Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 2.5 lb |
