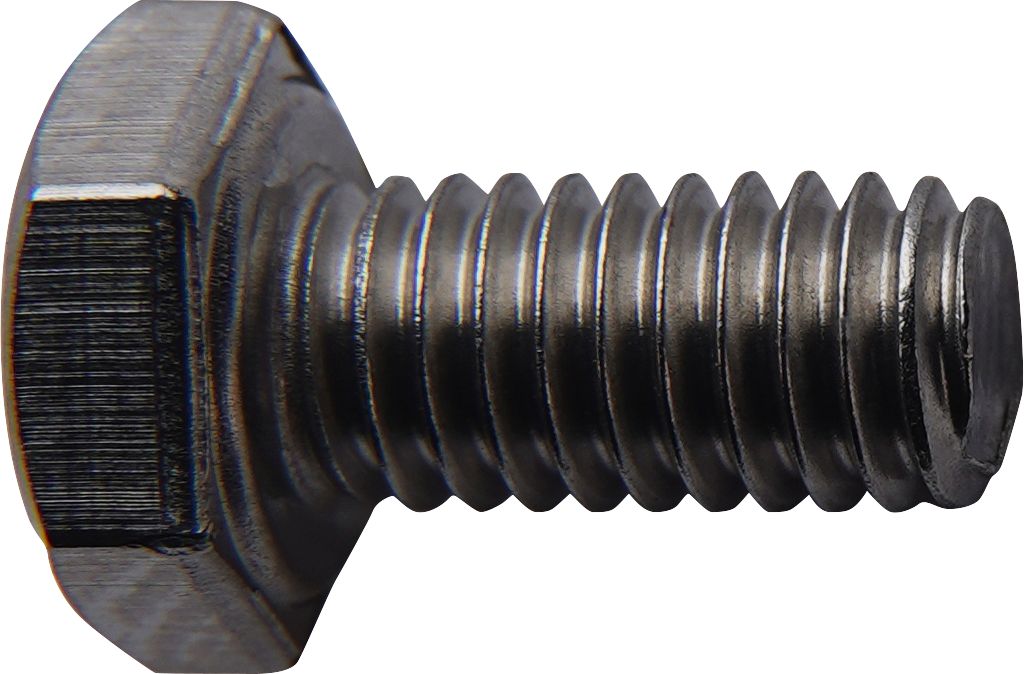

DIN 933 Hex Cap Screw Grade A2 SS M8-1.25 x 25mm
(Pack of
25.0)
• A2 Stainless Steel is similar to AISI Type 18-8
• Tensile strength – 689.5 MPa (80,000 PSI)
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 11-46
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M10-1.25 x 35mm
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M10-1.5 x 40mm
Couldn't load pickup availability
Hex Cap Screw Grade 10.9 Alloy Steel M10-1.5 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 30mm
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Product Description
• A2 Stainless Steel is similar to AISI Type 18-8• Tensile strength – 689.5 MPa (80,000 PSI)
Technical Specifications
| Item#: | 27529 |
|---|---|
| Style | Industry Standard |
| Diameter | M8 |
| Thread Pitch | 1.25 mm |
| Thread | Coarse |
| Length | 25 mm |
| Type | Hex Cap Screw |
| Across Flats | 13 mm |
| Material | Stainless Steel |
| Grade | A2 |
| Finish | Plain |
| Tensile Strength | 689.5 MPa |
| Specifications | DIN 933 |
| Head Style | Hex |
| Head Height | 5.3 mm |
| Thread Length | Full |
| Thread Length Minimum | Full |
| UNSPSC #: | 31161501 |
| TAA Compliant: | No |
| Weight: | 0.75 lb |
