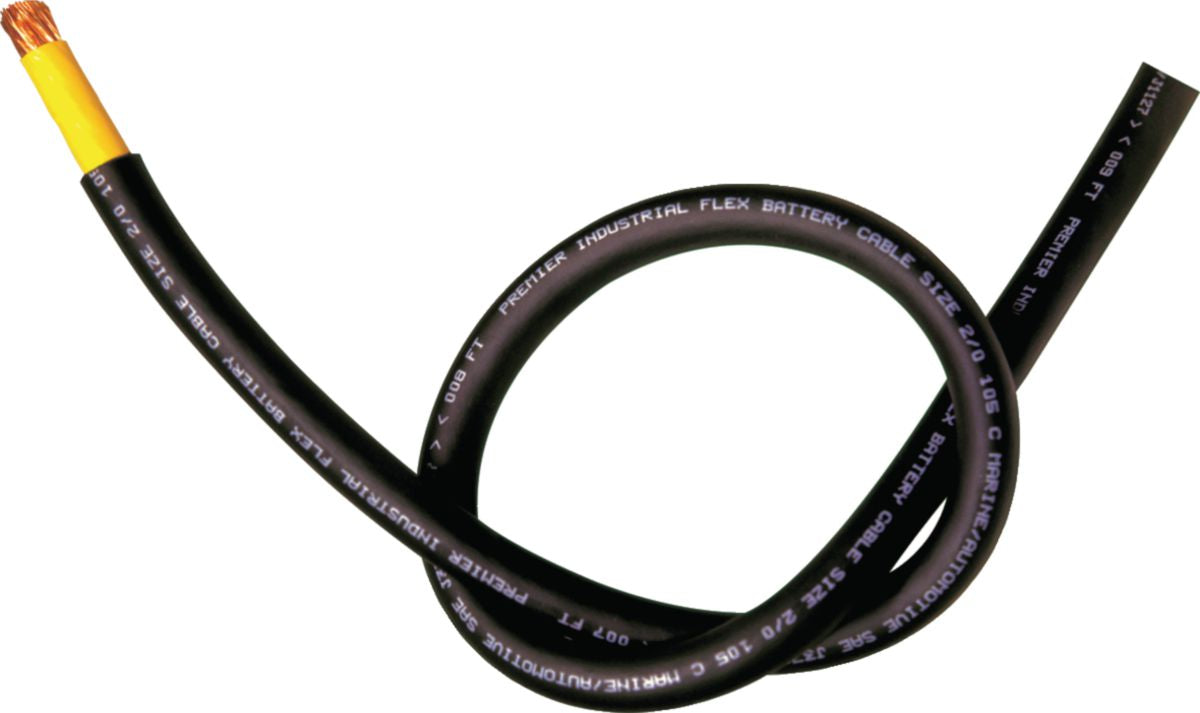

Flexible Battery Cable, 6 AWG, Total Strands 259, 50' Length, Black, 600 Volts, Blue-Crimp Color Code, Copper Conductor
(Pack of
1)
• Contains up to three times the strand count of regular battery cables
• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 2-69
Frequently Bought Together
Flexible Battery Cable 1 AWG Black 50'
Couldn't load pickup availability
Flexible Battery Cable 1 AWG Red 50'
Couldn't load pickup availability
Battery Cable 2 AWG 27" Black
Couldn't load pickup availability
Lithium Coin Cell Battery #2032 3V
Couldn't load pickup availability
Procell AA Alkaline Battery 1.5V
Couldn't load pickup availability
Nylon Cable Tie 5-1/2" Black
Couldn't load pickup availability
Model 950 12 Volt Portable Power Pack
Couldn't load pickup availability
Model 1800 12 Volt Portable Power Pack
Couldn't load pickup availability
Deutsch-Style - DTP Series Plug, 4 Positions Receptacle
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Product Description
• Contains up to three times the strand count of regular battery cables• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Technical Specifications
| Item#: | P52457 |
|---|---|
| Cable Gauge | 6 |
| Total Strands | 259 |
| Color | Black |
| Volts | 600 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 221 °F |
| Length | 50 ft |
| Crimp Color Code | Blue |
| Amperage Capacity at 140°F (60°C) | 80 A |
| Amperage Capacity at 167°F (75°C) | 95 A |
| Amperage Capacity at 194°F (90°C) | 105 A |
| Specifications | SAE J378C/J1127, UL 62-SJE,SE,SEO |
| Style | Premium Flexible |
| Type | Battery Cable |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 6.91 lb |
