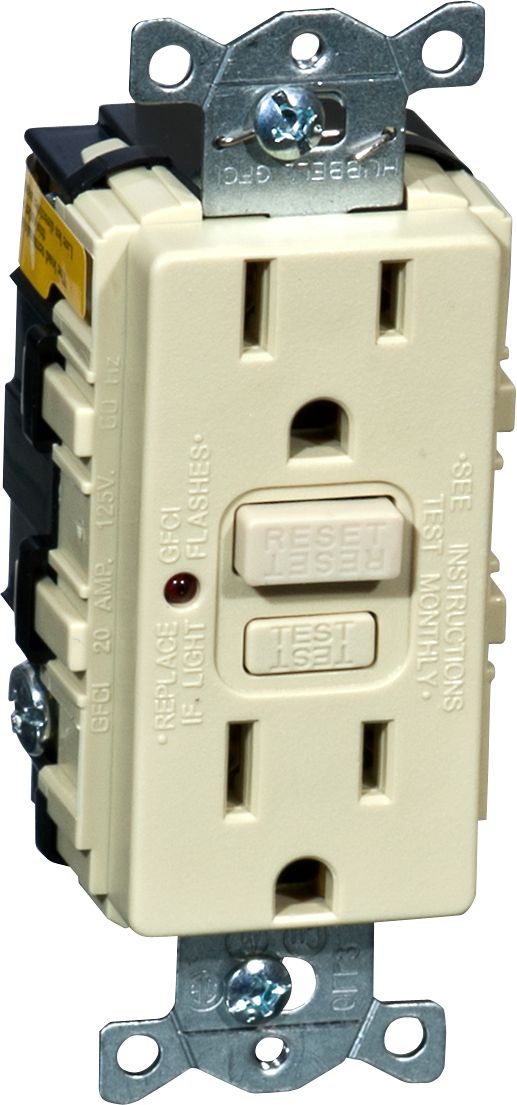

Commercial Grade Ground Fault Receptacle, 15 Amps, 125 Volts, Ivory, NEMA 5-15R
(Pack of
1)
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off
• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Miniature Incandescent Bulb 12V 3CP
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
H11 Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Ground Fault Receptacle 20A 125V Brown
Couldn't load pickup availability
Locking Receptacle 20A 250V
Couldn't load pickup availability
Thermoplastic Connector 2 Pole 3 Wire 15A 125V
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Ground Fault Receptacle 20A 125V Brown
Couldn't load pickup availability
Rocker Switch SPST, 14V DC 20A , 28V DC 10A, Black Screw Term Sqr (On)
Couldn't load pickup availability
Push-Pull Switch SPST 75A 6-28V Off-On
Couldn't load pickup availability
Product Description
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Technical Specifications
| Item#: | 15507 |
|---|---|
| Style | LED Ground Fault Receptacle |
| Volts | 125 |
| NEMA Configuration | 5-15R |
| Color | Ivory |
| Approvals | UL 943 Standard, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | No |
| Weight: | 0.37 lb |
