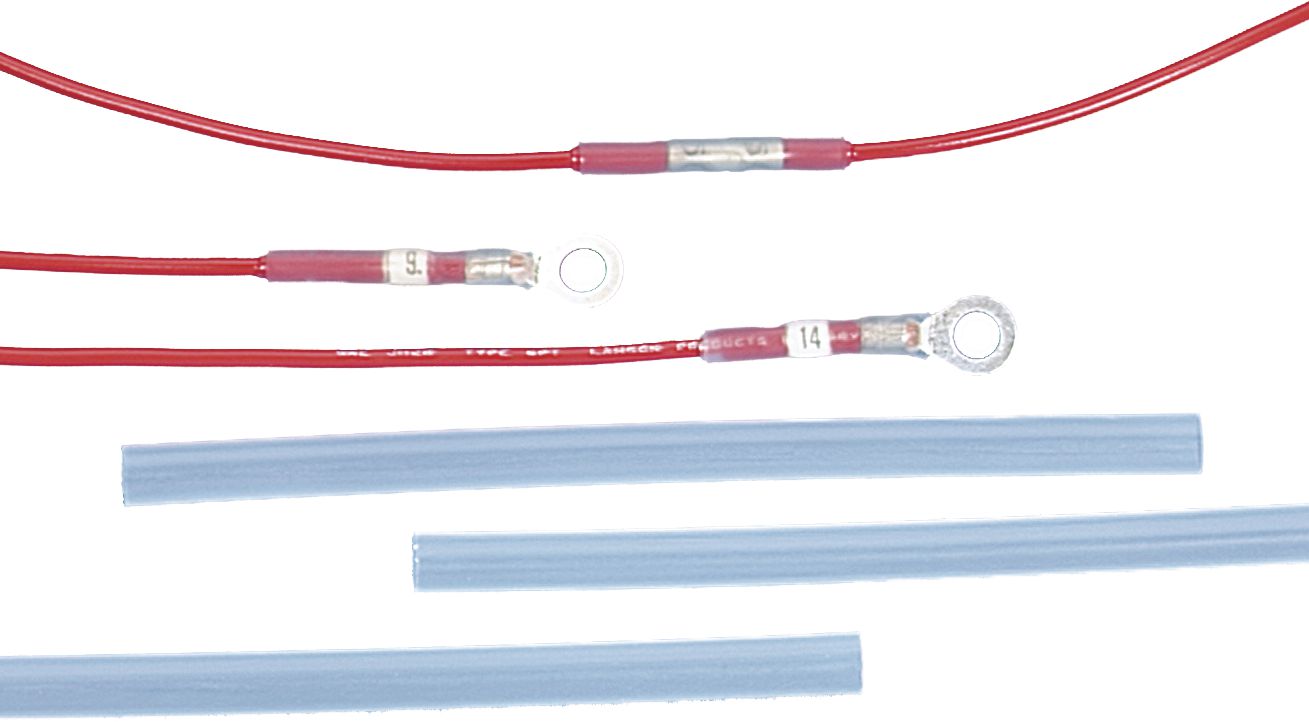

Heat Shrink Tubing, 10/3 SJO AWG, Clear-Seal, 1' Length, 1" ID Before and 0.394" ID After Shrinkage, 3:1 Shrink Ratio
(Pack of
5)
• 3:1 shrink ratio

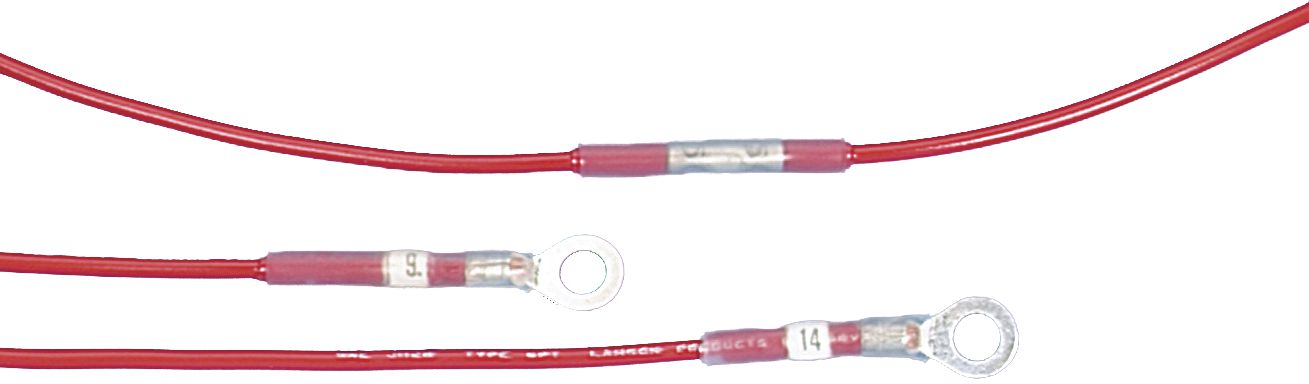

• Dual wall design protects electrical connections from corrosion, abrasion, moisture, contaminants, breakage and wire pull-out
• Clear – allows visual examination of connection
• Remains flexible after cooling to make final wiring assembly easier
• Temperature range: –67°F to +230°F (–55°C to +110°C)
• Shrink temperature: 240°F (115°C)
• Voltage rating in USA 600V; in Canada 32V
• DOD MIL-DTL-23053/5 Class 2 Specifications
• Provides excellent strain relief for terminals and connections
• Seals wire identification markers and insulates tool handles
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 2-4
Frequently Bought Together
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Procell AAA Alkaline Battery 1.5V
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 4/0 to 400 MCM Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 2 to 4/0 AWG Red
Couldn't load pickup availability
Heat Shrink Tubing 8 to 2 AWG Clear
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Silifuse Identification Tape, Red, 1 In Width x .02 Thick x 10Ft Lengt
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
Couldn't load pickup availability
Product Description
• 3:1 shrink ratio• Dual wall design protects electrical connections from corrosion, abrasion, moisture, contaminants, breakage and wire pull-out
• Clear – allows visual examination of connection
• Remains flexible after cooling to make final wiring assembly easier
• Temperature range: –67°F to +230°F (–55°C to +110°C)
• Shrink temperature: 240°F (115°C)
• Voltage rating in USA 600V; in Canada 32V
• DOD MIL-DTL-23053/5 Class 2 Specifications
• Provides excellent strain relief for terminals and connections
• Seals wire identification markers and insulates tool handles
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | P29945 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 10/3 SJO AWG |
| Length | 1 ft |
| Color | Clear |
| I.D. Before Shrinkage | 1 " |
| I.D. After Shrinkage | 0.394 " |
| Shrink Ratio | 3 to 1 |
| Wall Thickness Before Shrinkage | 0.025 " |
| Wall Thickness After Shrinkage | 0.075 " |
| Voltage Rating | 600 V |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 240 F |
| Approvals | DOD MIL-DTL-23053/5 Class 2 Specifications |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.21 lb |
