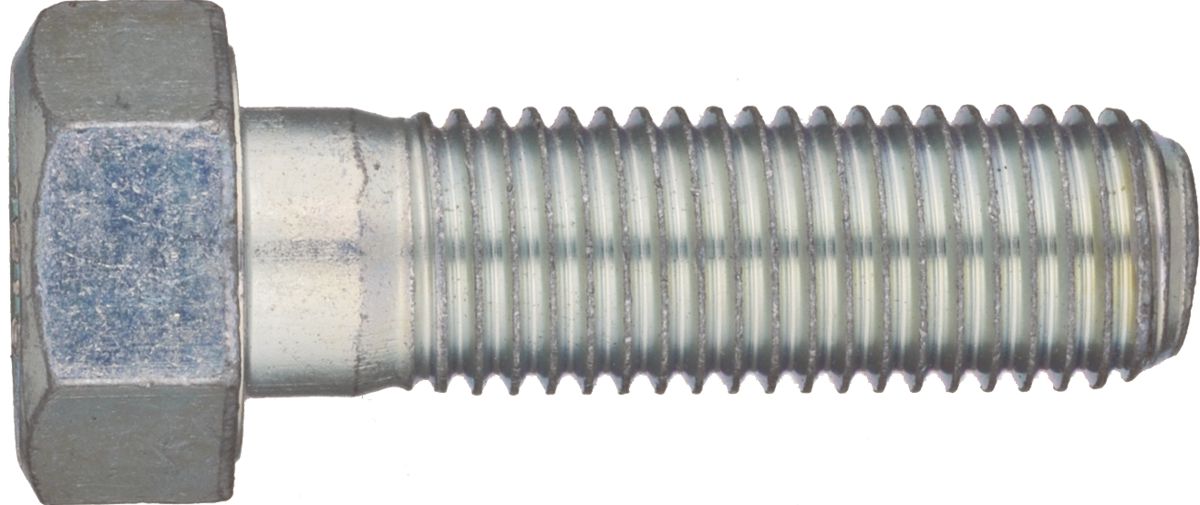

DIN 931 Hex Cap Scrw, Property Class 12.9, Alloy S, Zinc Finish, Coarse Thrd, 15mm Hd Height, 30mm Across Flats, M20-2.5 x 80mm
(Pack of
3)
SKU:84502A Item#: 84502A
The MJ Series thread form that Lawson uses on its cap screws offers improved fatigue strength over common threads. The more generous root radius puts more material at the key stress points of the threads.
• The metric equivalent of Lawson’s Tru-Torq® fasteners
• Exceeds standard 10.9 strength characteristics by 25% for that extra margin of safety
• Dimensions conform to ISO 4014 and 4017 specifications, except for increased head height for better wrenching ability
• Special fatigue-resistant MJ (UNJ) thread form that meets ANSI dimensions
• Fully traceable to Lawson
• Property Class 12.9 – 1,242 MPa (180,000 PSI) minimum ultimate tensile strength
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-32
Frequently Bought Together
Hex Cap Screw Grade 10.9 Alloy Steel M6-1 x 20mm
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 5/8-18 x 2-1/2"
Couldn't load pickup availability
DIN 6921 Hex Flange Bolt Grade 8.8 M6-1 x 16mm
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M10-1.25 x 20mm
Couldn't load pickup availability
Hex Cap Screw Grade 5 1/4-20 x 3"
Couldn't load pickup availability
Hex Cap Screw Grade 10.9 Alloy Steel M10-1.5 x 30mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 35mm
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Swirl Remover 16oz
Couldn't load pickup availability
Adhesive-Back Shim Stock 9/16 x 1" x 30'
Couldn't load pickup availability
DTM Primer Tan
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Product Description
The MJ Series thread form that Lawson uses on its cap screws offers improved fatigue strength over common threads. The more generous root radius puts more material at the key stress points of the threads.• The metric equivalent of Lawson’s Tru-Torq® fasteners
• Exceeds standard 10.9 strength characteristics by 25% for that extra margin of safety
• Dimensions conform to ISO 4014 and 4017 specifications, except for increased head height for better wrenching ability
• Special fatigue-resistant MJ (UNJ) thread form that meets ANSI dimensions
• Fully traceable to Lawson
• Property Class 12.9 – 1,242 MPa (180,000 PSI) minimum ultimate tensile strength
Technical Specifications
| Item#: | 84502A |
|---|---|
| Style | Premium |
| Diameter | M20 |
| Thread Pitch | 2.5 mm |
| Thread | Coarse |
| Length | 80 mm |
| Type | Hex Cap Screw |
| Across Flats | 30 mm |
| Material | Alloy Steel |
| Grade | 12.9 |
| Finish | Bright Zinc |
| Tensile Strength | 1,242 MPa |
| Specifications | DIN 931 |
| Head Style | High Hex |
| Head Height | 15 mm |
| Thread Length | Partial |
| Thread Length Minimum | 46 mm |
| UNSPSC #: | 31161501 |
| TAA Compliant: | Yes |
| Weight: | 1.78 lb |
