Hoist Ring, Flip-Flop, 12,000 lb Load Limit
(Pack of
1.0)
• Forged chrome moly steel
• Heat treated
• Black oxide finish
• Pivot 180° under load
• 6:1 design factor
• High strength screws are 100% Magnaflux inspected
• Rings and bodies are Magnafluxed per ASTM 1444
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
*Mounting screws included
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Shoulder Eyebolt, With Nut, Galvanized, 3/8" x 5"
Couldn't load pickup availability
Eyebolt, With Nut, Galvanized, 1" x 9"
Couldn't load pickup availability
Eyebolt, Machinery, Self-Colored, 7/16" x 1-3/8"
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 2,250 lb Load Limit
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, 1,000 lb Load Limit
Couldn't load pickup availability
Fast-Lok® Plate Lfting System
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope Uncoated 1960 Safe Load 5/16" x 100'
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Product Description
• Forged chrome moly steel• Heat treated
• Black oxide finish
• Pivot 180° under load
• 6:1 design factor
• High strength screws are 100% Magnaflux inspected
• Rings and bodies are Magnafluxed per ASTM 1444
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
*Mounting screws included
Technical Specifications
| Item#: | 1423415 |
|---|---|
| Type | Flip-Flop |
| Thread Size | 1/2-13 |
| Screw Length | 2-1/4 " |
| Number of Screws | 4 |
| Material | Chrome Molly Steel |
| Finish | Black Oxide |
| Working Load Limit | 12,000 lb |
| Swivel | 0 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 20-25 ft·lbf |

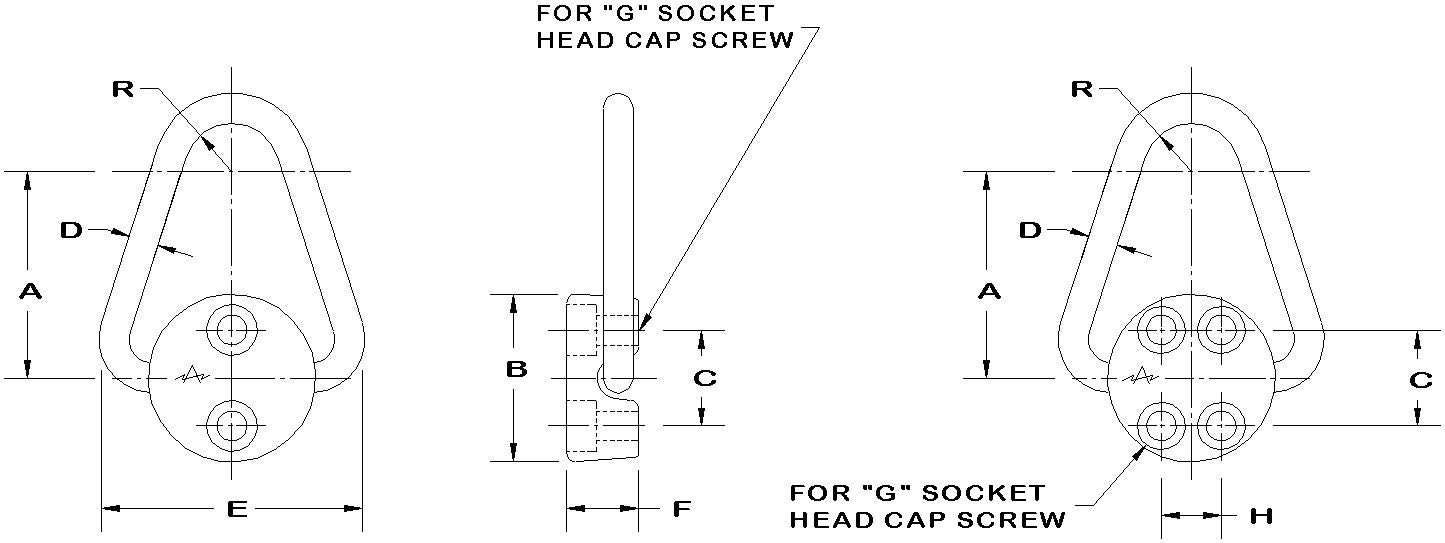

| Dimension A | 4 " |
| Dimension B | 3-1/8 " |
| Dimension C | 1-5/8 " |
| Dimension D | 3/4 " |
| Dimension E | 5-1/4 " |
| Dimension F | 1-3/8 " |
| Dimension G | 1/2 " |
| Dimension H | 1-1/4 " |
| Dimension R | 7/8 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
| Weight: | 0.0 lb |
