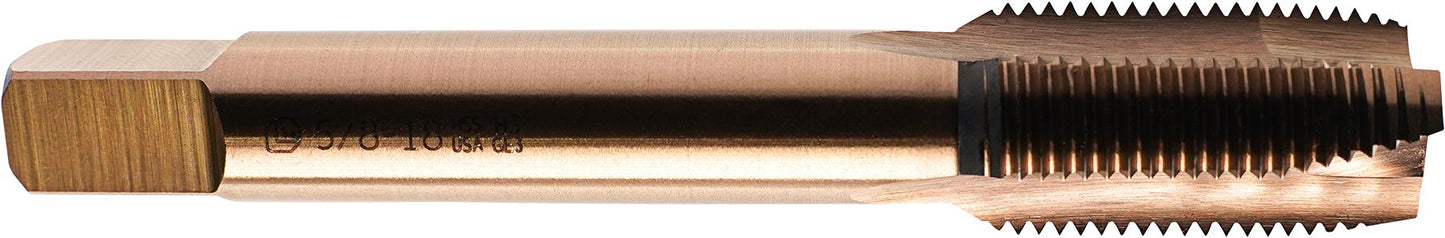

HSS Spiral Point Hand Tap 5/8-18
(Pack of
1.0)
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Sheet Metal Drill Bit Alloy Steel 5/32"
Couldn't load pickup availability
Polymer Wheel Rubber Eraser 30mm
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5/16-18
Couldn't load pickup availability
HSS Spiral Point Hand Tap M3 x 0.5
Couldn't load pickup availability
Pilotdrive Cryotap #8-32 Starter Hand Tap
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M12 x 1.75
Couldn't load pickup availability
4-Flute HSS Taper Hand Tap 3/8-16
Couldn't load pickup availability
3-Flute HSS Taper Hand Tap 3-48
Couldn't load pickup availability
Blade Disposal Container
Couldn't load pickup availability
3Pc Multi-Purpose Scraper/Pry Bar Set
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 3/16"
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61143 |
|---|---|
| Type | Fractional |
| Diameter | 5/8 " |
| Pitch | 18 |
| Flutes | 3 |
| Thread Length | 1-3/32 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | 37/64 " |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
