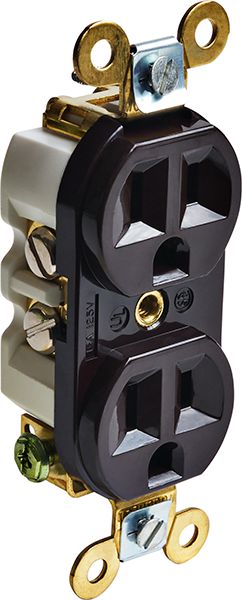

Industrial Duty Duplex Receptacle, 15 Amps, 125 Volts, Brown, NEMA 5-15R
(Pack of
1)
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body
• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Lithium Battery #2025 3V
Couldn't load pickup availability
Energizer® AAA Alkaline Battery 1.5V
Couldn't load pickup availability
Thermoplastic Plug 15A 125V Yellow
Couldn't load pickup availability
Industrial Duty Locking Connector 20A 125/250V
Couldn't load pickup availability
Wall Plate for Toggle Switch 302/302 SS
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Disconnect Switch SPST 36VDC On/Off
Couldn't load pickup availability
Industrial Duty Locking Plug 2-Pole 3-Wire 20A
Couldn't load pickup availability
Weather Protected Connector Boot 2 Pole 3 Wire 30A
Couldn't load pickup availability
Product Description
• All-nylon housing and faceplate are sonically welded together to form a solid one-piece body• Self-grounding spring clip attaches to box mounting screw to assure reliable grounding
• The yoke and ground contacts are one continuous piece of heavy gauge brass for superior conductivity and spring tension life
• Line contacts have triple-wipe and ground contacts have double-wipe connection points
• Solid center rivet provides positive grounding path
• No. 10 ground screws increase safety along the grounding path
• Eight back and four side openings for back and side wiring – accepts wire sizes up to 10 Ga.
• For high-use industrial and commercial applications
Technical Specifications
| Item#: | 80815 |
|---|---|
| Style | Industrial-Duty Straight Blade Duplex Receptacles |
| Volts | 125 |
| Description | Duplex |
| NEMA Configuration | 5-15R |
| Color | Brown |
| Approvals | UL, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.22 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
