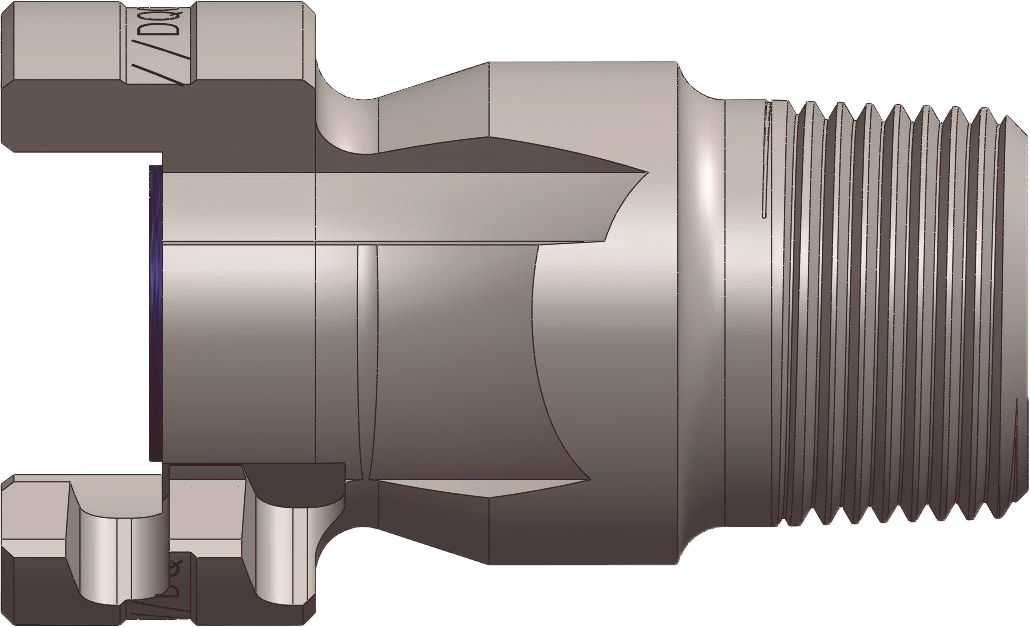

Industrial Quick Disconnect Nipple Brass 1/2 Thor Male NPTF 1-11-1/2
(Pack of
1)
SKU:20960 Item#: 20960
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries. OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories.
• Operating pressure: 300 PSI
• Coupled burst pressure: 4,800 PSI
• Flow: 250 CFM
• Locking mechanism: Latch fingers
• Dixon P-Series
Product Description
Interlocking finger connection with single or dual locking sleeves for maximum security. “Push-Twist and Click” connection provides a positive lock when connected. Used for air, water and nitrogen. Used by refineries. OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories.• Operating pressure: 300 PSI
• Coupled burst pressure: 4,800 PSI
• Flow: 250 CFM
• Locking mechanism: Latch fingers
• Dixon P-Series
Technical Specifications
| Item#: | 20960 |
|---|---|
| Description | Industrial Quick Disconnect |
| Type | Nipple |
| Style | Thor |
| Body Size | 1/2 " |
| Thread Style | Male NPTF |
| Thread Size | 1-11-1/2 |
| Working Pressure | 300 PSI |
| Material | Brass |
| Length | 3.25 " |
| Seal Material | Nitrile (Buna-N) |
| Hex Size | 1-3/8 " |
| Dixon Number | P4M8-B |
| Locking Mechanism | Latch Fingers |
| Flow | 255 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.95 lb |
