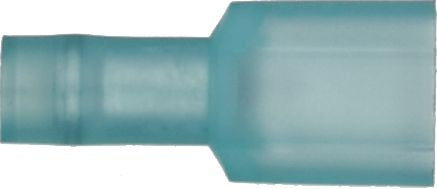

Male Quick Slide Terminal 16 to 14 AWG Blue
(Pack of
25.0)
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 2-21
Frequently Bought Together
Female Quick Slide Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Female Disconnect Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
MICRO2 Series Blade Fuse 5A Tan
Couldn't load pickup availability
Color-Coded Nylon Cable Tie 8" Yellow
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Wheel House Molding Split Rivet Aluminum 3/16"
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Fork Pigtail Connector 12 AWG White
Couldn't load pickup availability
Watertight Wire Nuts 3 X 22 or 4 X 12 or 3 X 10 Gauge Light Blue
Couldn't load pickup availability
High Temperature Wire Connector 22 to 16 AWG
Couldn't load pickup availability
Product Description
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Technical Specifications
| Item#: | 82924 |
|---|---|
| Type | Crimp |
| Wire Gauge | 16-14 AWG |
| Tab Width | 1/4 " |
| Connection Type | Male |
| Color | Blue |
| Style | Electro-Lok Fully-Insulated Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.13 lb |
