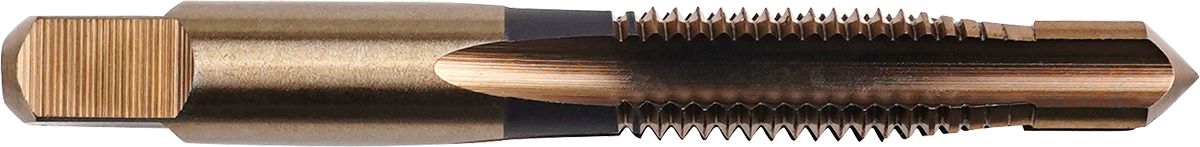

Pilotdrive Cryotap M10 x 1.5 Starter Hand Tap
(Pack of
1)
SKU:DY80636020 Item#: DY80636020
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
Spot Weld Remover Drill Bit HSS 2-3/4" (M8)
Couldn't load pickup availability
Cryobit 1/8" Dia. Maintenance Drill Bit , 135o Split Point, No Flats
Couldn't load pickup availability
Reinforced Mini Cut-Off Wheel 3"
Couldn't load pickup availability
Quick Seal 2000 Sprayable Seam Sealer Black
Couldn't load pickup availability
Ure-Foam Expandable Foam Sound Deadener 10fl.oz
Couldn't load pickup availability
Flex-E-6001 Seam Sealer with Turbo Mixer
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
HSS Spiral Point Hand Tap M3 x 0.5
Couldn't load pickup availability
Pilotdrive Cryotap #8-32 Starter Hand Tap
Couldn't load pickup availability
HSS Spiral Point Hand Tap 1-8
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap 5/16-18
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M16 x 1.5
Couldn't load pickup availability
Cryo-Drap 7/16"-14 Drill & Tap Combo, 135o Split Point, W/Flats
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 3/16"
Couldn't load pickup availability
Interchangeable Hex Bit Set 24Pc SAE
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Cryophase™: Thermal cycle cryogenic treatment
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80636020 |
|---|---|
| Type | Metric |
| Diameter | M10 |
| Pitch | 1.5 mm |
| Flutes | 4 |
| Overall Length | 2-15/16 " |
| Recommended Drill Size | 8.5 mm |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
