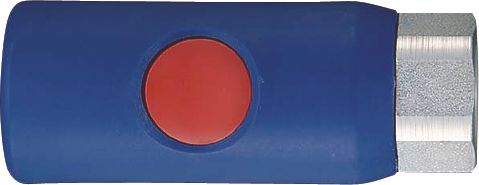

Push-Button Coupler, Steel with Plastic Cover, Tru-Flate Design, Female NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:64497 Item#: 64497
Push-Button Air Couplers are made for simplicity…just push the button to release. The release button is recessed to prevent accidental disconnect. Convenient color coding indicates which plug type it will accept: Industrial Interchange, ARO 210 or Tru-Flate. Extremely durable – constructed of steel components encased in a high-impact, non-marring body.
• Body color: Blue with red button
• Note: Does not qualify as a safety coupler. Outside plastic covering indicates if the coupler is a regular coupler (blue) or a safety coupler (black)
• Manufactured to demanding ANSI and ISO standards – use of compatible plugs of the same high standard is recommended
• Unique non-scratching boots
• Maximum working pressure: 175 PSI
• Temperature range: 5°F to 160°F (–15°C to +71°C)
Tru-Flate Design
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 10-46
Frequently Bought Together

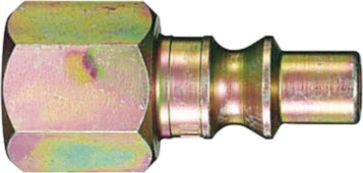

Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Hose End Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Street Tee Brass 1/2-14 x 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Air Hose Ferrule Brass 1/2"
$0.00
Couldn't load pickup availability
Water Line Coupling Brass 3/4"
$0.00
Couldn't load pickup availability
Universal Air Coupler Brass 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Nylon Cable Tie 4" Black
$0.00
Couldn't load pickup availability
Halogen Miniature Bulb 55W 12V
$0.00
Couldn't load pickup availability
Molding Tape Adhesion Promoter Clear 7.4fl.oz
$0.00
Couldn't load pickup availability
Product Description
Push-Button Air Couplers are made for simplicity…just push the button to release. The release button is recessed to prevent accidental disconnect. Convenient color coding indicates which plug type it will accept: Industrial Interchange, ARO 210 or Tru-Flate. Extremely durable – constructed of steel components encased in a high-impact, non-marring body.• Body color: Blue with red button
• Note: Does not qualify as a safety coupler. Outside plastic covering indicates if the coupler is a regular coupler (blue) or a safety coupler (black)
• Manufactured to demanding ANSI and ISO standards – use of compatible plugs of the same high standard is recommended
• Unique non-scratching boots
• Maximum working pressure: 175 PSI
• Temperature range: 5°F to 160°F (–15°C to +71°C)
Tru-Flate Design
Technical Specifications
| Item#: | 64497 |
|---|---|
| Description | Push-Button Coupler |
| Type | Coupler |
| Style | Tru-Flate |
| Body Size | 1/4 " |
| Thread Style | Female NPT |
| Thread Size | 1/4-18 |
| Working Pressure | 175 PSI |
| Material | Steel with Plastic Cover |
| Flow | 26 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
