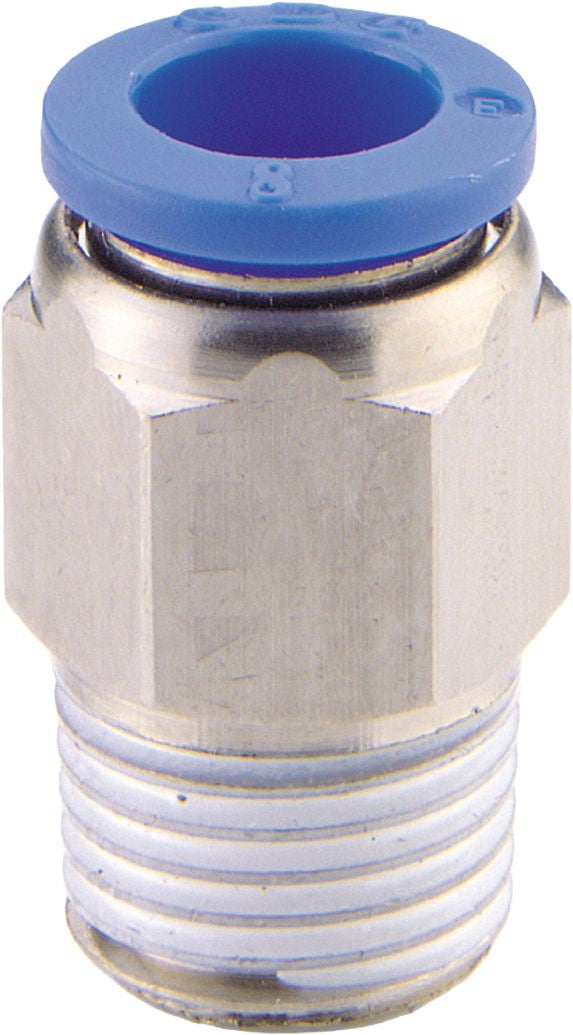

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 (8mm) x 1/8", Tube x Male NPT, 150 PSI Working Pressure
(Pack of
3)
SKU:87621 Item#: 87621
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Nylon Metric Tubing 4mm OD x 25m Natural
$0.00
Couldn't load pickup availability
Nylon Tubing 1/4" OD x 100' Translucent
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Polyoxymethlene, 1/2 x 1/2"
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Tee Brass 3/8-18 x 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Push-to-Connect Y Union Nylon 5/16 x 5/16" x 10 mm
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 1/8 x 1/8"
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 87621 |
|---|---|
| Configuration | Male Connector |
| Tube Size | 5/16" (8mm) |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 13 mm |
| Internal Hex Size | .19 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
