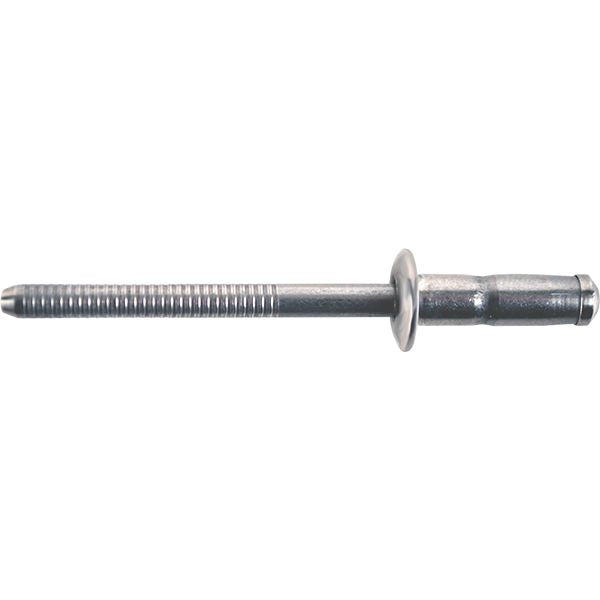

Rivinox® Rear-Flange Rivet, Dome Head, Stainless Steel, 1/8" Diameter, 0.118 to 0.197" Grip Range
(Pack of
100)
SKU:1543605 Item#: 1543605
Dome Head

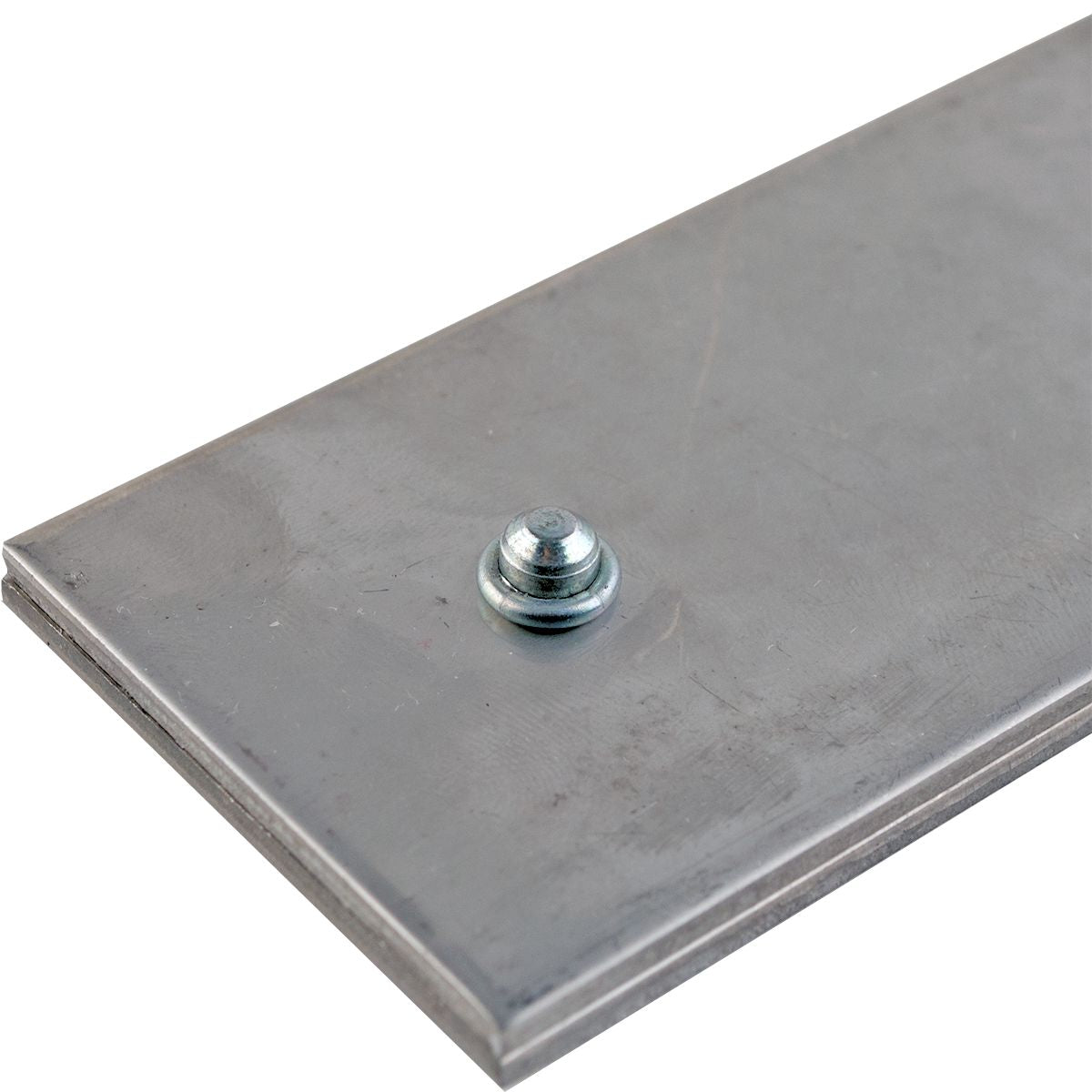

• Provides a rear flange on the back side of the application – perfect for thin sheet metals or plastics where rivet pull-through is of concern
• The mandrel will break nearly flush with the head and is locked to prevent vibration
• 18-8 stainless steel construction provides a corrosion-resistant joint
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 11-115
Frequently Bought Together
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Open End Rivet 120° Countersunk Head Steel 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/4"
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Product Description
Dome Head• Provides a rear flange on the back side of the application – perfect for thin sheet metals or plastics where rivet pull-through is of concern
• The mandrel will break nearly flush with the head and is locked to prevent vibration
• 18-8 stainless steel construction provides a corrosion-resistant joint
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1543605 |
|---|---|
| Type | Rear-Flange |
| Head Style | Dome Head |
| Material Body / Mandrel | Stainless Steel/Stainless Steel |
| Diameter | 1/8 " |
| Grip Range | 0.118 – 0.197 " |
| Hole Size | 0.129 – 0.134 " |
| Head Diameter | 0.250 " |
| Head Height | 0.043 " |
| Body Length | 0.450 " |
| Shear Strength | 719 lb |
| Tensile Strength | 450 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.33 lb |
