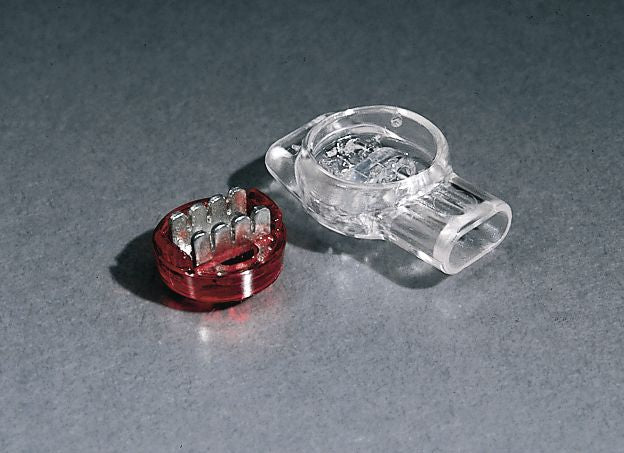

Telcom IDC Discrete Connector 26 to 19 AWG
(Pack of
50.0)
• Filled with a corrosion-resistant sealant that resists moisture to protect the integrity of each connection
• Clear body allows visual inspection of the connection
• Compact design makes high-density wiring easier
• Color-coded translucent caps for fast identification
• The solid, tin-plated copper U-element clamps down on the wire, cuts through the insulation and tightly grips the conductor
• Simple installation
• Provides a gas-tight connection
• Low electrical contact resistance
• Originally designed for the telecommunication industry, these U-element connectors have become very popular in other industries because of their high reliability, compact design and moisture resistance
*Insulation Displacement ConnectorNOTE: While initial tests show these connectors work equally well with stranded wire in these ranges, each application should be tested by the user for suitability.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 22 AWG
Couldn't load pickup availability
IDC Pigtail Connector 22 to 14 AWG
Couldn't load pickup availability
IDC Pigtail Connector 22 to 14 AWG
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Wire Connector Assortment 410Pcs
Couldn't load pickup availability
Sure-Lok Wire Connector 22 to 8 AWG Red
Couldn't load pickup availability
Sure-Lok Wire Connector 22 to 12 AWG Yellow
Couldn't load pickup availability
Machine Screw Slotted Flat Head #8-32 x 1"
Couldn't load pickup availability
Machine Screw Slotted Round Head #10-32 x 1"
Couldn't load pickup availability
DIN 439B Jam Nut A2 Stainless Steel M8-1.25
Couldn't load pickup availability
Product Description
• Filled with a corrosion-resistant sealant that resists moisture to protect the integrity of each connection• Clear body allows visual inspection of the connection
• Compact design makes high-density wiring easier
• Color-coded translucent caps for fast identification
• The solid, tin-plated copper U-element clamps down on the wire, cuts through the insulation and tightly grips the conductor
• Simple installation
• Provides a gas-tight connection
• Low electrical contact resistance
• Originally designed for the telecommunication industry, these U-element connectors have become very popular in other industries because of their high reliability, compact design and moisture resistance
*Insulation Displacement ConnectorNOTE: While initial tests show these connectors work equally well with stranded wire in these ranges, each application should be tested by the user for suitability.
Technical Specifications
| Item#: | 1404663 |
|---|---|
| Style | Telcomm IDC Discrete Connectors |
| Wire Gauge | 26-19 AWG |
| Color | Red/Clear |
| Maximum Insulation O.D. | .082 " |
| Connector Type | 2 or 3 Wire Butt |
| Industry Number | UR2 |
| Length | .67 " |
| Type | Electrical Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
