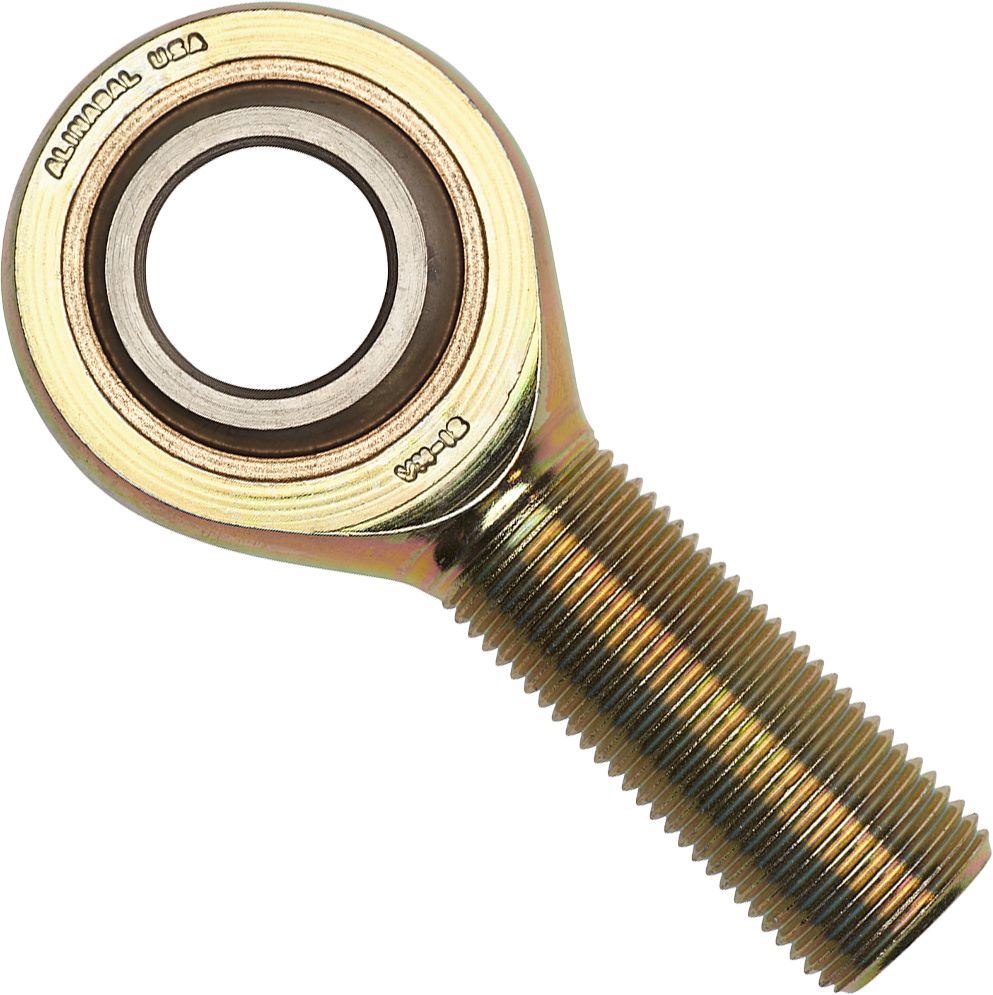

Throttle Ball Joint with Spherical Bearing 3/8-24
(Pack of
1.0)
• Available in both right and left hand threads (studs are right hand threads)
• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 7-22
Frequently Bought Together
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 10-32
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 1/4-28
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 1/4-28
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 7/16-20
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/8-18
Couldn't load pickup availability
Throttle Ball Joint with Spherical Bearing 5/16-24
Couldn't load pickup availability
Product Description
• Available in both right and left hand threads (studs are right hand threads)• Principles of design incorporate high-angle misalignment, oscillation and shock resistance with all tolerances controlled
• New bronze race helps assure reduced frictional wear for longer life
• Will not stiffen when subjected to cold
• UNF threads
• Plated
• Low carbon steel housing
• Male and female threads are the same size
• Low carbon, case-hardened steel balls
• Recommended for all but extremely high load applications
Technical Specifications
| Item#: | 59557 |
|---|---|
| Hole Diameter | .375 " |
| Length of Rod End to Center of Hole | 1.938 " |
| Male Thread | 3/8-24 |
| Ultimate (Radial) Static Load Rating | 3,900 lb |
| Thread | Right Hand Threads |
| Plating | Yes |
| A | .375 " |
| B | 1.938 " |
| UNSPSC #: | 25172405 |
| TAA Compliant: | Yes |
| Weight: | 0.12 lb |
