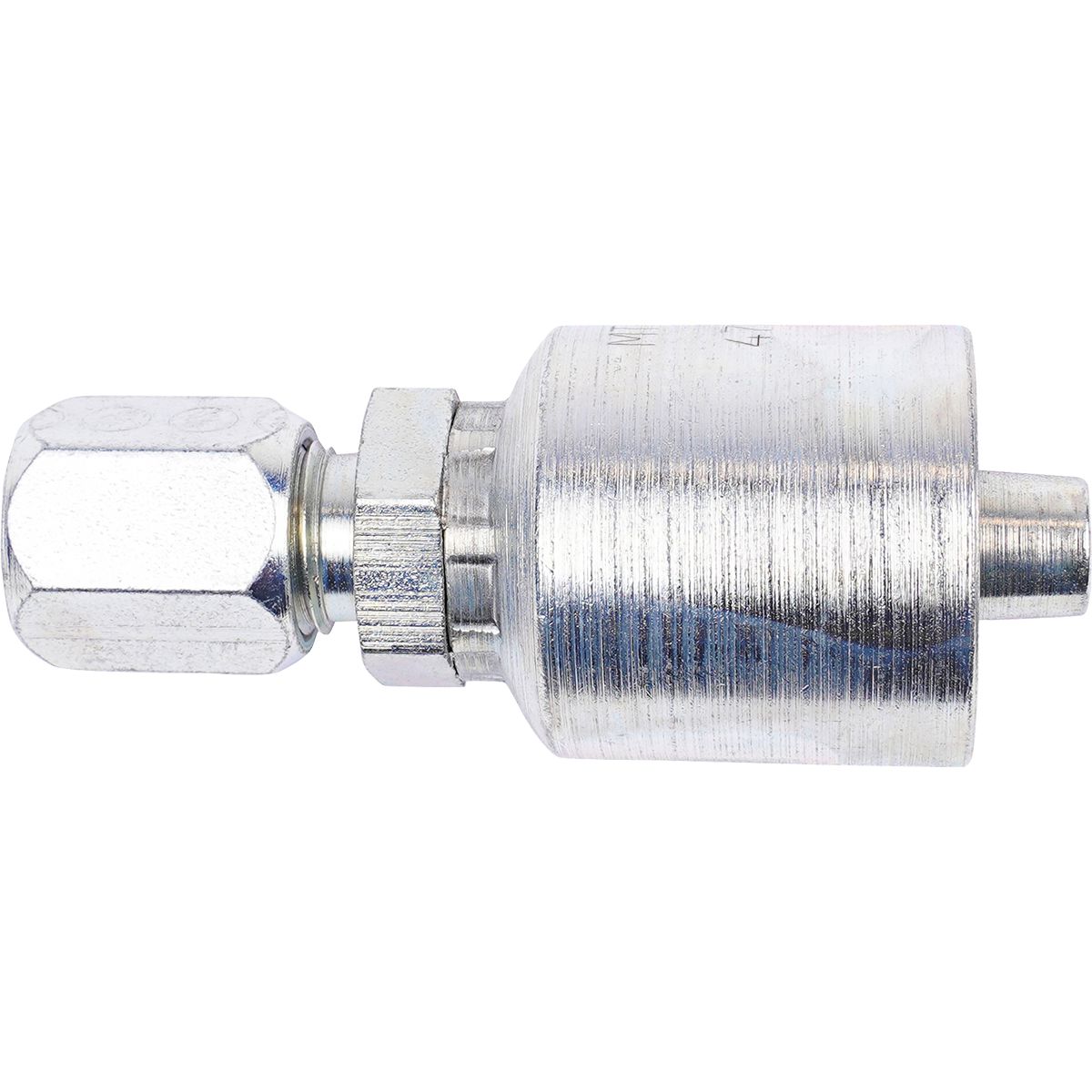

Crimp-On Coupling Flareless Tube Compression 1(-16) x 1–5/16-12(-16)
(Pack of
1)
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
PolarSeal AC Coupler, SAE Tube O-Ring Nut 73320425
Couldn't load pickup availability
4T Series Crimp-On Hose End 1/4" x 1/4-18
Couldn't load pickup availability
4T Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
Couldn't load pickup availability

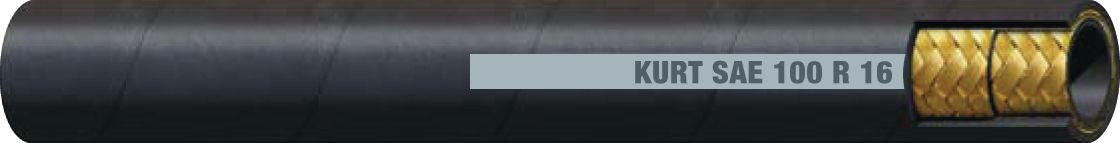

SAE R16S Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability

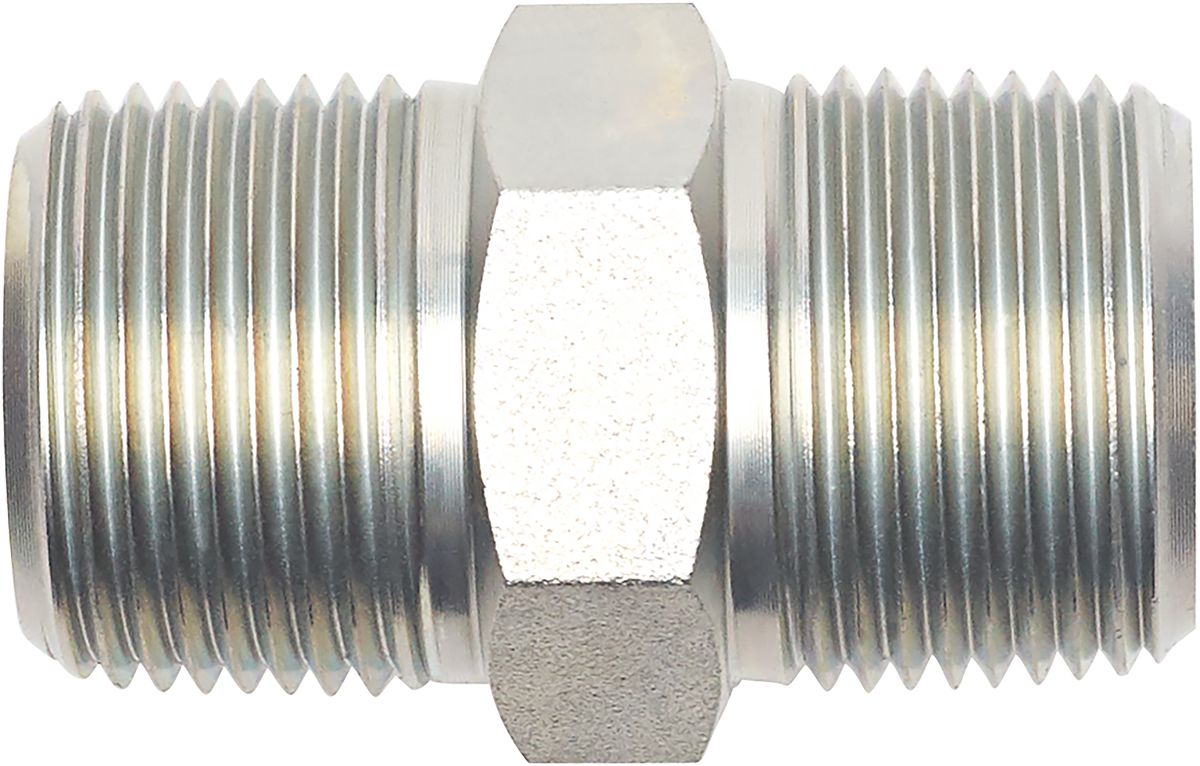

Hydraulic Union 3/8-18 x 3/8-18
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54261541 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Male |
| Fitting End Style | Ermeto 7000 Series Flareless Connectors |
| Fitting End Type | Compression |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-5/16-12 (-16) |
| Fitting Series | W |
| Size | (-16)X(-16) |
| Hex Size | 1-1/2 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 1.06 lb |
