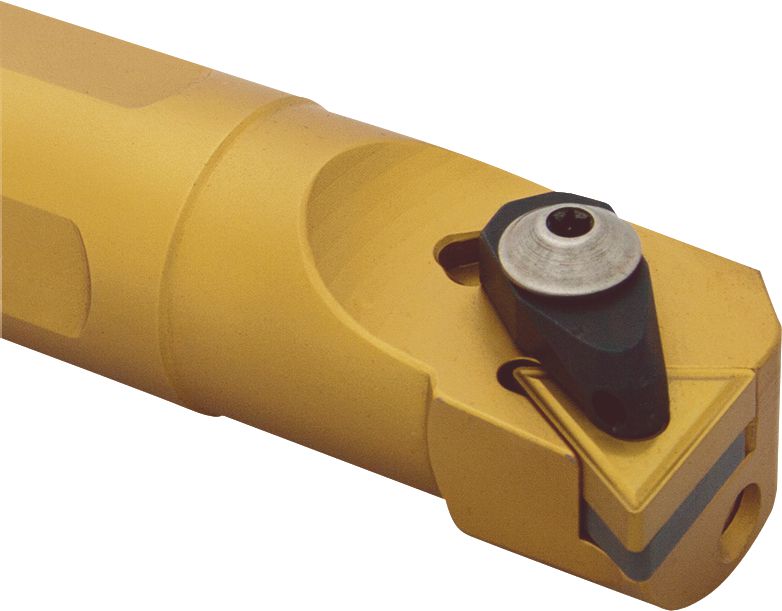

Jet-Stream™ Boring Bar, LH, Style U, Neg 3°, For Negative Triangle Insert
(Pack of
1)
SKU:1353026 Item#: 1353026
Holds TNMG Insert
• Extreme Lubrication at the cutting edge
• Extreme Heat Dissipation at the cutting edge
• Constant Low Cutting Edge Temperature
• Greater Chip Control and Evacuation
• Chip Breaking at High Pressures
• Smooth Cutting Action and Surface Finish
• Increased Speeds and Feeds
• Up to 1400 PSI Coolant Pressure
• Coolant Delivered at Close Range of 1/4 inch
• Insert Life Increased up to 200%
Frequently Bought Together
Rocker Panel Molding Clip Nylon White 12 x 20mm
Item#: P85316
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Item#: KT14285
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Item#: P15599
Couldn't load pickup availability
Product Description
Holds TNMG Insert• Extreme Lubrication at the cutting edge
• Extreme Heat Dissipation at the cutting edge
• Constant Low Cutting Edge Temperature
• Greater Chip Control and Evacuation
• Chip Breaking at High Pressures
• Smooth Cutting Action and Surface Finish
• Increased Speeds and Feeds
• Up to 1400 PSI Coolant Pressure
• Coolant Delivered at Close Range of 1/4 inch
• Insert Life Increased up to 200%

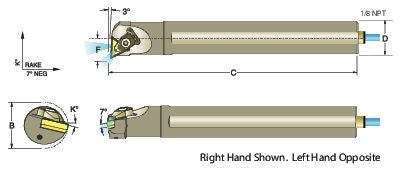

Technical Specifications
| Item#: | 1353026 |
|---|---|
| Manufacturer Model #: | AS-32T-ADTUNL-4 |
| Type | Boring Bar |
| Style | Style U |
| Direction | Left Hand |
| Coolant Feed | Yes |
| B | 2.000 " |
| C | 12.00 " |
| D | 2.00 " |
| F | 1.281 " |
| K | 12º " |
| Insert | TNM |
| UNSPSC #: | 27111701 |
| TAA Compliant: | Yes |
