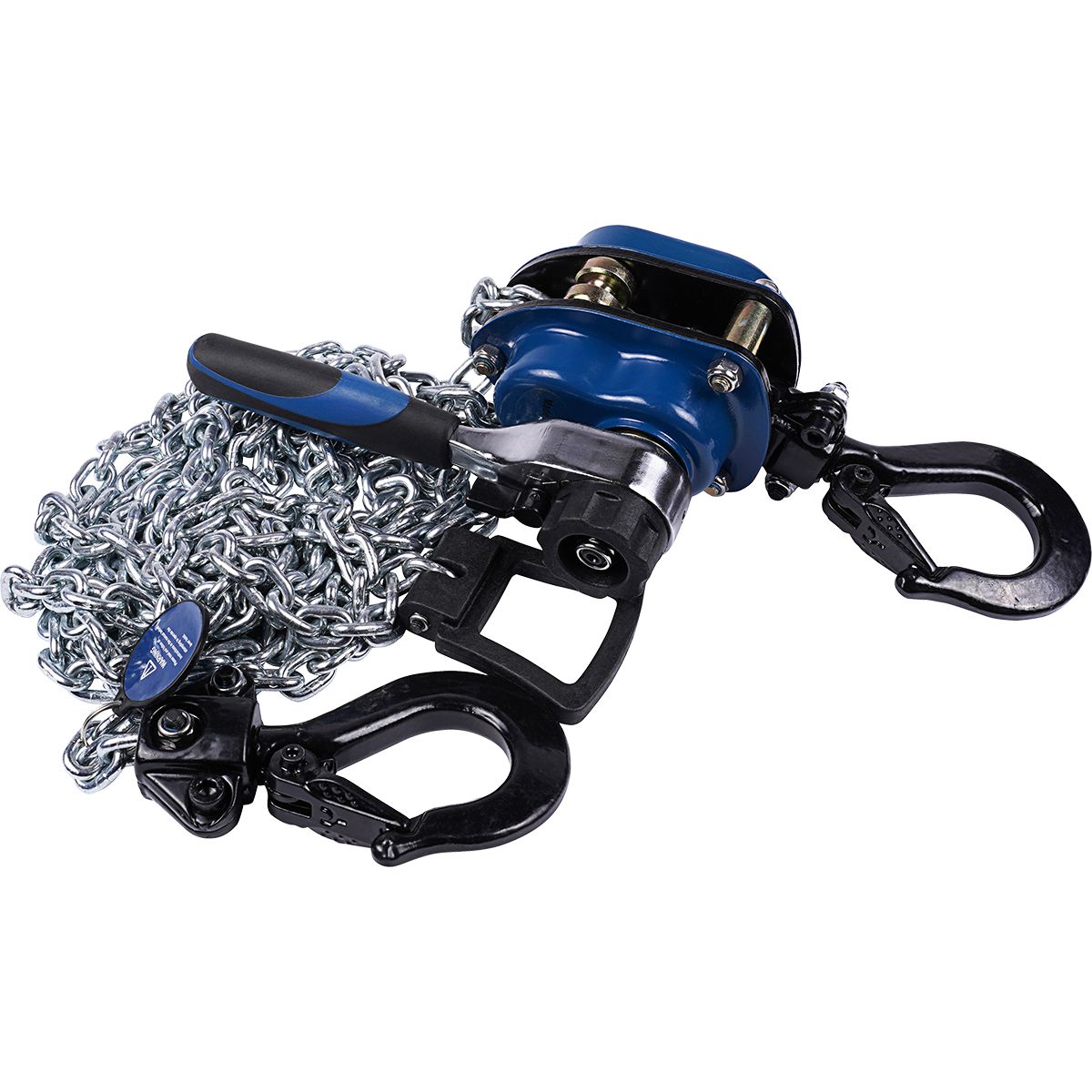

1/2 Ton Mini Lever-Action Hoist 1000 Lbs X 10' Lift - Double Stage
(Pack of
1)
SKU:DY06590500 Item#: DY06590500
• Heavy-duty construction, but light weight design for all mobile lifting, rigging, and pulling applications performed within the operation guidelines
• Load chain is made of Grade 80 alloy steel and zinc plated to resist wear and corrosion
• Heavy-duty drop forged upper and lower hooks are made from 35CRMO steel, painted for corrosion resistance, and feature spring loaded latches to secure loads
• Small and compact enough for operating in confined spaces
• Ergonomic handle reduces operator hand fatigue and provides a non-slip grip for safe, one-handed operation
• Outer hand wheel allows for tightening or loosening of load chain without having to crank the handle
• Free-chaining feature allows for a quick load attachment
• Stores easily in tool boxes, job boxes, mobile maintenance repair vehicles, ATV’s, golf carts, lockers and tool rooms
• Asbestos free copper fiber brake
• Meets ASME/ANSI B30.21 Standards, CE, TUV and GS Regulatory Approval
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 15' Lift
$0.00
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 5' Lift
$0.00
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 20' Lift
$0.00
Couldn't load pickup availability
1 Ton Hd Manual Trolley
$0.00
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 3/4 Ton, 5' Lift
$0.00
Couldn't load pickup availability
Cable Pullers, 1 Ton Capacity
$0.00
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 5' Lift
$0.00
Couldn't load pickup availability
Bandit Ratchet Lever Operated Hoist, 1-1/2 Ton, 20' Lift
$0.00
Couldn't load pickup availability
Series 653 Ratchet Lever Operated Hoist, 1-1/2 Ton, 10' Lift
$0.00
Couldn't load pickup availability
Binder Chain Assembly, 25', 5/16", Carbon Strength Steel, 4700 lbs Limit
$0.00
Couldn't load pickup availability
Binder Chain Assembly, 5/16", Carbon Strength Steel, 4700 lbs Limit
$0.00
Couldn't load pickup availability
Binder Chain Assembly, 5/16", Carbon Strength Steel, 4700 lbs Limit
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
• Heavy-duty construction, but light weight design for all mobile lifting, rigging, and pulling applications performed within the operation guidelines• Load chain is made of Grade 80 alloy steel and zinc plated to resist wear and corrosion
• Heavy-duty drop forged upper and lower hooks are made from 35CRMO steel, painted for corrosion resistance, and feature spring loaded latches to secure loads
• Small and compact enough for operating in confined spaces
• Ergonomic handle reduces operator hand fatigue and provides a non-slip grip for safe, one-handed operation
• Outer hand wheel allows for tightening or loosening of load chain without having to crank the handle
• Free-chaining feature allows for a quick load attachment
• Stores easily in tool boxes, job boxes, mobile maintenance repair vehicles, ATV’s, golf carts, lockers and tool rooms
• Asbestos free copper fiber brake
• Meets ASME/ANSI B30.21 Standards, CE, TUV and GS Regulatory Approval
Technical Specifications
| Item#: | DY06590500 |
|---|---|
| Style | Mini |
| Series | Mini |
| Load Capacity | 1/2 ton (US) |
| Lift | 10 ft |
| Lever Length | 7 " |
| Gear Type | Double Stage Reduction |
| Hook Throat Opening | 1 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | No |
| Weight: | 7.82 lb |
