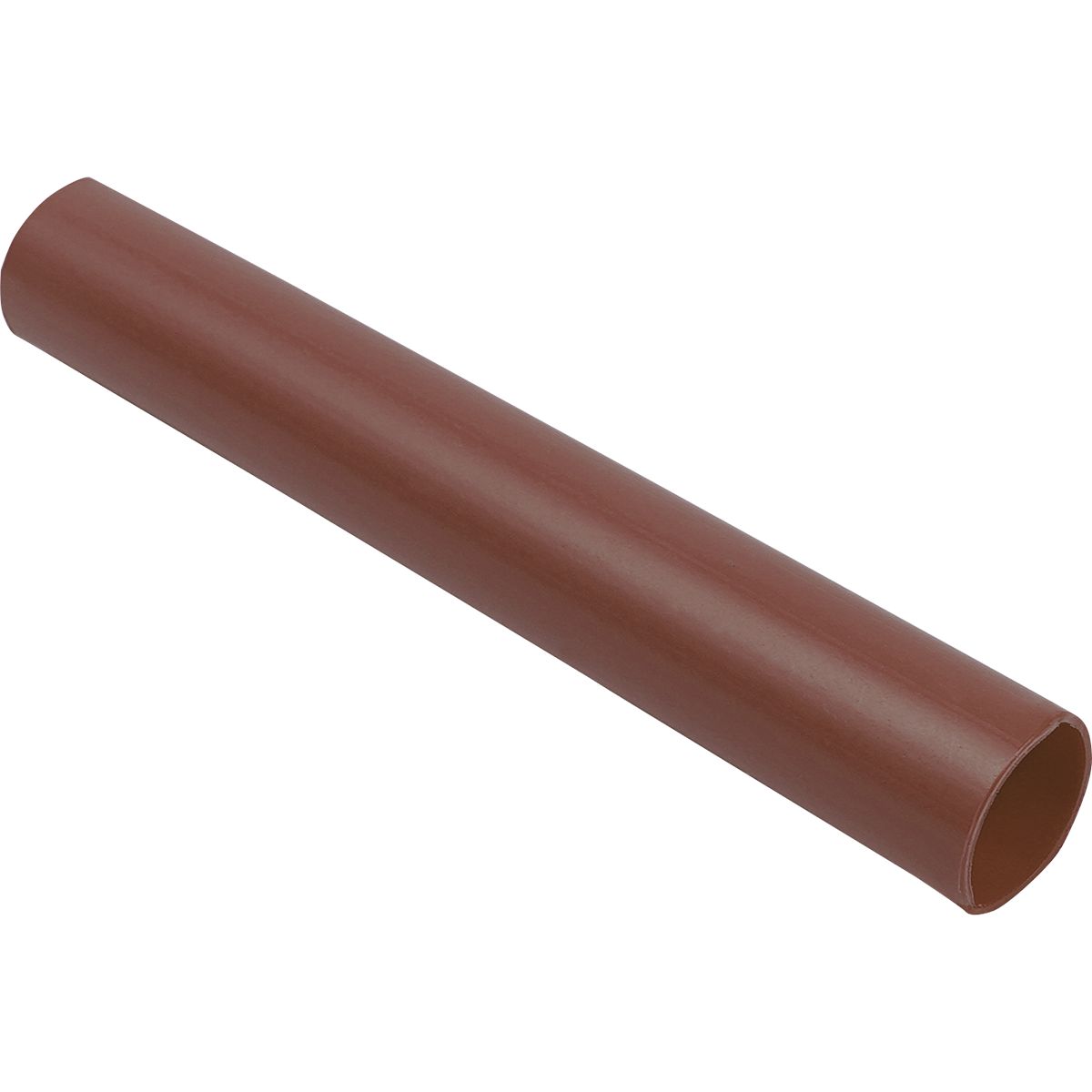

1/8" X 3" Brown Thermapod Sealflex Heat Shrink Tube
(Pack of
10.0)
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Couldn't load pickup availability
Frequently Bought Together
Color-Coded Nylon Cable Tie 8" Yellow
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Heat Shrink Tubing 24 to 22 AWG Clear
Couldn't load pickup availability
1/4-1/8X1-1/4" Black Heat Shrink End Cap
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Black
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Super 88 Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Snap Bushing Nylon Black 2-15/32"
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip PG-9
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21880002 |
|---|---|
| Style | Dual Wall |
| Wire Gauge Coverage | 22-20 AWG |
| Diameter | 1/8 " |
| Length | 3 " |
| Color | Brown |
| I.D. Before Shrinkage | 0.125 " |
| I.D. After Shrinkage | 0.023 " |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | AMS-DTL - 23053/4, CL-1, UL E194625 |
| Description | Thermapod Sealflex Heat Shrink Tubing 1/8 x 3 Brown |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.015 lb |
