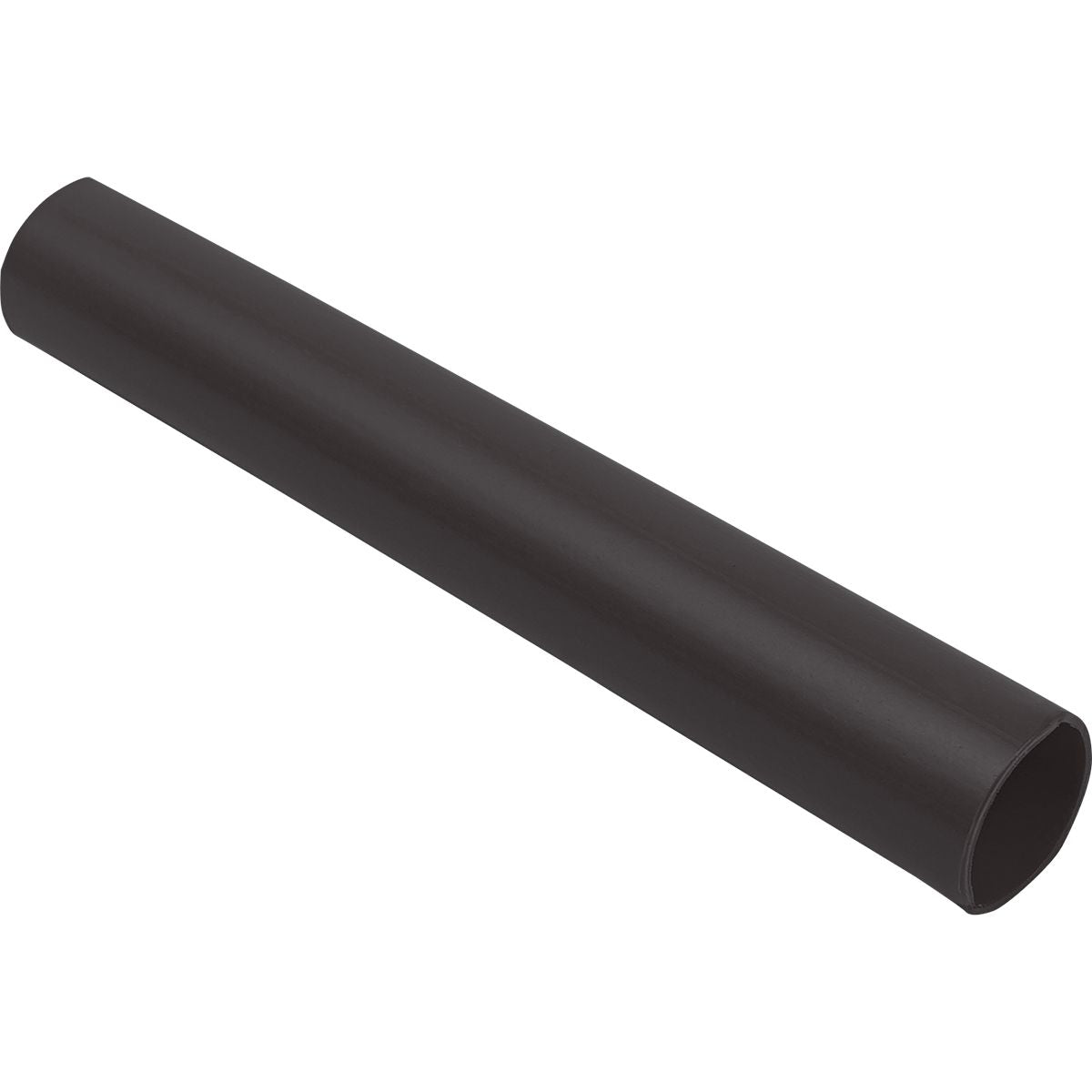

1 x 3" Black Thermapod Heat Shrink Tube
(Pack of
10)
SKU:DY21873749 Item#: DY21873749
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Butt Connector 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 32CP
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 18 to 16 AWG Black
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Black
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Black
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Flexi-Finish Plastics 2-Part Epoxy
$0.00
Couldn't load pickup availability
Plastic Bond
$0.00
Couldn't load pickup availability
Hinge Pin and Bushing Kit 4 Items 7Pcs
$0.00
Couldn't load pickup availability
Flexi-Finish Plastics 2-Part Epoxy
$0.00
Couldn't load pickup availability
Plastic Bond
$0.00
Couldn't load pickup availability
Hinge Pin and Bushing Kit 4 Items 7Pcs
$0.00
Couldn't load pickup availability
Vinyl Electrical Tape Yellow 3/4" x 66'
$0.00
Couldn't load pickup availability
Insulform Heat Shrink Tubing 6 to 2/0 AWG Black
$0.00
Couldn't load pickup availability
Insulform Heat Shrink Tubing 12 to 8 AWG Black
$0.00
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Almost any heat source will convert the Thermapod™ into a moisture-resistant, tailor-fit covering for wire connection
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• When the two layers cool, they become a semi rigid, protective “pod” that seals the wiring from the environment
• Improved encapsulation and strain damage from flexing
• Temperature Rating: -67°F to +230°F (-55°C to +110°C)
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21873749 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 4/0- 3/0 AWG |
| Diameter | 1 " |
| Length | 3 " |
| Color | Black |
| I.D. Before Shrinkage | 1 " |
| I.D. After Shrinkage | 0.4 " |
| Shrink Ratio | 3:1 |
| Dielectric Strength | 500 V/mil |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | SAE-AMS-DTL - 23053/4, CL-1 |
| Description | Thermapod Heat Shrink Tubing Black 1 x 3" |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.225 lb |
