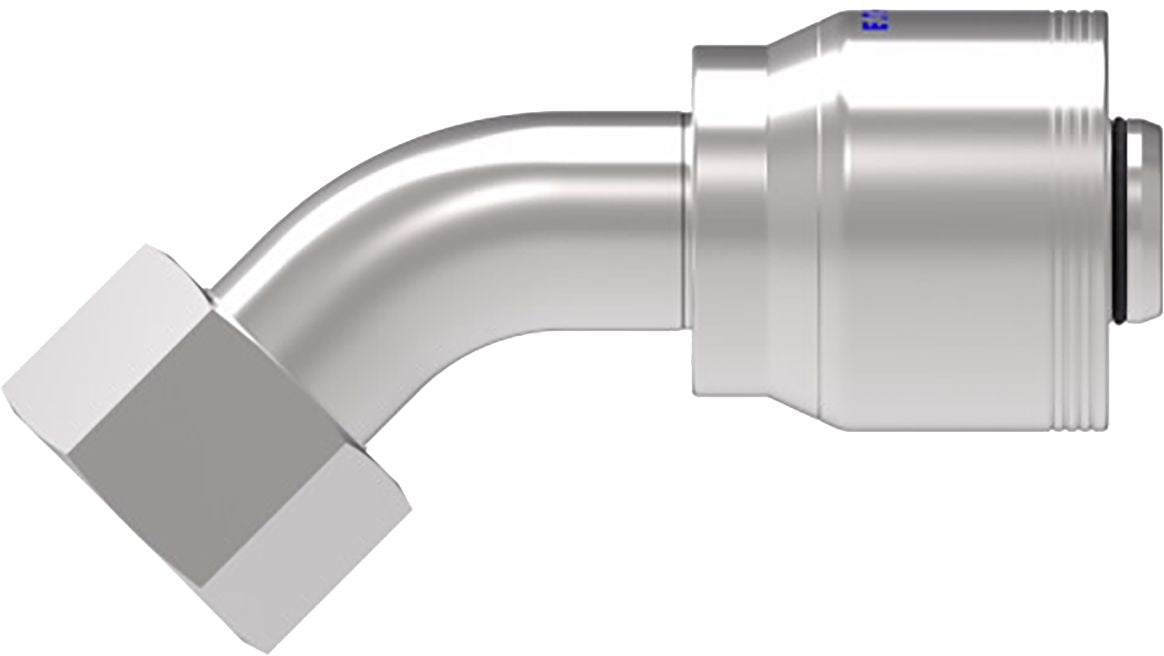

4S Series Crimp-On Elbow, Carbon Steel, Female O-Ring Seal, Swivel 45°, 3/8" (-6) x 13/16-16 (-8)
(Pack of
1)
SKU:1180762 Item#: 1180762
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
06Z-BC46/1A6MCA6 Hose End (perm) 1S/1R 45 D Male STC
Item#: 1184248
$0.00
Couldn't load pickup availability
08Z-BC08/1A8MC8 Hose End (perm) 1S/1R Str Male STC
Item#: 1172748
$0.00
Couldn't load pickup availability
06Z-BC66/1A6MCB6 Hose End (perm) 1S/1R 90 D Male STC
Item#: 1174483
$0.00
Couldn't load pickup availability
Spacer Ring Black
Item#: 1555862
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 0.617 x 0.769"
Item#: KT13010
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 9/16 x 3/32"
Item#: P27055
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Item#: 54542
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11951
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
Item#: P28920M01
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Item#: P27685
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Item#: P85437
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1180762 |
|---|---|
| Manufacturer Model #: | 4SA8FRA6 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/8 (-6) " |
| Dash Size | -6 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 13/16-16 (-8) |
| Weatherhead No. | 4SA8FRA6 |
| Size | (-6)X(-8) |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 0.24 lb |
