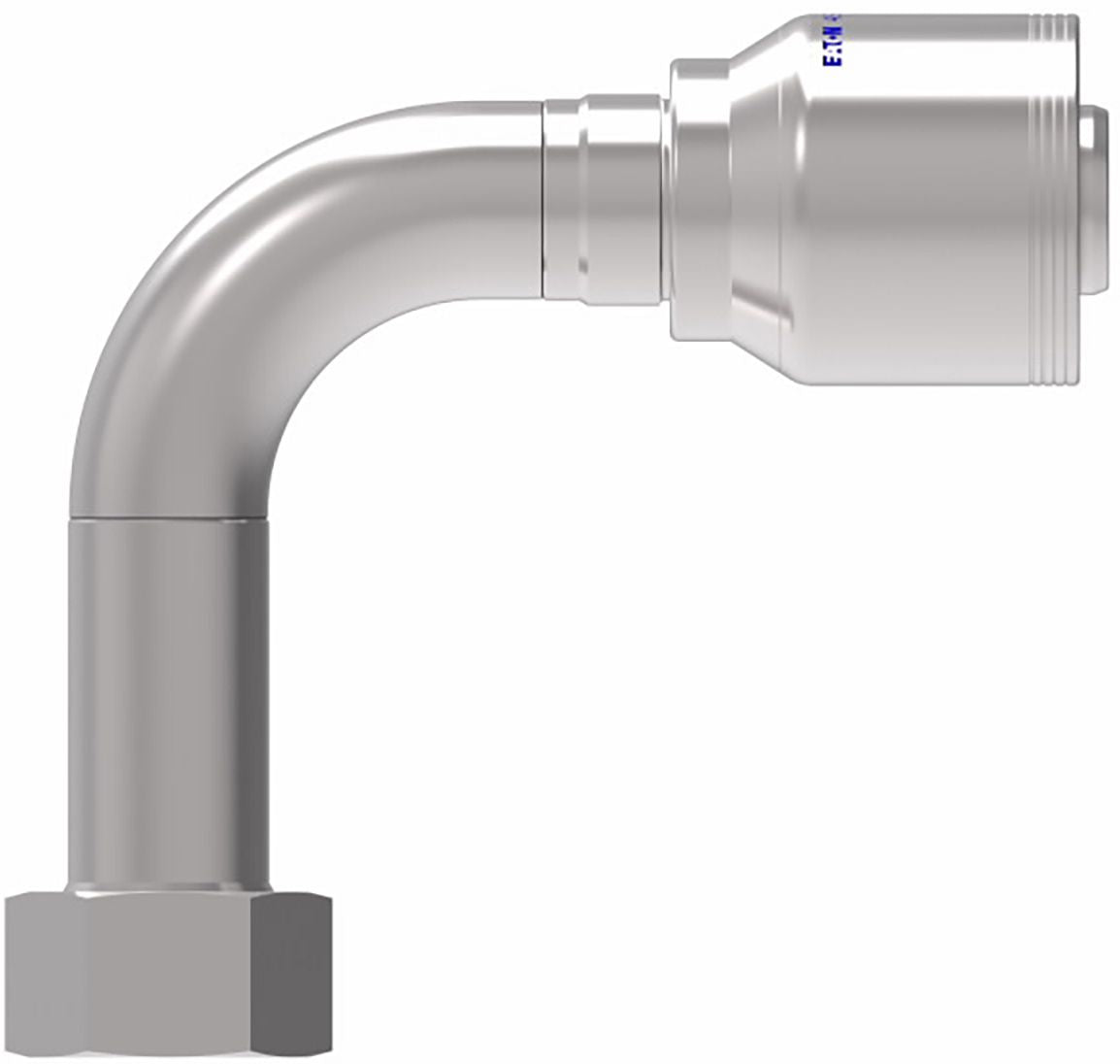

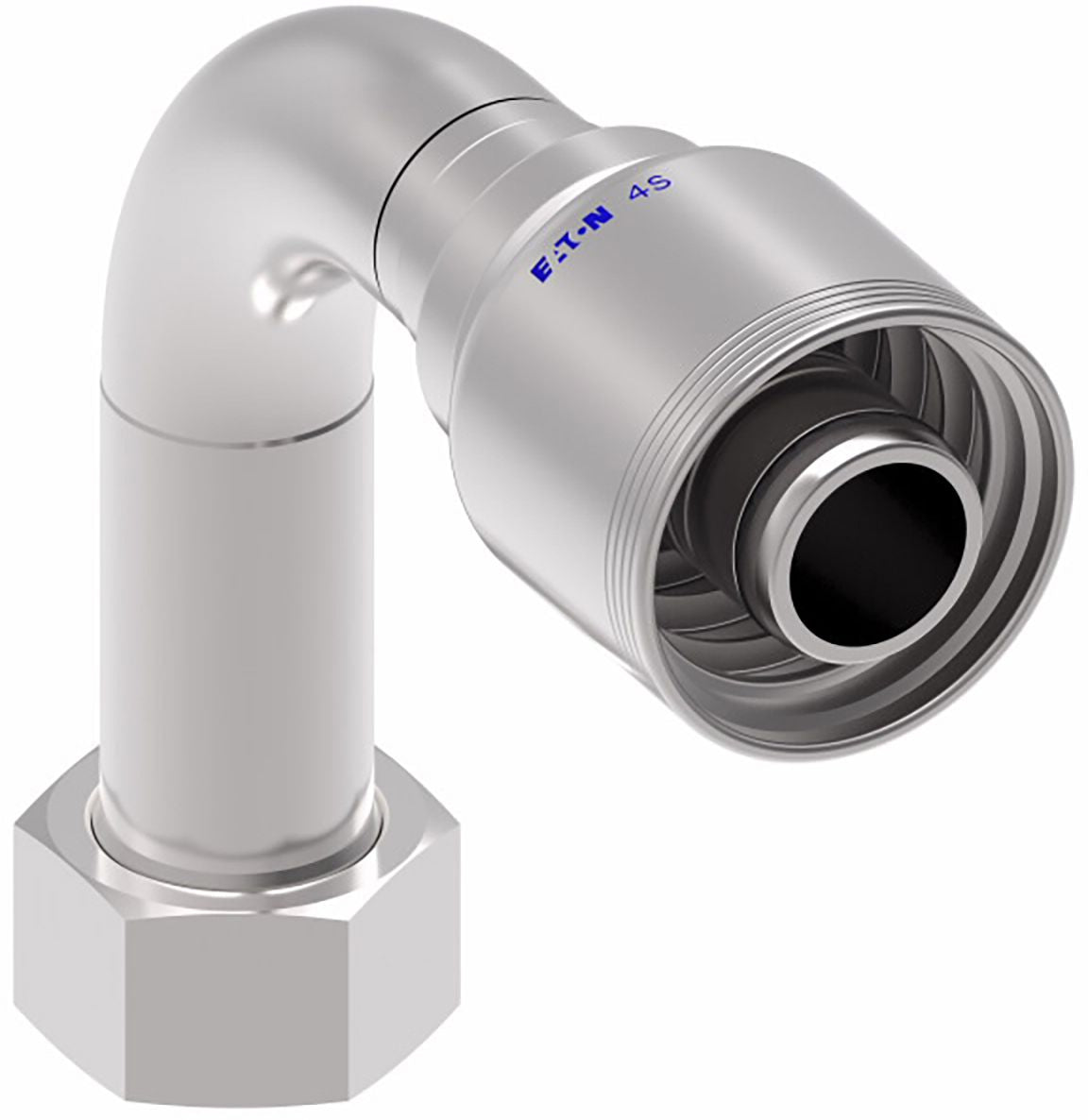

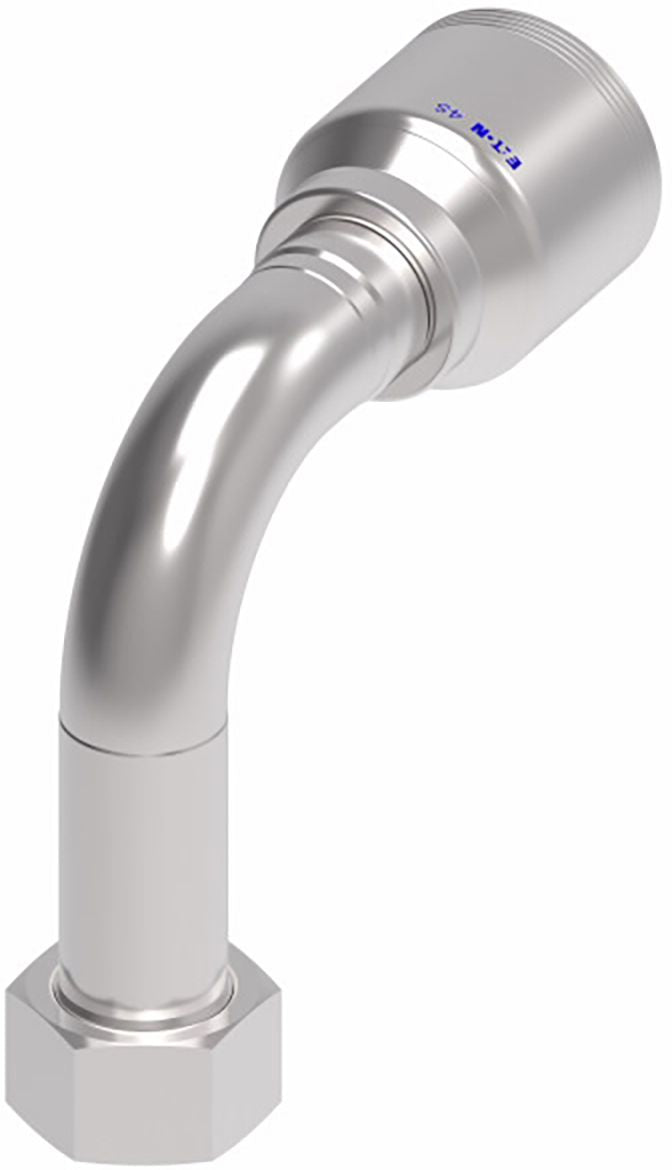

4S Series Crimp-On Elbow, Carbon Steel, Long Drop, Female O-Ring Seal Swivel 90°, 1-1/4" (-20) x 1-11/16-12 (-20)
(Pack of
1)
SKU:1543042 Item#: 1543042
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, Ferrule 736251345
$0.00
Couldn't load pickup availability
R12 Ferrules, Ferrule 733471315
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
$0.00
Couldn't load pickup availability
Hydraulic Union 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Hydraulic Union 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
$0.00
Couldn't load pickup availability
Quick Seal 2000 Sprayable Seam Sealer Gray
$0.00
Couldn't load pickup availability
Adhesive-Back Shim Stock 5/16 x 1" x 30'
$0.00
Couldn't load pickup availability
Adhesive-Back Shim Stock 9/16 x 1" x 30'
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543042 |
|---|---|
| Manufacturer Model #: | 4SA20FRC20 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1-1/4 (-20) " |
| Dash Size | -20 |
| Gender | Female |
| Fitting End Type | Rigid |
| Fitting Angle | 90 ° |
| Fitting Drop Length | 5.08 " |
| Fitting Dimension B (Working End) | 1-11/16-12 (-20) |
| Weatherhead No. | 4SA20FRC20 |
| SAE Code | J1176 |
| Hex Size | 1.875 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 3.85 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 2.83 lb |
