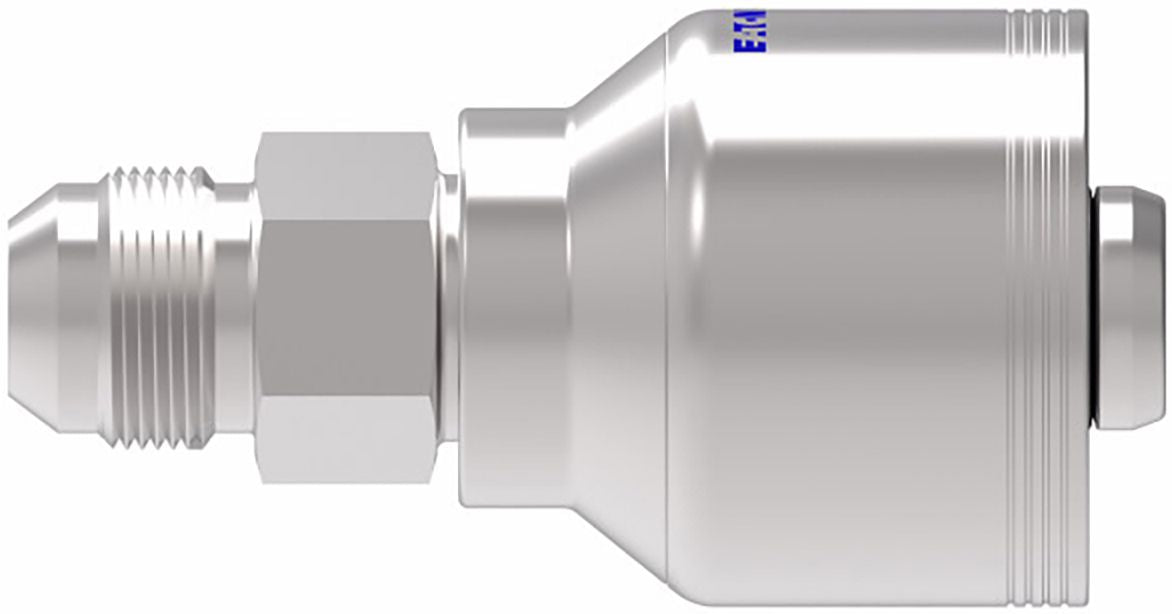

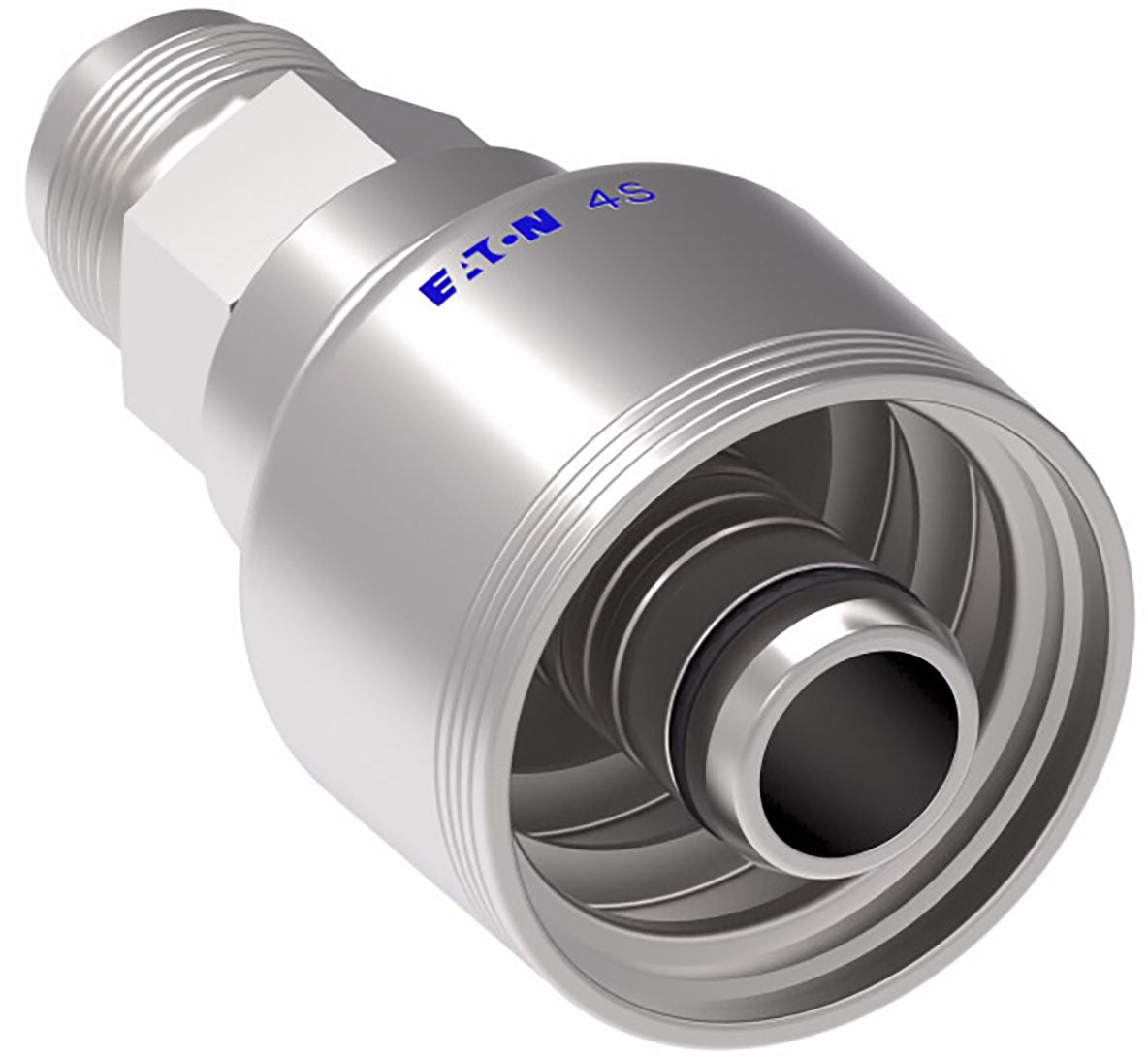

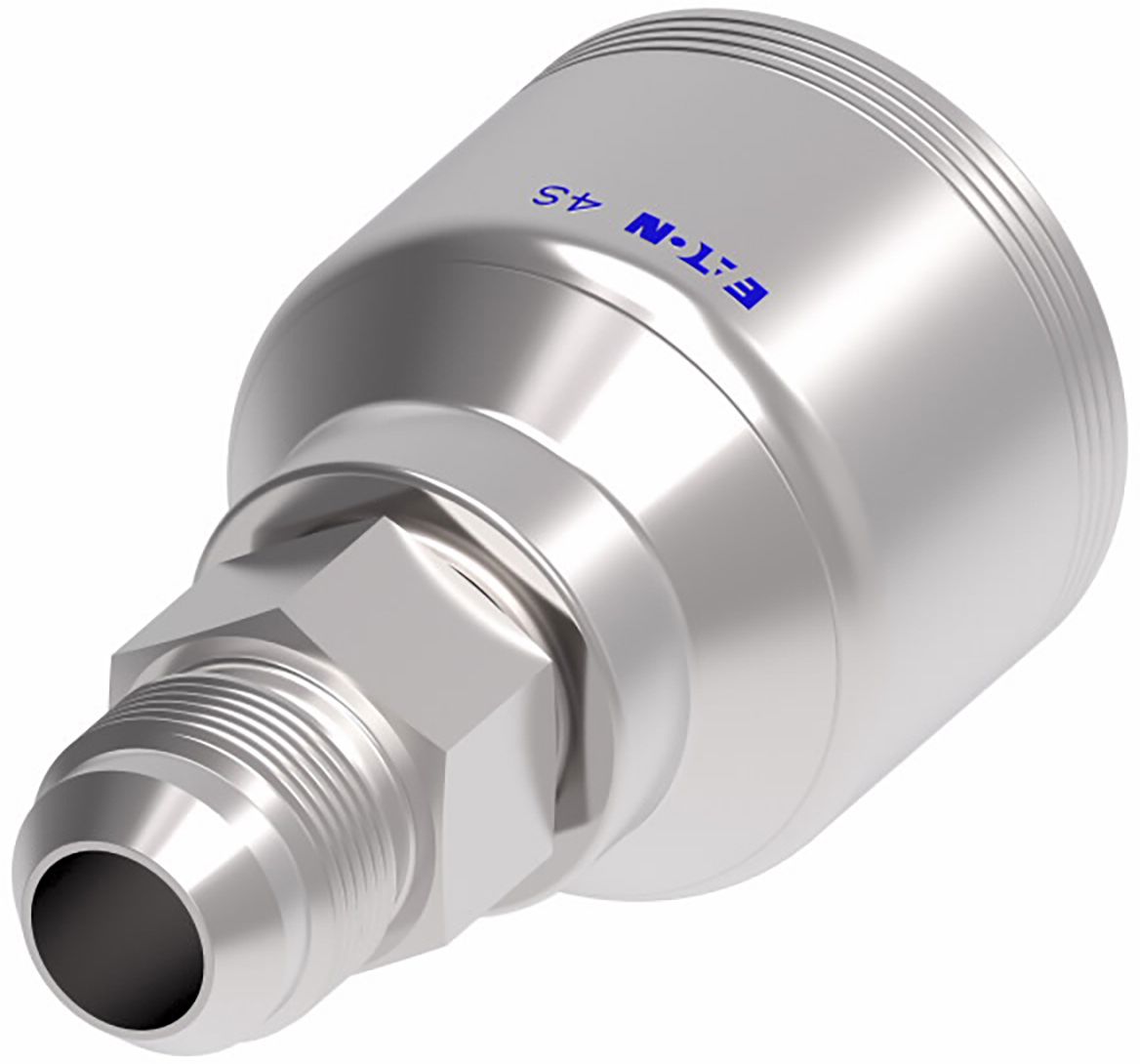

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Male Rigid JIC 37°, 3/4 (-12) x 1-1/16-12 (-12)
(Pack of
2)
SKU:1543045 Item#: 1543045
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
$0.00
Couldn't load pickup availability
RYCO RY16 Mini Crimper Crimp Die Set, Crimp Range 0.551-0.630 Inch
$0.00
Couldn't load pickup availability
Spacer Ring Black/White
$0.00
Couldn't load pickup availability
Industrial O-Ring Buna-N 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543045 |
|---|---|
| Manufacturer Model #: | 4SA12MJ12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Male |
| Fitting End Type | JIC 37 |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-1/16-12 (-12) |
| Weatherhead No. | 4SA12MJ12 |
| SAE Code | J1176 |
| Hex Size | 1.125 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 2 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.44 lb |
