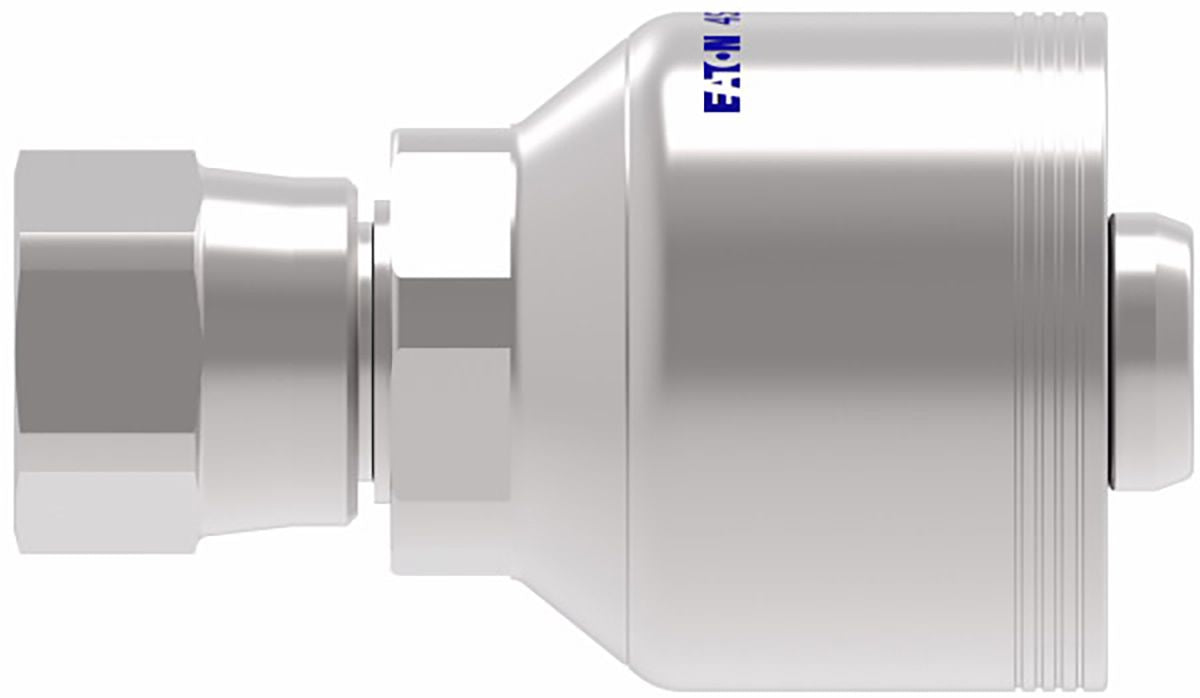

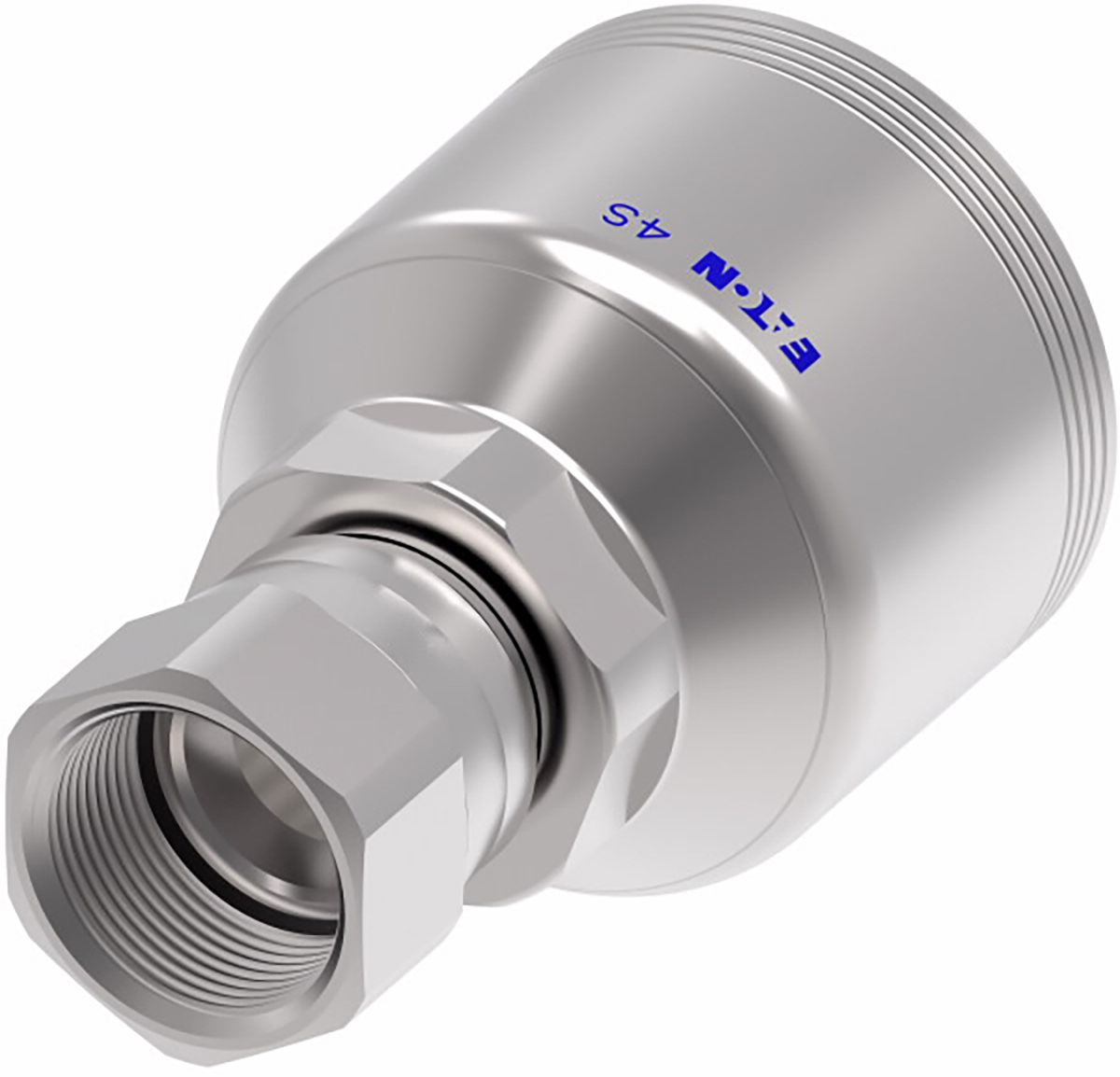

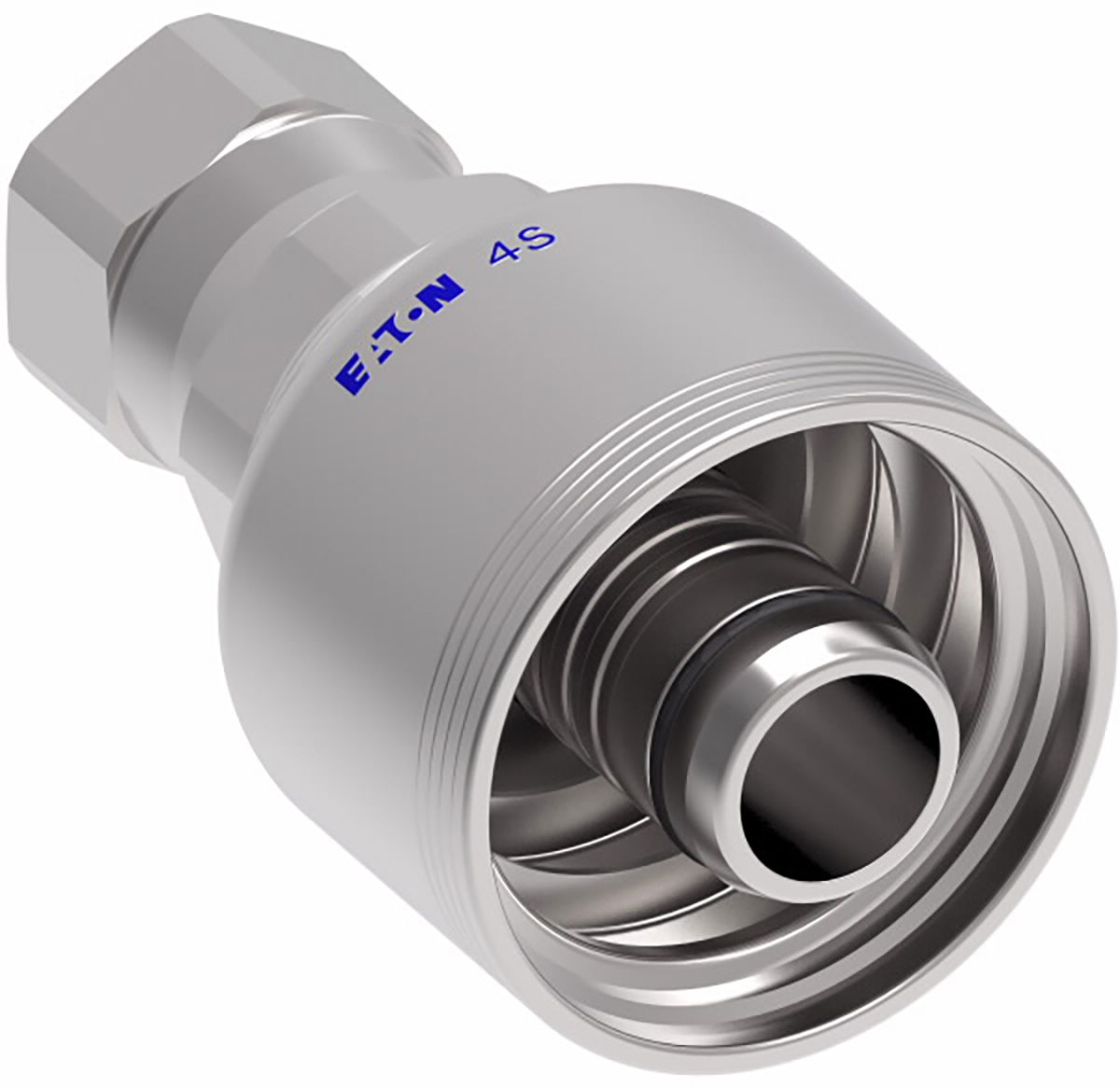

4S Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Swivel JIC 37°, 3/4 (-12) x 1-5/16-12 (-16)
(Pack of
2)
SKU:1543126 Item#: 1543126
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
Item#: 1644518
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
Item#: 1644512
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
Item#: 1644600
$0.00
Couldn't load pickup availability
Spacer Ring Yellow/White
Item#: 1555835
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.7 x 15.5mm
Item#: KT13016
$0.00
Couldn't load pickup availability
Industrial O-Ring Buna-N 7/8 x 1-1/8 x 1/8"
Item#: 11186 17
$0.00
Couldn't load pickup availability
Master O-Ring Assortment HNBR 33 Items 335Pcs
Item#: KL153
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
Item#: 86728
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 5/8 x 1/2-14
Item#: 27185
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
Item#: 1482003
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Item#: P13770
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
Item#: P18348
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543126 |
|---|---|
| Manufacturer Model #: | 4SA16FJ12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Type | JIC 37 |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-5/16-12 (-16) |
| Weatherhead No. | 4SA16FJ12 |
| SAE Code | J1176 |
| Hex Size | 1.1875 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.73 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 1.53 lb |
