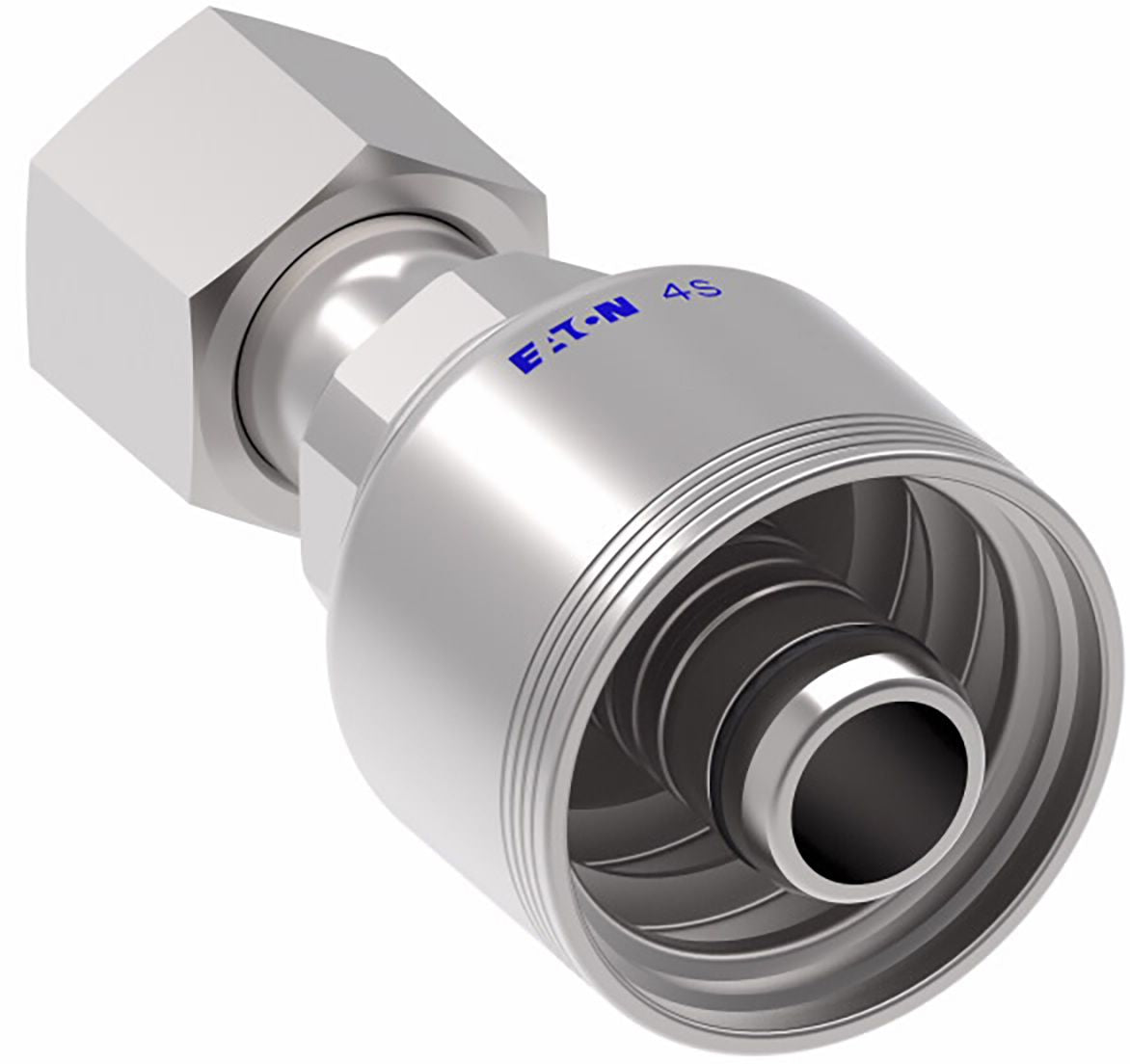

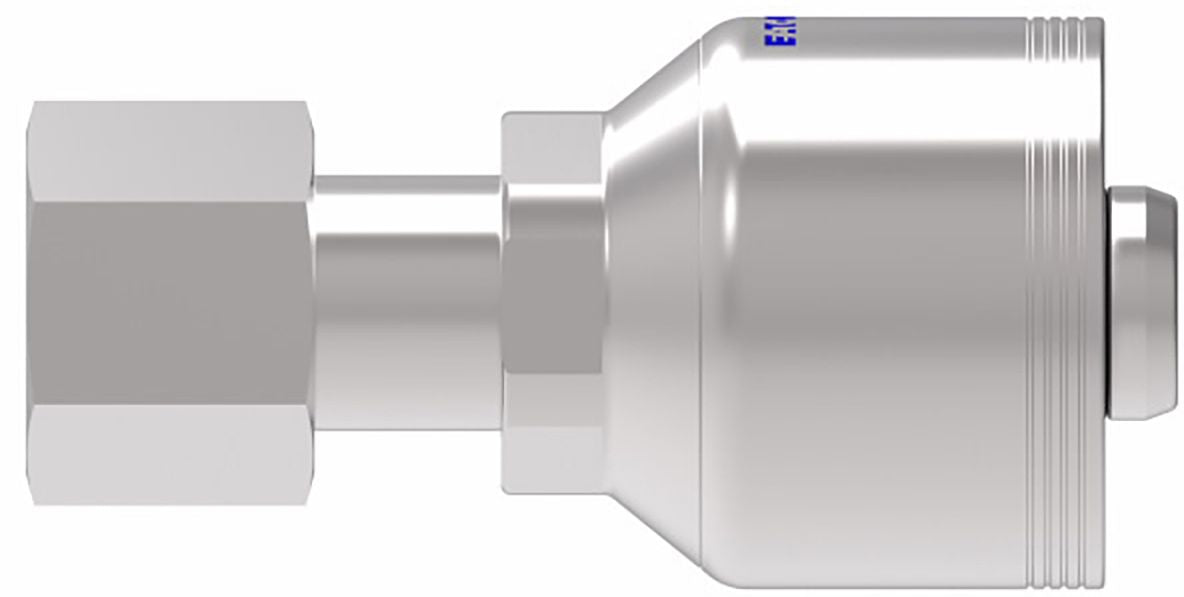

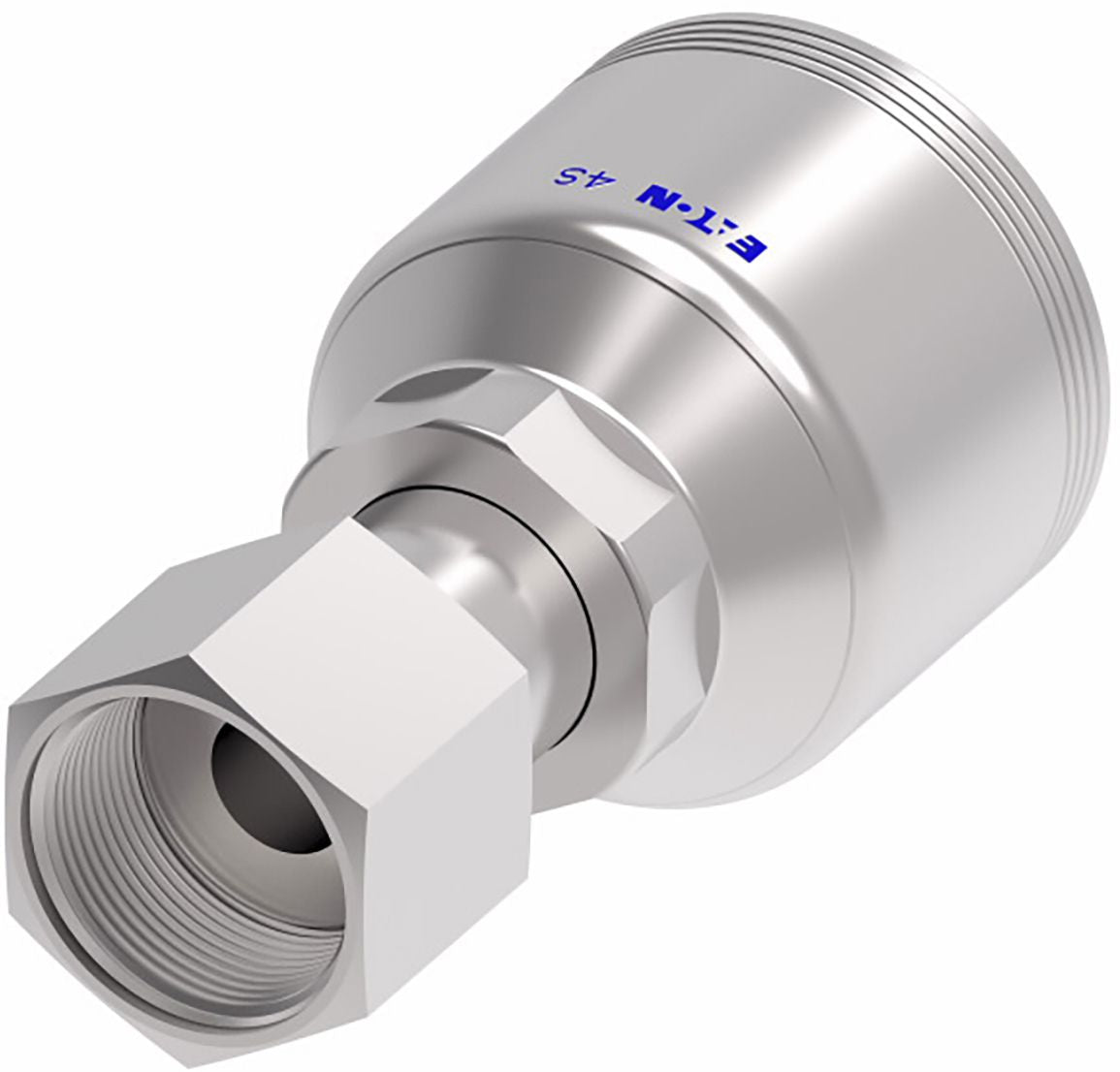

4S Series Crimp-On Hose End Fitting, Carbon Steel, Female Swivel O Ring Seal, Straight, 3/4" (-12) x 1-3/16-12 (-12)
(Pack of
1)
SKU:1543026 Item#: 1543026
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
GlobalSpiral Coupler, JIC 37 Deg Flare 734729245
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 300'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 200'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 1.39" x 200'
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1543026 |
|---|---|
| Manufacturer Model #: | 4SA12FR12 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/4 (-12) " |
| Dash Size | -12 |
| Gender | Female |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1-3/16-12 (-12) |
| Weatherhead No. | 4SA12FR12 |
| SAE Code | J1176 |
| Hex Size | 1.1875 " |
| Material | Carbon Steel |
| Finish | DURA-KOTEᵀᴹ |
| Hose Cut Off Factor | 1.62 " |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 0.79 lb |
